Take Up Section - BCN1 SINGLE BELT CONVEYOR with BELT 12" WIDE




SKU Details

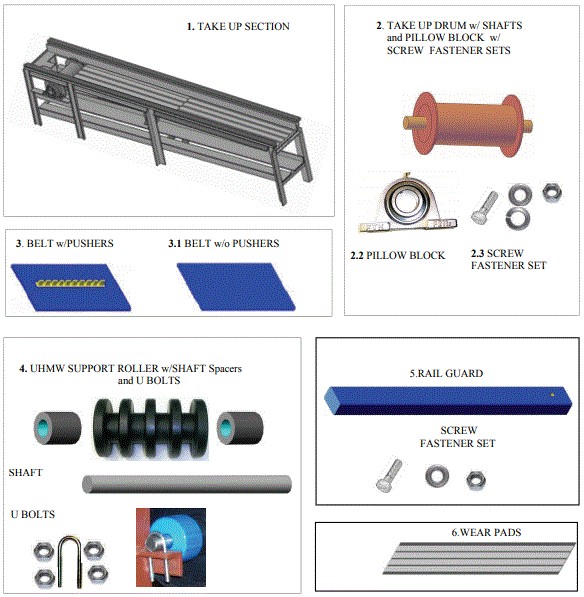

Sku Images Part# Description Diagram Part # Quantity
BCN1AA TAKE UP SECTION -FRAME 1 1
BCN1A TAKE UP SECTION Includes All Components (Take Up Drum, Pillow Blocks, Support Rollers, Belt etc..) 1.1 1
BCN1AD Take-Up Drum / Pulley, 12" Single Belt) 2 2
WA1WB PILLOW BLOCK 2” 2.2 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 16

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 16

SLW12 Split Lock Washer 1/2” 16

BCN1EWP BELT w/ PUSHERS 3 n
BCN1ENP BELT w/o PUSHERS 3.1 n
BCN3RU UHMW SUPPORT ROLLER ASSEMBLY for DRIVER Side 4 1

BCN3RU1 UHMW ROLLER SUPORT 4.1 2

BCN3RU4 UHMW SPACERS ¾”O.D.x1-1/2” I.D. x3/8”LG 4.2 3

BCN3RU3 UHMW SPACERS ¾”O.D.x1-1/2” I.D. x3-1/2”LG 4.3 2
BCN3RU2 SHAFT 3/4’’x16’’ LG for UHMW Support Rollers 4.4 1

UB- RO25X075X225 ROUND U BOLTS , ¼”x3/4”x2-1/4” 4.5 2
CN11-0807 UHMW BAR 1”x2’ x10’ Lg 5 24
CBS1420150 Carriage Bolt Screws 1/4“-20x1½ ”lg.

FW14 1/4" FLAT WASHER

HN1420 Hex nut ¼ ”-20

BCN1CAA Wear Pad, 12" Single Belt, 60" Section, 6 10
