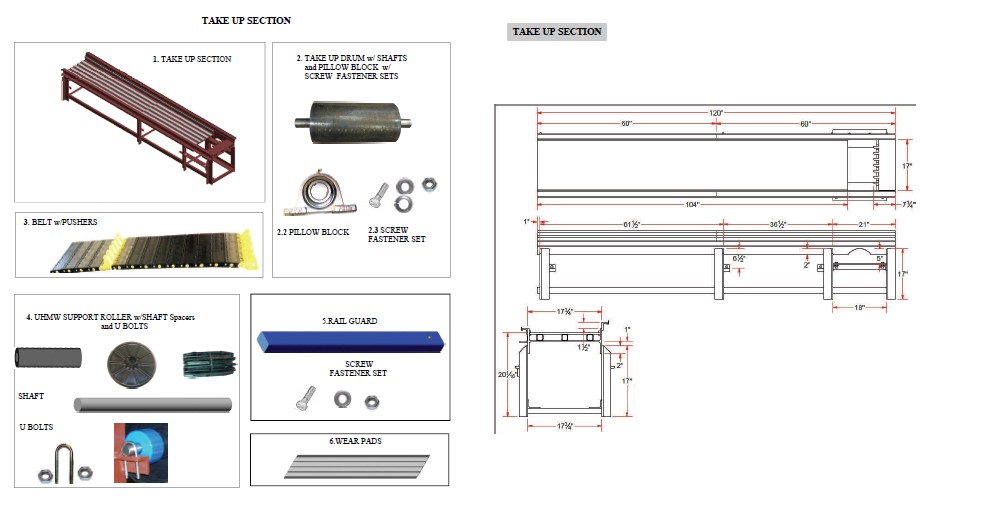

SINGLE BELT CONVEYOR with BELT 16" WIDE - BCN16 : TAKE UP SECTION




SKU Details



Sku Images Part# Description Diagram Part # Quantity
BCN16AA TAKE UP SECTION -FRAME 1 1
BCN16A TAKE UP SECTION Includes All Components 1.1 1
BCN16AD TAKE UP DRUM ASSEMBLY: 2 2
WA1WB PILLOW BLOCK 2” 2.2 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 16

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 16

SLW12 Split Lock Washer 1/2” 16

BCN16EWP BELT w/ PUSHERS 3 n
BCN16ENP BELT w/o PUSHERS 3.1 n
BCN1RU UHMW SUPPORT ROLLER 4 1
BCN1RU1 UHMW ROLLER SUPPORT 4.1 2
BCN3QU3 UHMW SPACERS ¾”O.D.x1-1/2” I.D. x3”lg 4.2 3
BCN1RU3 UHMW SPACERS ¾”O.D.x1-1/2” I.D. x3”lg 4.3 2
BCN1RU2 SHAFT 3/4’’x16 1/2” LG for UHMW Support Rollers 4.4 1
UB- RO25X075X225 ROUND U BOLTS , ¼”x3/4”x2-1/4” 4.5 2
HN1420 Hex nut ¼ ”-20

CN11-0807 UHMW BAR 1”x2’ x10’ Lg 5 24
CBS1420150 Carriage Bolt Screws 1/4“-20x1½ ”lg.

FW14 1/4" FLAT WASHER

HN1420 Hex Nuts 1/4“-20

BCN1CAA Wear Pad, 12" Single Belt, 60" Section, 6 10
