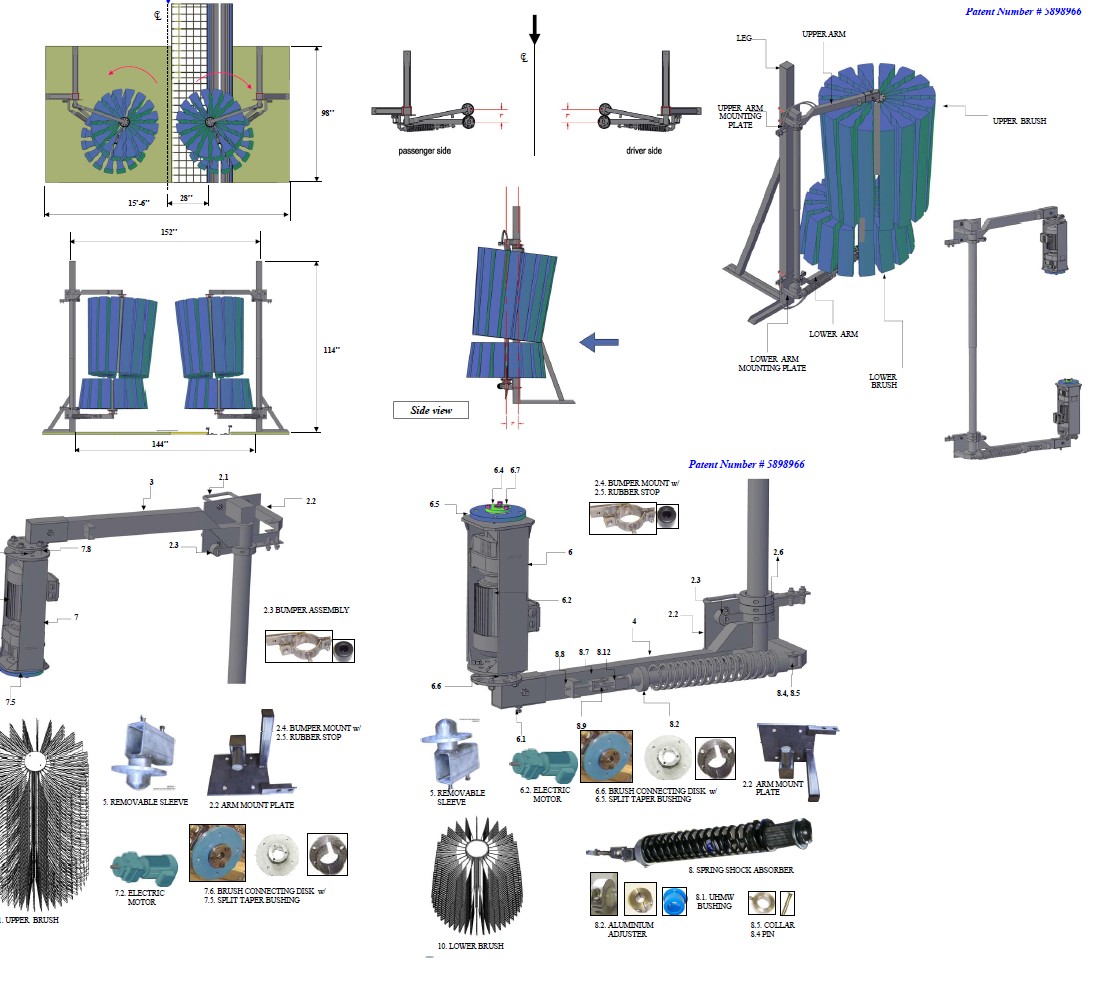

ELECTRIC CONTOUR BRUSH - KAADY Style, Model CB2-EL : DRIVER SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| CB1A-EL | CONTOUR BRUSH SIDE | - | 1 | ||
| WA1A | DRIVER SIDE LEG | 1 | 1 | ||
| CB2AB-U/L | ARM MOUNT ASSEMBLY | 2 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.1 | 2 | ||
|
|
UB-SQ050x1700 | Square U-Bolt 1/2’’x17’’lg | 2 | ||
| SLW1/2 | Split Lock Washer | 4 | |||
| CB1ABA-U/L | ARM MOUNT PLATE | 2.2 | 1 | ||
|
|
CB1AC | BUMPER ASSEMBLY | 2.3 | 1 | |
|
|
CB1ACA | 2-Piece BUMPER MOUNT (w/Plate welded) | 2.4 | 2 | |
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | 2 | |||
| SLW 3/8 | Split Lock Washer 3/8’’ | 2 | |||
| HN3816 | HEX NUTS 3/8’’ | 2 | |||
|
|
WA1DBB | Rubber Bumper | 2.5 | 2 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 2 | |||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 2 | |||
| CB1ACB | ARM ADJUSTING 2-PIECE COLLAR | 2.6 | 1 | ||
| CB2AD | ARM ASSEMBLY (Arms w/Removable sleeves) | - | 2 | ||
| CB2ADA | UPPER ARM w/Distance adjuster | 3 | 1 | ||
|
|
CB1ADCC | BUSHING for Upper Arm | - | 2 | |
| CB2ADB | LOWER ARM w/Distance Adjuster | 4 | 1 | ||
|
|
CB1ADCD | BUSHING for Lower Arm | - | 2 | |
| CB2ADAS | REMOVABLE SLEEVE For Motor Mount | 5 | 2 | ||
| RB1AE-EL | BRUSH DRIVE LOWER ASSEMBLY | - | 1 | ||
| RB1AEA-EL | MOTOR MOUNT ( 20’’ LG) | 6 | 1 | ||
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | 4 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 4 | |||
| TB1ADBM-EL | ELECTRIC MOTOR, 1 1/2” HP, 208 VAC | 6.2 | 1 | ||
| HHCS3816075 | w/Hex Head Screw | 6.3 | 4 | ||
| P1 1 (0106) | (connection of the motor with the motor mount) | 6.4 | 1 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | 2 | |||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 6.5 | 1 | |
| MC2BBA3-P1-0106 | BRUSH CONNECTING DISK | 6.6 | 1 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 4 | |||
| RB2AEA-EL | MOTOR MOUNT ( 20’’ LG ) | 7 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 7.3 | 2 | ||
| THRD1213400 | (connection of the brush with disk): | - | 4 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | - | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 8 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 8.1 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 8.2 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | 1 | |||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | 2 | |||
| HN1420 | Hex nut ¼ ”-20 | 1 | |||
| RB1AFC | Plastic spacer | 8.3 | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 8.4 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | 8.5 | 2 | |
| RB1AG | FRONT MOUNT: | 8.6 | 1 | ||
| WA2GA1 | Clevis | 8.7 | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | 8.8 | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 8.10 | 1 | ||
|
|
RB1AGA | Shock mount | 8.12 | 1 | |
| CB1AM-51-EL | UPPER BRUSH 51” ASSEMBLY: | 9 | 1 | ||
|
|
CB1AMA-51 | Brush Cloth | 9.1 | 1 | |
| CB1AMC-51-EL | Aluminum Extrusion | 9.2 | 2 | ||
|
|
CB1AMB-51 | Two-piece Collar 1½”x12 core | 9.3 | 2 | |
| CB1AM-21 | LOWER BRUSH 21” ASSEMBLY: | 10 | 1 | ||
| CB1AMA-21 | Brush cloth | 10.1 | 1 | ||
| CB1AMC-21-EL | Aluminum Extrusion | 10.2 | 2 | ||
| CB1AMB-21 | Two-piece collar 1½”x12 core | 10.3 | 2 |
