CONTOUR BRUSH [KAADY STYLE], MODEL CB3-EL
![CONTOUR BRUSH [KAADY STYLE], MODEL CB3-EL](https://chicagocarwashbuilder.com/images/product/1622178060CB3-EL.jpg)
The AVW-Kaady Free Standing Contour Brush is constructed of heavy grade Stainless Steel. Designed to thoroughly clean the sides of vehicles through the use contouring adjustment. Van High brush height is ideal for vans and sport utility vehicles because it cleans the sides with smooth even pressure.
Product Features:
- Water: 1?2” NPT Outlet
- Equipment Center Line
- 28” from inside Conveyor Rail
- Electric motors: For contour brushes
- displacement 5.0 cu. in./rev
- (= 1.3GPM at 60RPM)
- (RPM is adjustable)
SKU Details

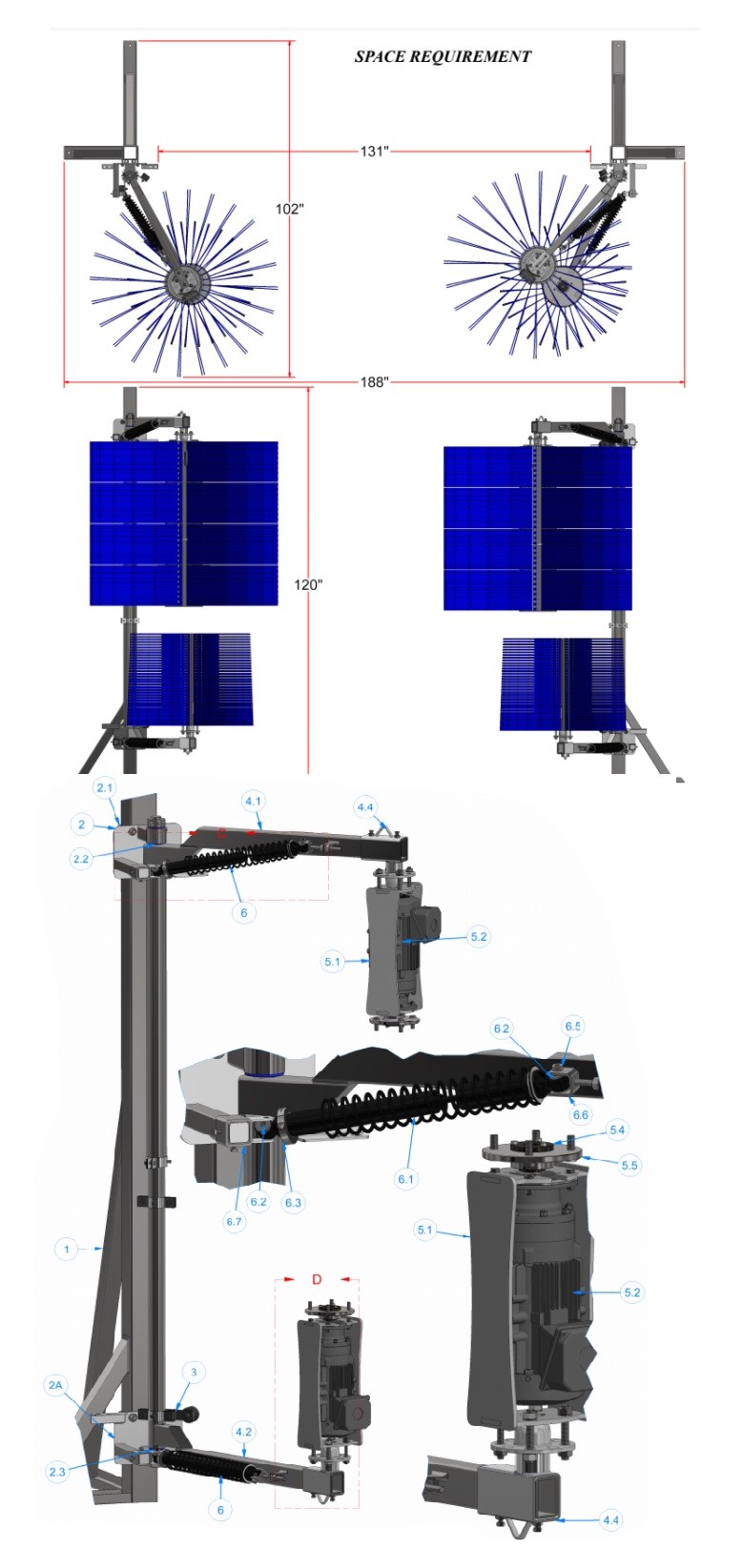

| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| CB1A | CONTOUR BRUSH SIDE | - | 1 | ||
| CB2YA | CONTOUR BRUSH SIDE w/o LEG | - | 1 | ||
| CB1AA | LEG | 1 | 1 | ||
| CB2AB-U/CB2AB-L | ARM MOUNT ASSEMBLY UPPER/LOWER | 2/2A | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.12.1 | 44 | ||
|
|
UB-SQ050x1700 | Square U-Bolt 1/2’’x17’’lg | - | 4 | |
| SLW1/2 | Split Lock Washer | -- | 66 | ||
|
|
CB1ADCC | BUSHING for Upper Arm | 2.22.2 | 22 | |
|
|
CB1ADCD | BUSHING for Lower Arm | 2.32.32.32.3 | 2222 | |
|
|
CB1ABA-U | ARM MOUNT PLATE UPPER | 2.4 | 1 | |
|
|
CB1AC | BUMPER ASSEMBLY | 33 | 22 | |
|
|
CB1ACA | 2-Piece BUMPER MOUNT (w/Plate welded) | 3.13.1 | 22 | |
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | -- | 22 | ||
| SLW 3/8 | Split Lock Washer 3/8’’ | -- | 22 | ||
| HN3816 | HEX NUTS 3/8’’ | ---- | 2222 | ||
|
|
WA1DBB | Rubber Bumper | 3.23.2 | 22 | |
| - | ----- | 22222 | |||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | -- | 22 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | -- | 22 | ||
| CB2AD | ARM ASSEMBLY (Arms w/Removable sleeves) | 4 | 1 | ||
| CB3ADA | UPPER ARM w/Distance adjuster | 4.1 | 1 | ||
| CB3ADB | LOWER ARM w/Distance adjuster | 4.2 | 1 | ||
| CB2ADAS | REMOVABLE SLEEVE For Motor Mount | 4.44.4 | 22 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | 55 | 22 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 5.15.1 | 22 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | -- | 88 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | -- | 88 | ||
|
|
SLW12 | Split Lock Washer 1/2” | ---- | 8888 | |
| GRMTR-1-5HP-75 | ELECTRIC MOTOR , displacement 5.0 [cu.in./rev.] | 5.25.2 | 22 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 5.35.3 | 44 | ||
| HHCS3816075 | w/Hex Head Screw | -- | 88 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | 5.45.4 | 22 | |
| SSS1420050C | SPLIT TAPER BUSHING 1” | -- | 44 | ||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 5.55.5 | 22 | |
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | -- | 88 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | 6.16.1 | 11 | |
| RB1AFA | SPRING SHOCK ABSORBER | 6.26.2 | 11 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 6.36.3 | 22 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | -- | 11 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | -- | 11 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | -- | 22 | ||
| HN1420 | Hex nut ¼ ”-20 | -- | 22 | ||
| RB1AFC | Plastic spacer | 6.46.4 | 11 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 6.56.5 | 22 | ||
|
|
WA1FC | COLLAR 3/8” | 6.66.66.66.6 | 2222 | |
| RB1AG | FRONT MOUNT: | -- | 11 | ||
| WA2GA1 | Clevis | -- | 11 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | -- | 11 | ||
| WA1GB | Pin 3/8”x1½”lg. | -- | 11 | ||
|
|
RB1AGA | Shock mount | 6.76.7 | 11 | |
| RB1ABAM | Moveable Rear Shock Mount | 6.86.8 | 11 | ||
| CB1AM-28/CB1AM-51 | LOWER BRUSH 28” / UPPER 51” ASSEMBLY: | 77 | 11 | ||
| CB1AMA-28/CB1AMA-51 | Brush Cloth | 7.17.1 | 11 | ||
| CB1AMC-28/CB1AMC-51 | Aluminum Extrusion | 7.27.2 | 22 | ||
| CB1AMB-28/CB1AMB-51 | Two-piece Collar 11?2”x12 core | 7.37.3 | 22 | ||
| CB1B | CONTOUR BRUSH SIDE | - | 1 | ||
| CB2YB | CONTOUR BRUSH SIDE w/o LEG | - | 1 | ||
| CB1BA | LEG | 1 | 1 | ||
| CB2BB-U-CB2BB-L | ARM MOUNT ASSEMBLY UPPER/LOWER | 2/2A | 1 | ||
| UB-050x1700 | Square U-Bolt 1/2’’x17’’lg | - | 2 | ||
| CB1BBA-U/CB1BBA-L | ARM MOUNT PLATE UPPER/LOWER | 2.4 | 1 | ||
| CB2BD | ARM ASSEMBLY (Arms w/Removable sleeves) | 4 | 1 | ||
| CB3BDA | UPPER ARM w/Distance adjuster | 4.1 | 1 | ||
| CB3BDB | LOWER ARM w/Distance adjuster | 4.2 | 1 |
