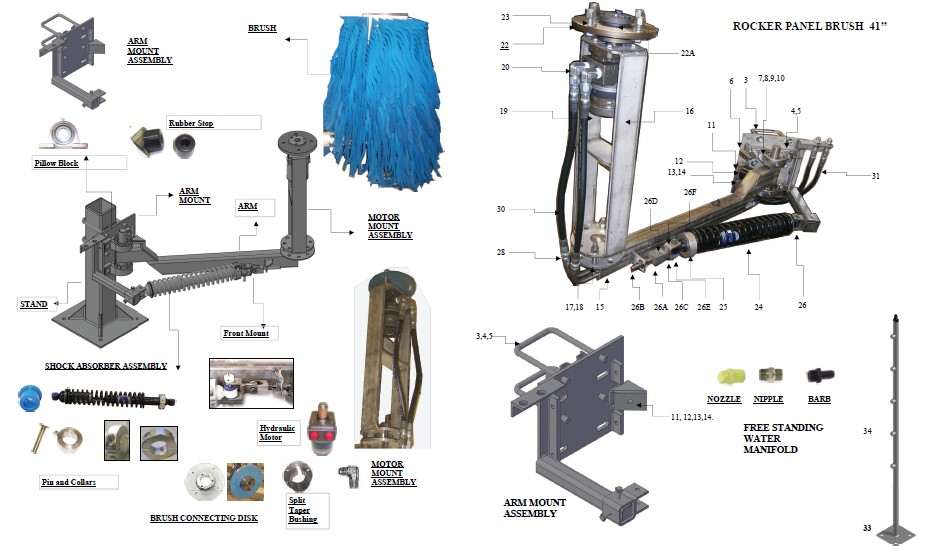

FREE STANDING ROCKER PANEL BRUSH 41’’, Model RB2: PASSENGER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| RB2B | ROCKER PANEL BRUSH SIDE | - | 1 |
|
|
| RB1AA | LEG | 1 | 1 | ||
| RB2BY | ARM ASSEMBLY (w/o LEG, w/) BRUSH) | 1 | |||
|
|
RB2BB | ARM MOUNT ASSEMBLY: | - | 1 | |
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 2 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | 3 | 2 | ||
|
|
SLW12 | Split Lock Washer 1/2” | 4 | 4 | |
|
|
RB1BBA | Arm Mount | 6 | 1 | |
| RB1ABAM | Moveable Rear Shock Mount | - | 1 | ||
| RB1WB | Pillow Block Bearings (Non Capped) | 7 | 2 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | 8 | 4 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 9 | 8 | ||
| RB1BC-0308 | BUMPER ASSEMBLY: | - | 1 | ||
| RB1BCA | Bumper Mount | 11 | 1 |
|
|
| SHCS3816125 | Hex Head Cap Screw 3/8”-16x1¼”lg | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| SQHS3816100 | Square Head Screw 3/8”-16x1”lg. | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | 12 | 1 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | 13 | 1 | ||
| RB1ADx36 | ARM | 15 | 1 | ||
| RB2AE | BRUSH DRIVE UPPER ASSEMBLY | - | 1 | ||
|
|
RB2AEA | MOTOR MOUNT ( 20’’ lg ) | 16 | 1 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | 17 | 4 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 19 | 1 | ||
| EL90STL050JIC050NPTF | Straight Fitting ½” NPTM x ½ ” JIC | 20 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 21 | 4 | ||
| P1 1” (0106) | Split Taper Bushing 1” | 22A | 1 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | 2 | |||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 22 | 1 | |
| MC2BBA3-P1-1-01061 | welded weld-on hub | 1 | |||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 23 | 4 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | - | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 24 | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 25 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | - | 1 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | - | 2 | ||
| HN1420 | Hex nut ¼ ”-20 | - | 2 | ||
| RB1AFC | Plastic spacer | - | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 26 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
| RB1AG | FRONT MOUNT: | - | 1 | ||
| WA2GA1 | Clevis | 26A | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | 26B | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 26D | 1 | ||
|
|
RB1AGA | Shock mount | 26F | 1 | |
| RB1ADB2-0117 | SHOCK FRONT BRACKET | 27 | 1 | ||
|
|
AC2X10 | AIR CYLINDER 2”x10” | - | 1 | |
|
|
WA2GA | FRONT MOUNT: | - | 1 | |
| TB2AGB-1104 | REAR MOUNT for Air Cylinder | - | 1 | ||
| RB2AM | BRUSH 41” ASSEMBLY | - | 1 | ||
| RB2AMA | Brush Cloth | - | 1 | ||
| RB2AMC | Aluminum Extrusion | - | 2 | ||
| RB1AMB | Two-piece Collar 1½”x12 core | - | 2 | ||
| RB2LP | (UPPER BRUSH): | - | 1 | ||
| RB1LPA | Hydraulic Tube Assembly: | 28 | 2 | ||
|
|
RB1LPA1x33 | Hydraulic tubes 1/2”O.D.xW.035” stainless steel | - | 2 | |
| SAE070115-8 | Tube support sleeves ½” JIC | - | 4 | ||
| SAE070110-8 | Nuts ½” JIC | - | 4 | ||
| RB1LTC1/2 | Tube Clamp ½ ” | - | 2 | ||
| RB2LDB | HYDRAULIC HOSE ASSEMBLY : (for Motor) | 30 | 2 | ||
| SAE100R7-06x16-1/2 | Hydraulic Hose 3/8”I.D.x16-1/2”lg., thermoplastic | - | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| RB1LDD | Hydraulic Hose Assembly; | 31 | 2 | ||
| SAE100R7-06x19/20 | Hydraulic Hose 3/8”I.D.x19/20”lg., thermoplastic | - | 2 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | 32 | 2 | ||
|
|
RB1ML | Stand | 33 | 1 | |
|
|
WA1LAA | Manifold | 34 | 1 | |
| NZ14-03E8 | Nozzle ¼” | 5 | |||
| NPL304050CL | Nipple ½” x Close | 1 | |||
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | 1 |
