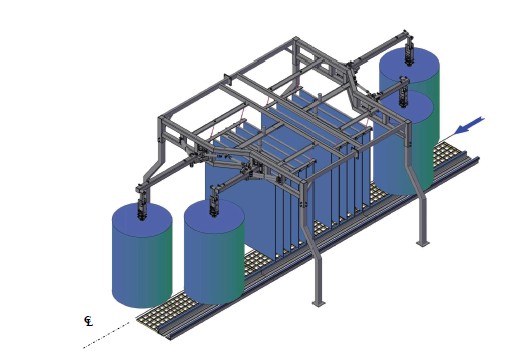

DUAL Z-WRAP w/DUAL MITTER COMBO, Model 2WADC2


DUAL Z-WRAP w/DUAL MINI MITTER COMBO, Model 2WDM5

SKU Details

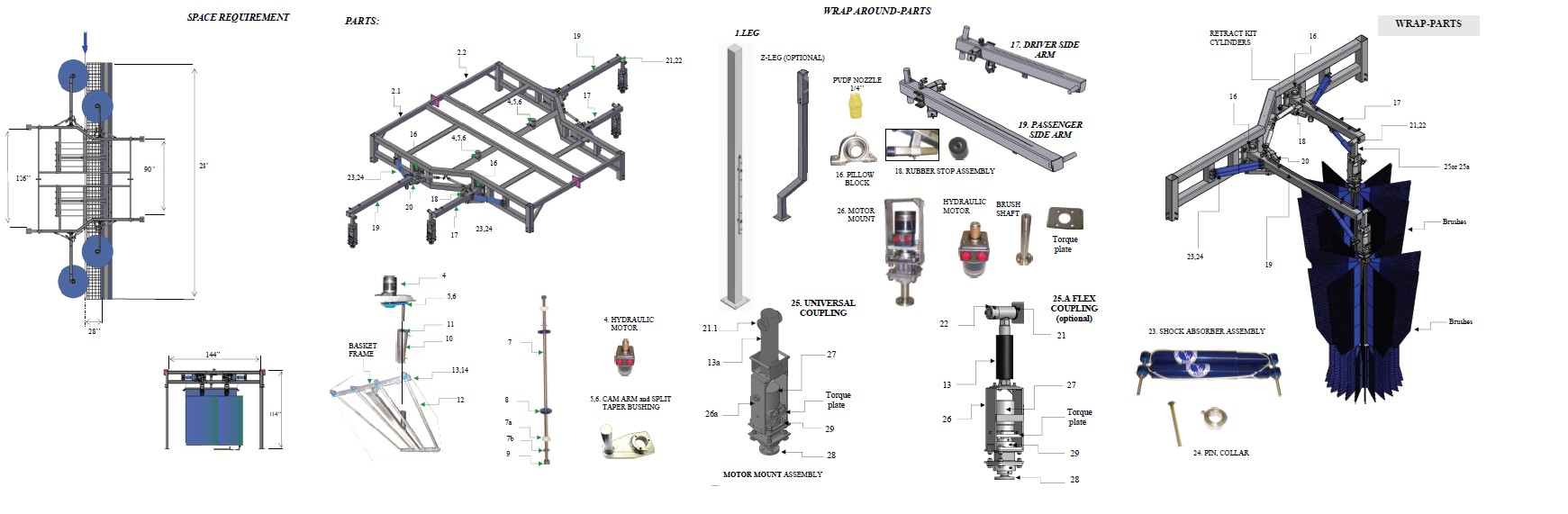

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
WC3A Leg, w/Manifold, for Wrap Mitter Combo Leg, SS 1 4

MC1AZ -Z-LEGS (OPTIONAL)
2WADC2AB FRAME ASSEMBLY 2 1
2WADC2BA-1 FRAME 1 2.1 1
2WADC2BA-2 FRAME 2 2.2 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) - 16

HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG - 8

MC2BB-1104 Basket Drive Assembly: 2

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 4 2
SAE070102-8-8 1/2’’JIC -1/2’’NPT, MALE - 4
MC2BBA-P1-1-0615 Cam Arm (w/welded weld-on hub) 5 2
P1 1” Split Taper Bushing P1 1” 6 2
HHCS3816075 w/Hex Head Screw - 8

MC1C BASKET SUPPORT ROD ASSEMBLY: - 8

MC1C1 Basket support Rod ½” x 27” lg. 7 8

MC1C2 Basket support Disk UHMW 8 16

MC1C3 Basket support Halfball 7a 16

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 7b 16

NLN1213 Nylon Lock Nut ½”-13 9 16

MC2D BASKET DRIVE ASSEMBLY: - 2

MC2DA Basket Frame 7’ - 2

MC1DB Sleeve Assembly - 2

MC1DB1 Sleeve 10 2

MC1DB2 UHMW Bushing 1” I.D. 11 2

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 6

HN3816 HEX NUTS 3/8’’ - 6

MC2DC Curtain Rod Assembly - 8

MC2DCA Curtain Rod 7’4”lg. 12 8

MC1DC2 Plastic spacer 1” I.D.x2”O.D.x ¼ ” width 13 16

MC1DC1 Plastic spacer 7/8”I.D.x1½”O.D.x3/16” width 14 16

PLHN3410 Plastic Hex Nut ¾”-10 - 32

MC1E CURTAIN (CLOTH) 15 72
WA1WB PILLOW BLOCK 2” 16 8
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 16

SLW1/2 Split Lock Washer - 16
WA1D DRIVER SIDE ARM ASSEMBLY: - 2

WA1DA Driver Side Arm 48”lg. 17 2

WA1DB Rubber Stop Arm Assembly 18 4

WA1DBA Stop Arm - 4

WA1DBB Rubber Bumper - 4

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 4

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D - 4
WA1E PASSENGER SIDE ARM ASSEMBLY: - 2

WA1EA Passenger Side Arm 76” LG 19 2

WA1DAD Bracket For Retract Kit (welded) - 2
WA11 PLASTIC SPACER 21 4

WA11-0112 PLASTIC SPACER ( for UNIVERSAL COUPLING) 21.1 4

WA2J-2P 2-PIECE COLLAR 1-1/2’’ 22 4

WA1FA SHOCK ABSORBER ASSEMBLY: 23 4

WA1FAA Shock Absorber - 4
WA1FA1 UHMW Bushing 3/8” I.D. - 8

WA1FB PIN Æ3/8” x 6” LG. 24 8

WA1FC COLLAR 3/8” - 8

WA2H-0112 UNIVERSAL COUPLING ASSEMBLY 25 4
WA2HA-0112 UHMW Flex Coupling - 4
WA1H2 UHMW Bushing 1 ½” I.D. - 4
WA2HC Mounting Channel - 4
WA2HD Shaft 1 ½” x6 ¼” LG - 4
WA1J Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width - 8

WA1H FLEX COUPLING ASSEMBLY (optional) 25a 4
WA1HA Welded Flex Coupling - 4
WA1HB Wrap Cam ¾” I.D. - 4
WA1H1 UHMW Sleeve - 4
WA5K WRAP AROUND SHAFT ASSEMBLY 26 4

WA5KA Motor Mount - 4

NLN3816 Nylon Lock Nuts 8

SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 8
WA1K1 Torque Plate 4
WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 4

WA1KCB 4-bolt Bearing 1 ½” 28 8
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. 32

FW12100 Flat Washer ½” I.D. x 1” O.D. 32
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 30 4
WC3L HYDRAULIC & WATER INSTALLATION 31 -
WA1LA Side Water Manifold Assembly (on exit legs): 4

WA1LAA Manifold 4

SAE140109P-8 Hollow Hex Plug ½” NPTM 4

BRBPP050x050 Barb 1/2”x ½” NPTM 4

NZ14 Nozzle ¼” NPTM 16
SAE140438-8-8 Female Pipe Tee ½” NPTF 12
PPP3-4 Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20)

SAE070115-8 Tube support sleeves ½” JIC
SAE070110-8 Nuts ½” JIC
WA1LB Hydraulic hose assembly: 16
SAE100R7-06x34 Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic 16
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 8

FC5807-0806 Crimp Fitting SAE 37° JIC male flare 24

DMP12 UHMW DAMPING CLAMP 1/2“, 122
