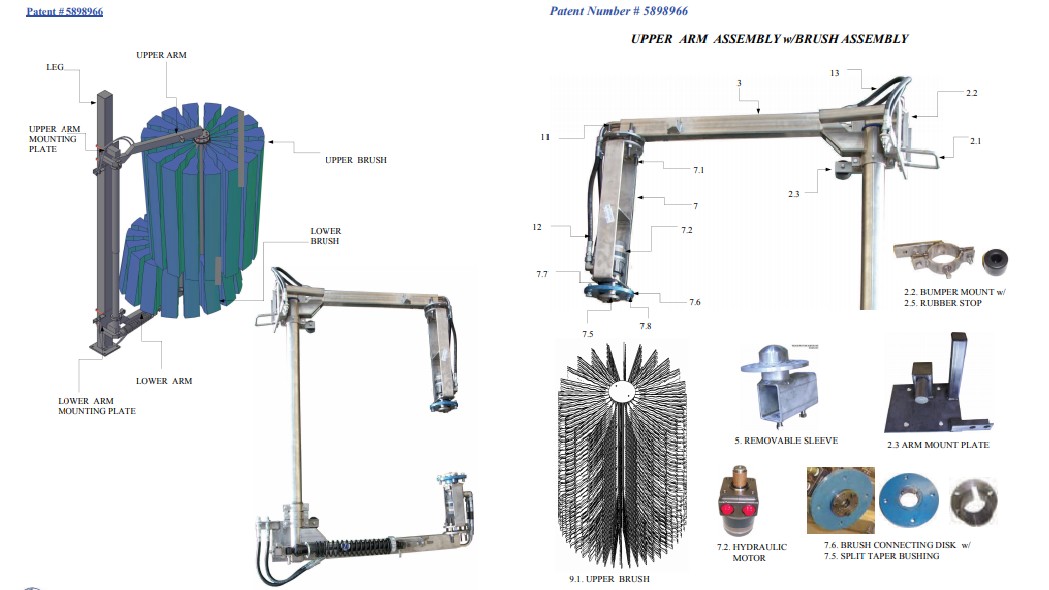

Model DWACB2 - UPPER ARM ASSEMBLY w/BRUSH ASSEMBLY : DRIVER SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| CB1A | CONTOUR BRUSH SIDE | - | 1 | ||
| CB2AB-U/L | ARM MOUNT ASSEMBLY | 2 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.1 | 2 | ||
|
|
UB-SQ050x1700 | Square U-Bolt 1/2’’x17’’lg | 2 | ||
| SLW1/2 | Split Lock Washer | 4 | |||
| CB1ABA-U/L | ARM MOUNT PLATE | 2.2 | 2 | ||
|
|
CB1AC | BUMPER ASSEMBLY | 2.3 | 1 | |
|
|
CB1ACA | 2-Piece BUMPER MOUNT (w/Plate welded) | 2.4 | 2 | |
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | 2 | |||
| SLW 3/8 | Split Lock Washer 3/8’’ | 2 | |||
| HN3816 | HEX NUTS 3/8’’ | 2 | |||
|
|
WA1DBB | Rubber Bumper | 2 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 2 | |||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 2 | |||
| CB1ACB | ARM ADJUSTING 2-PIECE COLLAR | 2.6 | 1 | ||
| CB2AD | ARM ASSEMBLY (Arms w/Removable sleeves) | 2 | |||
| CB12DA | UPPER ARM w/Distance Adjuster | 3 | 1 | ||
|
|
CB1ADCC | BUSHING for Upper Arm | - | 2 | |
| CB2ADAS | REMOVABLE SLEEVE For Motor Mount | 5 | 2 | ||
| RB2AE | BRUSH DRIVE UPPER ASSEMBLY | - | 1 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 7 | 1 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | 4 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 4 | |||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 7.2 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 7.3 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 7.4 | 4 | ||
| P1 1 (0106) | (connection of the motor with the motor mount) | 7.5 | 1 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | 2 | |||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 7.6 | 1 | |
| MC2BBA3-P1-0106 | w/welded weld-on hub | 7.7 | 1 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 4 | |||
| CB1AM-51 | UPPER BRUSH 51” ASSEMBLY: | 9 | 1 | ||
| CB1AMA-51 | Brush Cloth | 9.1 | 1 | ||
| CB1AMC-51 | Aluminum Extrusion | 9.2 | 2 | ||
| CB1AMB-51 | Two-piece Collar 1½”x12 core | 9.3 | 2 | ||
| RB2LD | HYDRAULIC INSTALLATION | - | 1 | ||
| RB1LDA | Hydraulic Tube Assembly: | 11 | 2 | ||
| RB1LDA1x37 | Hydraulic tube ½ ”O.D.xW.035”X37’’LG, stainless steel | 11.1 | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | 11.2 | 4 | ||
| SAE070110-8 | Nuts ½” JIC | 11.3 | 4 | ||
| RB1LTC1/2 | Tube Clamp ½ ” | 11.4 | 2 | ||
| SAE070201-8-8 | Fitting 90°elbow ½” JIC x ½ ”JIC | 11.5 | 2 | ||
| RB2LDB | HYDRAULIC HOSE ASSEMBLY : (for Motor) | 12 | 2 | ||
| SAE100R7-06x16-1/2 | Hydraulic Hose 3/8”I.D.x16-1/2”lg., thermoplastic | 12.1 | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | 12.2 | 4 | ||
| RB1LDD | Hydraulic Hose Assembly; | 13 | 2 | ||
| SAE100R7-06x19 | Hydraulic Hose 3/8’’I.D x 19, thermoplastic | 13.1 | 1 | ||
| SAE100R7-06x20 | Hydraulic Hose 3/8’’I.D x 20’’lg, thermoplastic | 13.2 | 1 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | 13.3 | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | 13.5 | 2 |
