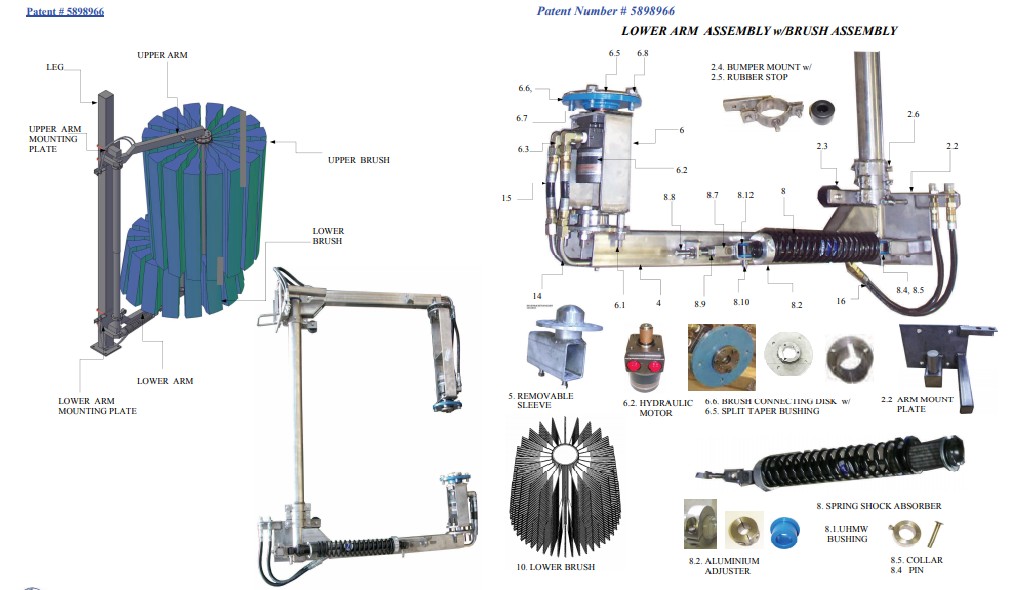

Model DWACB2-LOWER ARM ASSEMBLY w/BRUSH ASSEMBLY: DRIVER SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| CB1A | CONTOUR BRUSH SIDE | - | 1 | ||
| CB2AB-U/L | ARM MOUNT ASSEMBLY | 2 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.1 | 2 | ||
|
|
UB-SQ050x1700 | Square U-Bolt 1/2’’x17’’lg | 2 | ||
| CB1ABA-U/L | ARM MOUNT PLATE | 2.2 | 2 | ||
|
|
CB1AC | BUMPER ASSEMBLY | 2.3 | 1 | |
|
|
CB1ACA | 2-Piece BUMPER MOUNT (w/Plate welded) | 2.4 | 2 | |
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | 2 | |||
| SLW 3/8 | Split Lock Washer 3/8’’ | 2 | |||
|
|
WA1DBB | Rubber Bumper | 2.5 | 2 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 2 | |||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 2 | |||
| HN3816 | HEX NUTS 3/8’’ | 2 | |||
| CB1ACB | ARM ADJUSTING 2-PIECE COLLAR | 2.6 | 1 | ||
| CB2AD | ARM ASSEMBLY (Arms w/Removable sleeves) | 2 | |||
| CB2ADB | LOWER ARM w/Distance Adjuster | 4 | 1 | ||
|
|
CB1ADCD | BUSHING for Lower Arm | - | 2 | |
| CB2ADAS | REMOVABLE SLEEVE For Motor Mount | 5 | 2 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | - | 1 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 6 | 1 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | 4 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 4 | |||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 6.2 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 6.3 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 6.4 | 4 | ||
| P1 1 (0106) | (connection of the motor with the motor mount) | 6.5 | 1 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | 2 | |||
| RB2AEB-P1-1-0106 | BRUSH CONNECTING DISK | 6.6 | 1 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 4 | |||
| SLW1/2 | Split Lock Washer | 4 | |||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | - | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 8 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 8.1 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 8.2 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | 1 | |||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | 2 | |||
| HN1420 | Hex nut ¼ ”-20 | 2 | |||
| RB1AFC | Plastic spacer | 8.3 | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 8.4 | 2 | ||
| RB1AG | FRONT MOUNT: | 8.6 | 1 | ||
| WA2GA1 | Clevis | 8.7 | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | 8.8 | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 8.10 | 1 | ||
|
|
WA1FC | COLLAR 3/8” | 8.11 | 1 | |
|
|
RB1AGA | Shock mount | 8.12 | 1 | |
|
|
CB1AM-51 | UPPER 51” ASSEMBLY | 10 | 1 | |
|
|
CB1AMA-51 | Brush Cloth | 10.1 | 1 | |
|
|
CB1AMC-51 | Aluminum Extrusion | 10.2 | 2 | |
|
|
CB1AMB-51 | Two-piece Collar 1½”x12 core | 10.3 | 2 | |
| RB1LD | HYDRAULIC INSTALLATION: | - | 1 | ||
| RB1LDA | Hydraulic Tube Assembly: | 14 | 2 | ||
| RB1LDA1x37 | Hydraulic tube ½ ”O.D.xW.035”X37’’LG, stainless steel | 14.1 | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | 14.2 | 4 | ||
| SAE070110-8 | Nuts ½” JIC | 14.3 | 4 | ||
| RB1LTC1/2 | Tube Clamp ½ ” | 14.4 | 2 | ||
| SAE070201-8-8 | Fitting 90°elbow ½” JIC x ½ ”JIC | 14.5 | 2 | ||
| RB1LDB | Hydraulic Hose assembly: | 15 | 2 | ||
| SAE100R7-06x4-3/8 | Hydraulic Hose 3/8”I.D.x4-3/8”lg., thermoplastic | 15.1 | 2 | ||
| RB1LDD | Hydraulic Hose Assembly; | 16 | 2 | ||
| SAE100R7-06x19 | Hydraulic Hose 3/8’’I.D x 19, thermoplastic | 16.1 | 1 | ||
| SAE100R7-06x20 | Hydraulic Hose 3/8’’I.D x 20’’lg, thermoplastic | 16.2 | 1 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | 16.3 | 2 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | 16.4 | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | 16.5 | 2 |
