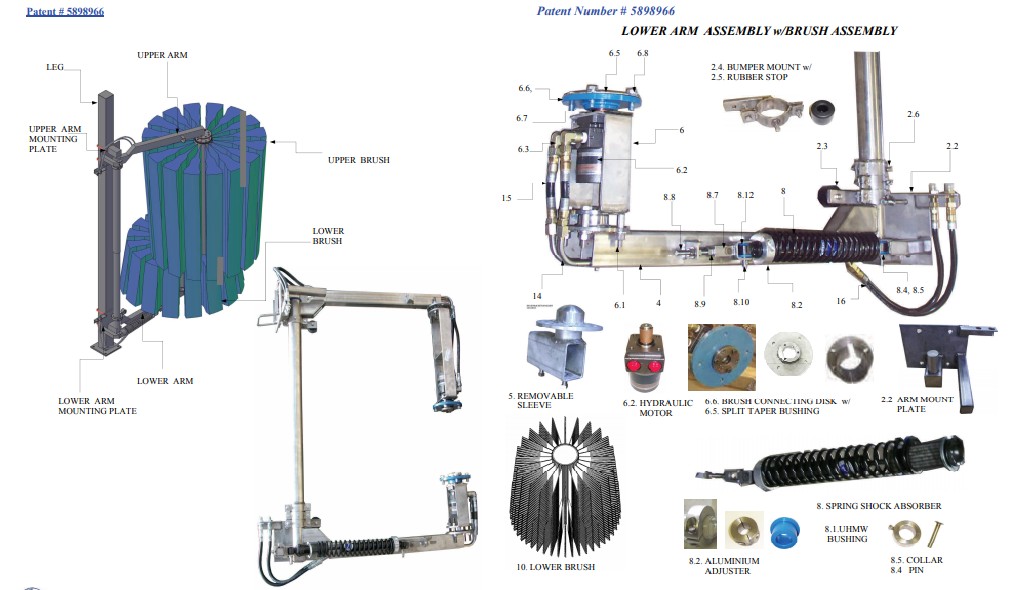

Model DWACB2 - LOWER ARM ASSEMBLY w/BRUSH ASSEMBLY : PASSENGER SIDE


Model DWACB2 - LOWER ARM ASSEMBLY w/BRUSH ASSEMBLY : PASSENGER SIDE

SKU Details


Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
CB1B CONTOUR BRUSH SIDE - 1
CB2BBU/L ARM MOUNT ASSEMBLY 2 1
RB2ABB Square U-Bolt Fastener set 1/2’’ 2.1 2

UB-050x1700 Square U-Bolt 1/2’’x17’’lg 2
SLW1/2 Split Lock Washer 4
CB1BBA-U/L ARM MOUNT PLATE 2.2 2
CB1AC BUMPER ASSEMBLY 2.3 1

CB1ACA 2-Piece BUMPER MOUNT (w/Plate welded) 2.4 2

HHCS3816150 Hex Head Cap Screw 3/8’’-16x1-1/2’’lg 2

SLW 3/8 Split Lock Washer 3/8’’ 2
HN3816 HEX NUTS 3/8’’ 2

WA1DBB Rubber Bumper 2.5 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D 2
CB1ZCB ARM ADJUSTING 2-PIECE COLLAR 2.6 1
CB2BD ARM ASSEMBLY (Arms w/Removable sleeves) 2

CB2BDB LOWER ARM w/Distance Adjuster- 4 1
CB1ADCD BUSHING for Lower Arm - 2

CB2ADAS REMOVABLE SLEEVE For Motor Mount 5 2

RB1AE BRUSH DRIVE LOWER ASSEMBLY - 1

RB1AEA MOTOR MOUNT ( 8’’ LG ) 6 1

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. 4

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 4

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 6.2 1
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 6.3 2
HHCS3816075 w/Hex Head Screw 6.4 4

P1 1 (0106) (connection of the motor with the motor mount) 6.5 1
SSS1420050C SPLIT TAPER BUSHING 1” 2

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 6.6 1

MC2BBA3-P1-0106 BRUSH CONNECTING DISK 6.7 1
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) 4

RB1AF SHOCK ABSORBER ASSEMBLY - 1

RB1AFA SPRING SHOCK ABSORBER 8 1
RB1AFA1 UHMW bushing 3/8”I.D 8.1 2

RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 8.2 1

RB2AFB1 Aluminum adjuster (2-piece collar) 1

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. 2

HN1420 Hex nut ¼ ”-20 2

RB1AFC Plastic spacer 8.3 1

TB1AEA PIN Ø 3/8” x 3” LG. 8.4 2

WA1FC COLLAR 3/8” 8.5 2

RB1AG FRONT MOUNT: 8.6 1

WA2GA1 Clevis 8.7 1

WA2GA2 Threaded rod ½” -13x5”LG. 8.8 1

WA1GB Pin 3/8”x1½”lg. 8.10 1

RB1AGA Shock mount 8.12 1

CB0405AM-21 LOWER BRUSH 21” ASSEMBLY: 10 1
CB1AMA-51 Brush Cloth 10.1 1
CB1AMC-51 Aluminum Extrusion 10.2 2
CB1AMB-51 Two-piece Collar 1½”x12 core 10.3 2
RB1LP HYDRAULIC INSTALLATION: - 1

RB1LPA Hydraulic Tube Assembly: 14 2

RB1LPA1x37 Hydraulic tube ½ ”O.D.xW.035”X37’’LG, stainless stee 14.1 2
SAE070115-8 Tube support sleeves ½” JIC 14.2 4
SAE070110-08 Nut ½ ”JIC 14.3 4
RB1LTC1/2 Tube Clamp ½ ” 14.4 2
SAE070201-8-8 Fitting 90°elbow ½” JIC x ½ ”JIC 14.5 2
RB1LDB Hydraulic Hose assembly: 15 2

SAE100R7-06x4-3/8 Hydraulic Hose 3/8”I.D.x4-3/8”lg., thermoplastic 15.1 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 15.2 4

RB1LDD Hydraulic Hose Assembly; 16 2

SAE100R7-06x19 Hydraulic Hose 3/8’’I.D x 19, thermoplastic 16.1 1
SAE100R7-06x20 Hydraulic Hose 3/8’’I.D x 20’’lg, thermoplastic 16.2 1
FC5807-0806 Crimp Fitting SAE 37° JIC male flare 16.4 2

SAE070601-8-8 Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass 16.5 2
