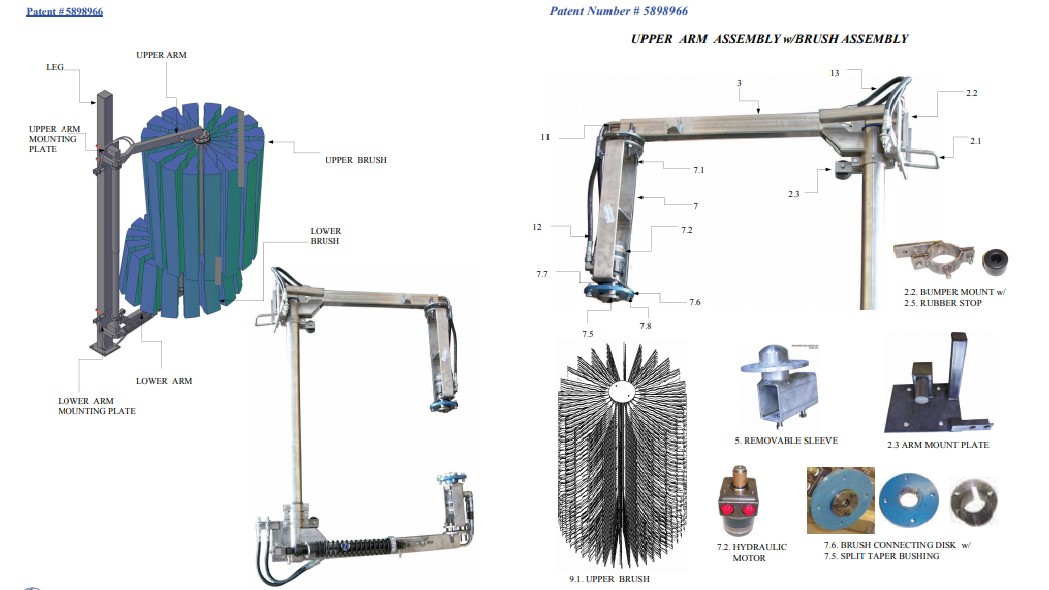

Model DWACB2 - UPPER ARM ASSEMBLY w/BRUSH ASSEMBLY : PASSENGER SIDE


Model DWACB2 - UPPER ARM ASSEMBLY w/BRUSH ASSEMBLY : PASSENGER SIDE

SKU Details


Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
CB1B CONTOUR BRUSH SIDE - 1
CB2BBU/L ARM MOUNT ASSEMBLY 2 1
RB2ABB Square U-Bolt Fastener set 1/2’’ 2.1 2

UB-050x1700 Square U-Bolt 1/2’’x17’’lg 2
SLW1/2 Split Lock Washer 4
CB1BBA-U/L ARM MOUNT PLATE 2.2 2
CB1AC BUMPER ASSEMBLY 2.3 1

CB1ACA 2-Piece BUMPER MOUNT (w/Plate welded) 2.4 2

HHCS3816150 Hex Head Cap Screw 3/8’’-16x1-1/2’’lg 2

SLW 3/8 Split Lock Washer 3/8’’ 2
HN3816 HEX NUTS 3/8’’ 2

WA1DBB Rubber Bumper 2.5 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D 2
CB1ZCB ARM ADJUSTING 2-PIECE COLLAR 2.6 1
CB2BD ARM ASSEMBLY (Arms w/Removable sleeves) 2

CB2BDA UPPER ARM w/Distance Adjuster 1
CB1ADCC BUSHING for Upper Arm - 2

CB2ADAS REMOVABLE SLEEVE For Motor Mount 5 2

RB2AE BRUSH DRIVE UPPER ASSEMBLY 1

RB1AEA MOTOR MOUNT ( 8’’ LG ) 7 1

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. 4

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 4

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 7.2 1
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 7.3 2
HHCS3816075 w/Hex Head Screw 7.4 4

P1 1 (0106) (connection of the motor with the motor mount) 7.5 1
SSS1420050C SPLIT TAPER BUSHING 1” 2

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 7.6 1

MC2BBA3-P1-0106 BRUSH CONNECTING DISK 7.7 1
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) 4

CB1AM-51 UPPER BRUSH 51” ASSEMBLY: 9 1
CB1AMA-51 Brush Cloth 9.1 1
CB1AMC-51 Aluminum Extrusion 9.2 2
CB1AMB-51 Two-piece Collar 1½”x12 core 9.3 2
RB2LP (UPPER BRUSH): - 1
RB1LPA Hydraulic Tube Assembly: 11 2

RB1LPA1x37 Hydraulic tube ½ ”O.D.xW.035”X37’’LG, stainless stee 11.1 2
SAE070115-8 Tube support sleeves ½” JIC 11.2 4
SAE070110-8 Nuts ½” JIC 11.3 4
RB1LTC1/2 Tube Clamp ½ ” 11.4 2
SAE070201-8-8 Fitting 90°elbow ½” JIC x ½ ”JIC 11.5 2
RB2LDB HYDRAULIC HOSE ASSEMBLY : (for Motor) 12 2

SAE100R7-06x16-1/2 Hydraulic Hose 3/8”I.D.x16-1/2”lg., thermoplastic 12.1 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 12.2 4

RB1LDD Hydraulic Hose Assembly; 13 2

SAE100R7-06x19 Hydraulic Hose 3/8’’I.D x 19, thermoplastic 13.1 1
SAE100R7-06x20 Hydraulic Hose 3/8’’I.D x 20’’lg, thermoplastic 13.2 1
FC5807-0806 Crimp Fitting SAE 37° JIC male flare 13.3 2

SAE070601-8-8 Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass 13.5 2
