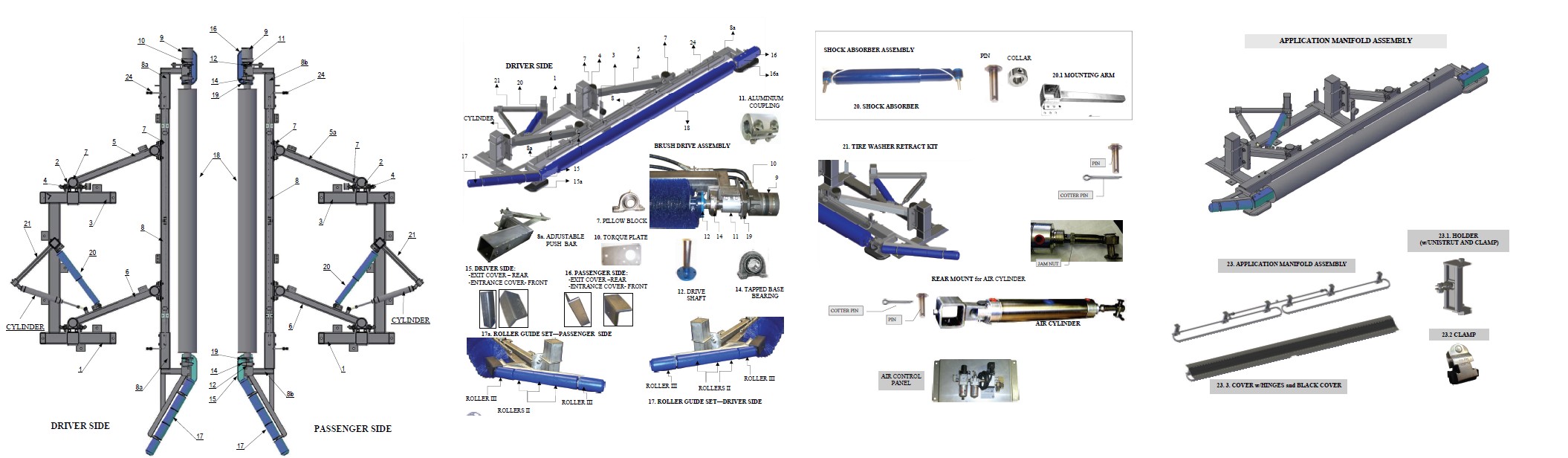

TIRE DRESSING APPLICATOR, MODEL TB3-CUS999: DRIVER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| TB3A-CUS999 | TIRE BRUSH SIDE | - | 1 | ||
| TB3AA-CUS999 | FRAME ASSEMBLY | - | 1 | ||
| TB3AAA-CUS999 | FRAME | 1 | 1 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | 2 | 8 | ||
|
|
WA1DBB | Rubber Bumper | 3 | 1 | |
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| TB2AAC | PILLOW BLOCK MOUNTING PLATE | 4 | 2 | ||
| TB2AACA | Mounting Plate | - | 2 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 4 | ||
| UB-SQ050x17 | Square U-Bolt 1/2’’x17’’LG | - | 4 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
| TB3ABx32 | FRONT ARM | 5 | 1 | ||
| TB3ACX32 | REAR ARM | 6 | 1 | ||
| BRG-RB1WB-TB1WC | PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) | 7 | 4 | ||
| BRG-207CPE-NP | Cap | - | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 32 | ||
| HN1216 | -w/ HEX NUT 1/2’’ | - | 16 | ||
| TB2AD-4B-0810 | BRUSH -RACK SUPPORT FRAME ASSEMBLY: | - | 1 | ||
| TB2ADA-4B-0810 | BRUSH SUPPORT FRAME- (RACK) | 8 | 1 | ||
| TB2ADAA-4B-0810 | FRAME | 1 | |||
| TB2ADC-0810 | PUSH BAR ASSEMBLY | 8.1 | 1 | ||
| TB2ADABA-4B-0810 | ADJUSTABLE PUSH BAR | 8a | 1 | ||
| TB3ADB-4B-CUS999 | BRUSH DRIVE ASSEMBLY (4-Bolt spindle Des.) | - | 1 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 9 | 1 | |
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 2 | ||
|
|
TB2ADB1-4B | TORQUE PLATE | 10 | 1 | |
| TB1ADBC | ALUMINIUM COUPLING 1’’ x 1-1/4’’ | 11 | 1 | ||
|
|
TB1AD1-4B | DRIVE SHAFT Ø 1-1/4’’x6’’LG | 12 | 2 | |
| SHCS3816100F | SOCKET HEAD CAP SCREW | - | 8 | ||
| TB1ADDA | TAPPED BASE BEARING 1-14’’ | 14 | 2 | ||
| HHCS71614075 | Hex Head Cap Screw 7/16’’- | - | 4 | ||
| SLW716 | Split Lock Washer 7/16’’ | - | 4 | ||
| TB2AD2-0809-EL | ENTRANCE COVER (FRONT) | 15 | 1 | ||
|
|

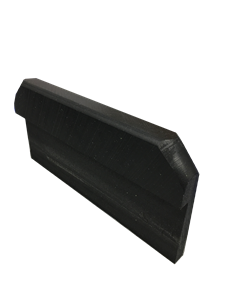

TB2AD2 | Bumper Front, 10”LG | 15a | 1 | |
|
|

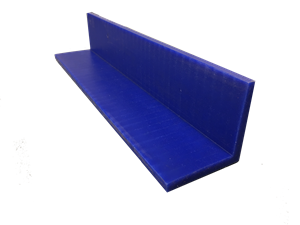

TB2AD3-0809 | EXIT COVER (REAR) | 16 | 1 | |
|
|

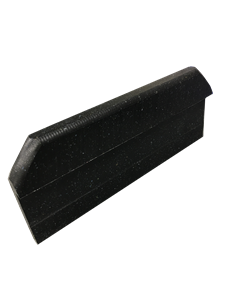

TB2AD3 | Bumper Rear, 12” LG | 16a | 1 | |
| CBS3816125 | CARRIAGE BOLT 3/8’’-16x1-1/4’’LG | - | 4 | ||
| TB1ADC | ROLLER GUIDE SET (PUSH BAR) | 17 | 1 | ||
| TB1ADC2-0209 | Roller II (Dia. 3’’x5-5/8’’’LG) | - | 1 | ||
| TB1ADC3-0209 | Roller III (Dia. 3’’x5-5/8’’’LG) | - | 1 | ||
| VD3L-34x125 | Collars | - | 2 | ||
|
|
TB1BDC4-0209 | Shaft ( Dia. 3/4’’x14-1/2’’LG) | - | 1 | |
| TB1ADE-4B-94-CUS999 | BRUSH SET | - | 1 | ||
| TB1ADEA-4B-104-CUS999 | BRUSH Ø8’’x104’’lg | 18 | 1 | ||
| TB1ADEB-4B | 4-BOLT SPINDLE | 19 | 2 | ||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | 20 | 1 | ||
| WA1FAA | Shock Absorber | - | 1 | ||
| TB2AG-1104 | SHOCK ABSORBER’S MOUNTING | - | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
|
|
TB2AGA-1104 | MOUNTING ARM | 20.1 | ||
| TB2AF | TIRE WASHER RETRACT KIT | 21 | 1set | ||
| TB2AGB-1104 | REAR MOUNT for Air Cylinder | - | 1 | ||
| AC2X | AIR CYLINDER (2’’ Bore, 8’’ Stroke) | - | 1 | ||
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | - | 1 | |
| WA1GC | Front pin ½” x 2” LG | - | 2 | ||
| CP1-2 | COTTER PIN | - | 2 | ||
| WA1P | RETRACT AIR CONTROL PANEL(OPTIONAL) | - | 1 | ||
| APS1-2F | AIR PUMPING STATION w/2 FLOJET | 22 | 1 | ||
| APS1F | FLOOJET PUMP | - | 2 | ||
| TB2M-CUS999-1216 | APPLICATION MANIFOLD ASSEMBLY | 23 | 1 | ||
| UN075175-TB2M | HOLDER ( w/UNISTRUT AND CLAMP) | 23.1 | |||
| CHC050-SS | CLAMP 1/2” | ||||
| TB2MH-CUS999-1216 | COVER w/HINGES | 1 |
