CONTOUR BRUSH [KAADY STYLE], MODEL CB3:UPPER BRUSH - PASSENGER SIDE


CONTOUR BRUSH [KAADY STYLE], MODEL CB3:UPPER BRUSH - PASSENGER SIDE

SKU Details

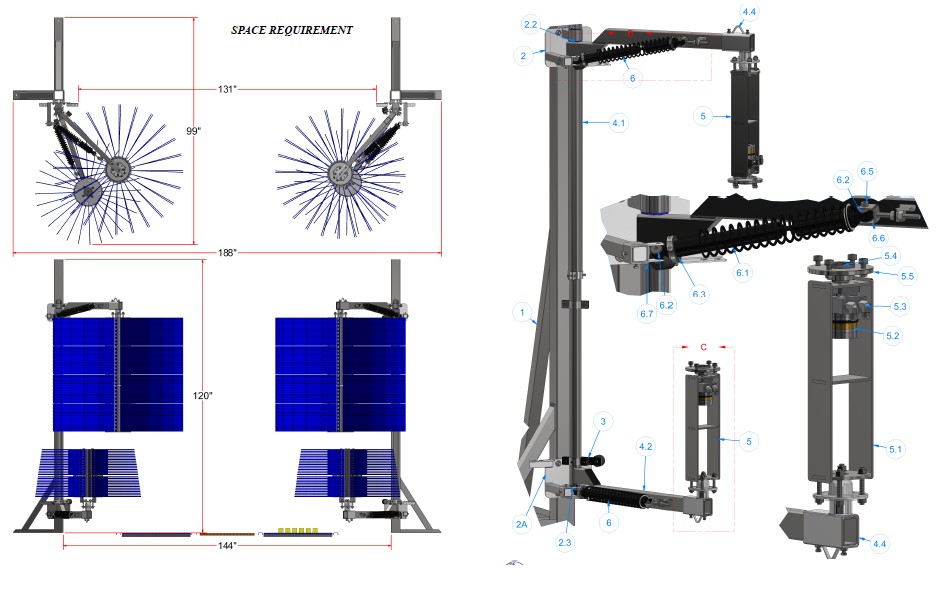

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
CB1B CONTOUR BRUSH SIDE - 1
CB2YB CONTOUR BRUSH SIDE w/o LEG - 1
CB1BA LEG 1 1
CB2BB-U ARM MOUNT ASSEMBLY UPPER/ 2 1
RB2ABB Square U-Bolt Fastener set 1/2’’ 2.1 2

UB-050x1700 Square U-Bolt 1/2’’x17’’lg - 2
SLW1/2 Split Lock Washer - 4
CB1ADCC BUSHING for Upper Arm 2.2 2

CB1ADCD BUSHING for Lower Arm 2.3 2

CB1BBA-U ARM MOUNT PLATE UPPER 2.4 1

CB1AC BUMPER ASSEMBLY 3 2

CB1ACA 2-Piece BUMPER MOUNT (w/Plate welded) 3.1 2

HHCS3816150 Hex Head Cap Screw 3/8’’-16x1-1/2’’lg - 2

SLW 3/8 Split Lock Washer 3/8’’ - 2
HN3816 HEX NUTS 3/8’’ - 2

WA1DBB Rubber Bumper 3.2 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D 2 2
CB2BD ARM ASSEMBLY (Arms w/Removable sleeves) - 2

CB2BDA UPPER ARM w/Distance Adjuster 4 1
CB2BDB UPPER ARM w/Distance adjuster 4.1 1
CB2ADAS REMOVABLE SLEEVE For Motor Mount 4.4 2

RB1AE BRUSH DRIVE LOWER ASSEMBLY 5 2

RB1AEA MOTOR MOUNT ( 8’’ LG ) 5.1 2

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. - 2

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 8

SLW12 Split Lock Washer 1/2” - 8

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 5.2 2
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 5.3 3
HHCS3816075 w/Hex Head Screw - 8

STB-P1X100 Split Taper Bushing P1 1” 5.4 2

SSS1420050C SPLIT TAPER BUSHING 1” - 4

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 5.5 2

HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 8

RB1AF SHOCK ABSORBER ASSEMBLY 6.1 1

RB1AFA SPRING SHOCK ABSORBER 6.2 1
RB1AFA1 UHMW bushing 3/8”I.D 6.3 2

RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 6.3 1

RB2AFB1 Aluminum adjuster (2-piece collar) - 1

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. - 2

HN1420 Hex nut ¼ ”-20 - 2

RB1AFC Plastic spacer 6.4 2

TB1AEA PIN Ø 3/8” x 3” LG. 6.5 2

WA1FC COLLAR 3/8” 6.6 1

RB1AG FRONT MOUNT: - 1

WA2GA1 Clevis - 1

WA2GA2 Threaded rod ½” -13x5”LG. - 1

WA1GB Pin 3/8”x1½”lg. - 1

RB1AGA Shock mount 6.7 1

RB1ABAM Moveable Rear Shock Mount 6.8 1

CB1AM-51 UPPER 51” ASSEMBLY 7 1
CB1AMA-51 Brush cloth 7.1 1
CB1AMC-51 Aluminum Extrusion 7.2 2
CB1AMB-51 Two-piece Collar 1½”x12 core 7.3 2
RB2LP (UPPER BRUSH): - 1
RB1LPA Hydraulic Tube Assembly: - 2

RB1LPA1x30 Hydraulic tube ½ ”O.D.xW.035”X30’’LG, stainless - 2
SAE070115-8 Tube support sleeves ½” JIC - 4
SAE070110-8 Nuts ½” JIC - 4
RB1LTC1-2 Tube Clamp ½ ” - 2

SAE070201-8-8 Fitting 90°elbow ½” JIC x ½ ”JIC - 2
RB2LDB HYDRAULIC HOSE ASSEMBLY : (for Motor) - 2

SAE100R7-06x16-1-2 Hydraulic Hose 3/8’’I.D x 16-1/2’’lg, thermoplastic - 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

RB1LDD Hydraulic Hose Assembly; - 2

SAE100R7-06x19 Hydraulic Hose 3/8’’I.D x 19, thermoplastic - 1
SAE100R7-06x20 Hydraulic Hose 3/8’’I.D x 20’’lg, thermoplastic - 1
FC5807-0806 Crimp Fitting SAE 37° JIC male flare - 2

SAE070601-8-8 Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass - 2
