OCTALINE WRAP MITTER COMBO, Model OT-WC3-EL:OTHER PARTS


OCTALINE WRAP MITTER COMBO, Model OT-WC3-EL:OTHER PARTS

SKU Details

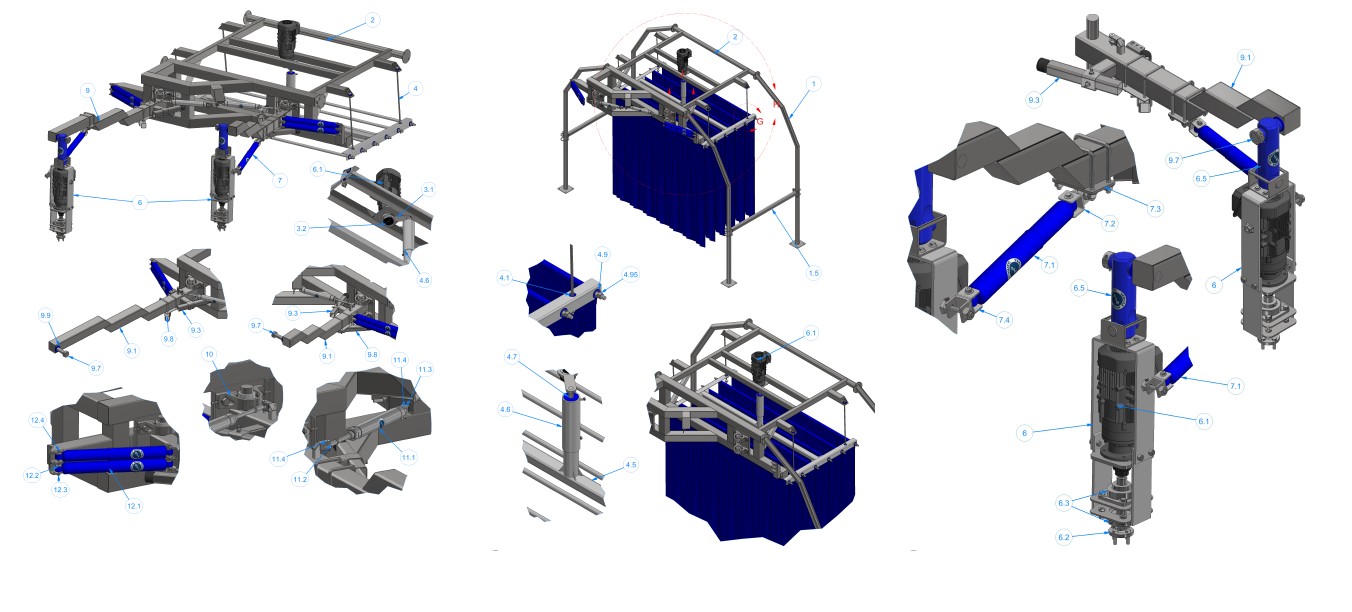

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
OT-AA0 Arch (Empty), Octaline 1 2

HHCS12131050 Hex Head Cap Screw 1/2”-13x1-1/2” LG 8
FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 16

SLW12 Split Lock Washer 1/2” 8

HN1213 HEX NUT 1/2’’ 8
HBB-21SCH40-60 HORIZONTAL BRACE BARS 1.5 4
UB-R050x300x1050 w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) 4
OT-WC3B-EL FRAME ASSEMBLY: - 1
OT-WC3BA-EL Frame 2 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) - 16

HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 8

MC2BB-1104 Basket Drive Assembly: - 1

GRMTR1-5HP-81-230-460 Electric Motor, displacement 11.9{cu.in./rev.} 3 1

MC2BBA-P1-1-0106 Cam Arm (w/welded weld-on hub) 3.1 1

STB-P1X100 Split Taper Bushing P1 1” 3.2 1

HHCS3816075 w/Hex Head Screw - 4

MC1C BASKET SUPPORT ROD ASSEMBLY: 4 4

MC1C1 Basket support Rod ½” x 27” lg. - 4

MC1C2 Basket support Disk UHMW 4.1 8

MC1C3 Basket support Halfball 4.2 8

NLN1213 Nylon Lock Nut ½”-13 - 8

MC2D BASKET DRIVE ASSEMBLY: 4.4 1

MC2DA Basket Frame 7’ 4.5 1

MC1DB Sleeve Assembly - 1

MC1DB1 Sleeve 4.6 1

MC1DB2 UHMW Bushing 1” I.D. 4.7 1

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 3

HN3816 HEX NUTS 3/8’’ - 3

MC2DC Curtain Rod Assembly - 6

MC2DCA Curtain Rod 7’4”lg. 4.8 6

MC1DC2-3/4x2x3/8 Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width 4.9 12
PLHN3410 Plastic Hex Nut ¾”-10 4.95 24

MC1E CURTAIN (CLOTH) 5 42
WA8K-EL WRAP AROUND SHAFT ASSEMBLY: - 2
WA5K-EL Motor Mount 6 2
WA5KA Motor Mount - 2

NLN3816 Nylon Lock Nuts - 4

WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 6.3 2

WA1KCB 4-bolt Bearing 1 ½” - 8
SFS1213175-WA1-4BB Screw Fastener Set (for bearing): - 2
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 4

FW12100 Flat Washer ½” I.D. x 1” O.D. - 16
WA2H UNIVERSAL COUPLING (Optional) 6.5 2

WA1H2 UHMW Bushing 1 ½” I.D. 6.6 4
WA2F-0318 Wrap Stabilizer Kit, with Fasteners and U-bolt Rear Mount to Arm; with 4" x 5-3/4" Heavy Duty Plate and Two U-bolts. (1 set - 2 pcs.) 7 2

WA2FA Shock Absorber Assembly 7.1 2

WA2FC Rear Stabilizer Mount 7.2 2

WA2DAE Stabilizer Bracket Kit 7.3 2

WA2FB-0416 Front Stabilizer Mount 7.4 2
MC2L HYDRAULIC & WATER INSTALLATION -
MC1BC-S Top Water Manifold assembly - 1

MC1BCA-S Top water manifold (tubing 1” O.D. x 34” lg. w/4 water outlets, 10” apart one from another - 1
SAE140109E-8 Hex Head Plug ½” NPTM (white plastic) - 1
BRBPP050x050 Barb 1/2”x ½” NPTM - 1

NZ14 Nozzle ¼” NPTM - 9
MC1BD Beam Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) - 2

DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) - 10
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 8 1
WA1WB PILLOW BLOCK 2” 10 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 32

WA1GA RETRACT KIT: 11 2

AC2X10 AIR CYLINDER 2”x10” 11.1 2

BJ1-2-20 BALL JOINT ROD END1/2-20 11.2 2

WA2GA FRONT MOUNT: 11.3 2

WA2GA1 Clevis - 2

WA2GA2 Threaded rod ½” -13x5”LG. - 2

WA1GB Pin 3/8”x1½”lg. 11.4 2

CP3-8 Cotter Pin - 2

WA1GC Front pin ½” x 2” LG 11.5 2

WA1GD Collar ½” - 2

JN1220 JAM NUT - 2

WA1FA SHOCK ABSORBER ASSEMBLY: 12 4

WA1FAA Shock Absorber 12.1 8
WA1FA1 UHMW Bushing 3/8” I.D. 12.2 16

WA1FB PIN Æ3/8” x 6” LG. 12.3 8

WA1FC COLLAR 3/8” 12.4 8
