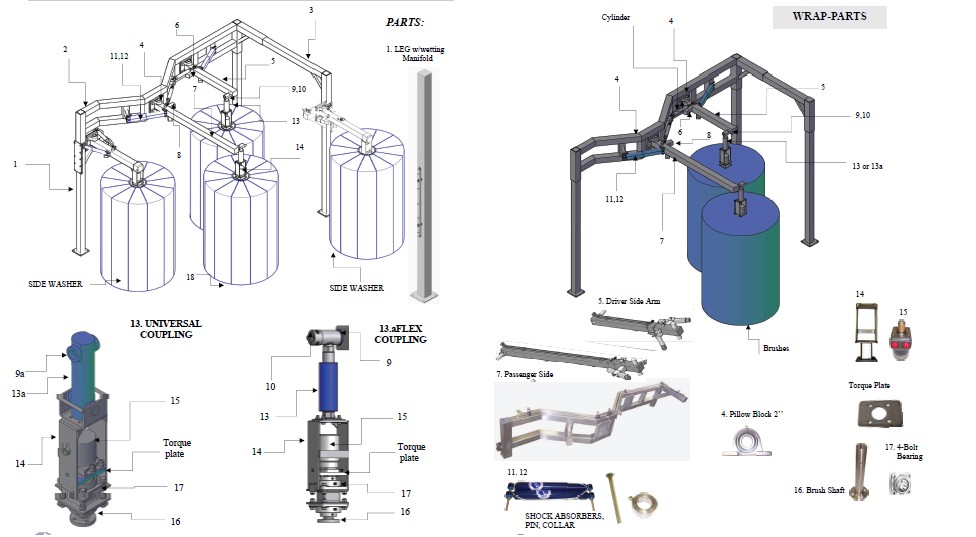

Z-WRAP SIDE WASHER COMBO, Model WSW4: WRAP PARTS


Z-WRAP SIDE WASHER COMBO, Model WSW4: WRAP PARTS

SKU Details


Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
WC3A Leg, w/Manifold, for Wrap Mitter Combo Leg, SS 1 3

WACB1C Z-CROSSBAR 2 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) 8

HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG 8

WACB1D FASTENING BAR 3 1
WA1WB PILLOW BLOCK 2” 4 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 8

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 16

SLW12 Split Lock Washer 1/2” 8

HN1213 HEX NUT 1/2’’ 8
WA1D DRIVER SIDE ARM ASSEMBLY: 1

WA1DA Driver Side Arm 48”lg. 5 1

WA1DB Rubber Stop Arm Assembly 6 2

WA1DBA Stop Arm 2

WA1DBB Rubber Bumper 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D 2
HN3816 HEX NUTS 3/8’’ 2

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. 4

WA1E PASSENGER SIDE ARM ASSEMBLY: - 1

WA1EA Passenger Side Arm 76” LG 7 1

WA1DAD Bracket For Retract Kit (welded) 1
WA11 PLASTIC SPACER 9 2

WA11-0112 PLASTIC SPACER ( for UNIVERSAL COUPLING) 9A 2

WA2J-2P 2-PIECE COLLAR 1-1/2’’ 10 2

WA1FA SHOCK ABSORBER ASSEMBLY: 11 2

WA1FAA Shock Absorber 2
WA1FA1 UHMW Bushing 3/8” I.D. 4

WA1FB PIN Æ3/8” x 6” LG. 12 4

WA1FC COLLAR 3/8” - 4

WA2H UNIVERSAL COUPLING (Optional) 13 2

WA2HA Welded COUPLING 2
WA1H2 UHMW Bushing 1 ½” I.D. 2
WA2HC Mounting Channel 2
WA2HD Shaft 1 ½” x6 ¼” LG 2
WA1J Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width 4

WA1H FLEX COUPLING ASSEMBLY (optional) 13a 2
WA1HA Welded Flex Coupling 2
WA1HB Wrap Cam ¾” I.D. 2
WA1H1 UHMW Sleeve 2
HHCS3816075 w/Hex Head Screw - 8

WA5K WRAP AROUND SHAFT ASSEMBLY 14 2

WA5KA Motor Mount - 2

NLN3816 Nylon Lock Nuts - 4

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 15 2
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC - 4
WA1K1 Torque Plate - 2
WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 16 2

WA1KCB 4-bolt Bearing 1 ½” 17 4
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 16

FW12100 Flat Washer ½” I.D. x 1” O.D. - 16
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 18 2
WA1L HYDRAULIC & WATER INSTALLATION 10 -
WA1LA Side Water Manifold Assembly (on exit legs): 3

WA1LAA Manifold 3

SAE140109P-8 Hollow Hex Plug ½” NPTM 3

BRBPP050x050 Barb 1/2”x ½” NPTM 3

NZ14-05E80 NOZZLE ¼” NPT, Yellow 15

PPP3-4 Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) 15

SAE070115-8 Tube support sleeves ½” JIC 22
SAE070110-8 Nuts ½” JIC 22
WA1LB Hydraulic hose assembly: 8
SAE100R7-06x34 Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic 8
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 4

FC5807-0806 Crimp Fitting SAE 37° JIC male flare 12

DMP12 UHMW DAMPING CLAMP 1/2“, 8

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. 8
