CONTOUR BRUSH - KAADY Style, Model CB2 - Driver Side
The AVW-Kaady Free Standing Contour Brush is constructed of heavy grade Stainless Steel. Designed to thoroughly clean the sides of vehicles through the use contouring adjustment. Van High brush height is ideal for vans and sport utility vehicles because it cleans the sides with smooth even pressure.
Product Features:
- Hydraulic Motors, displacement 5.0 cu. in/rev
- 1.3 GPM at 60RPM
- 1/2" NPT Outlet
- Equipment center line 28" from inside conveyor rail

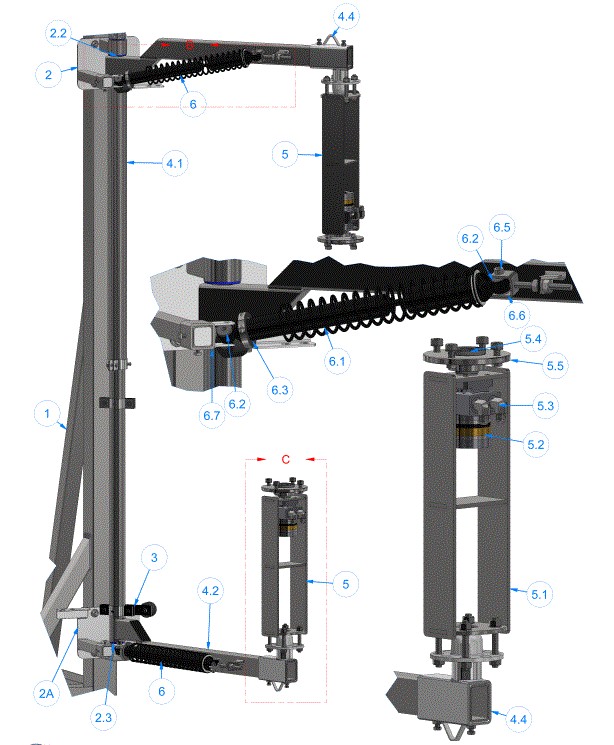

SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| CB2AD | ARM ASSEMBLY (Arms w/Removable sleeves) | 4 | 1 | ||
| CB2ADAS | REMOVABLE SLEEVE For Motor Mount | 4.4 | 2 | ||
| CB1A | CONTOUR BRUSH SIDE | 1 | |||
| CB2YA | CONTOUR BRUSH SIDE w/o LEG | - | 1 | ||
| CB1AA | LEG | 1 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.1 | 4 | ||
|
|
UB-SQ050x1700 | Square U-Bolt 1/2’’x17’’lg | - | 4 | |
| SLW1/2 | Split Lock Washer | - | 8 | ||
|
|
CB1ADCC | BUSHING for Upper Arm | 2.2 | 2 | |
|
|
CB1ADCD | BUSHING for Lower Arm | 2.3 | 2 | |
| CB1ABA-U | Arm Mount Plate, Driver, Upper) | 2.4 | 1 | ||
| CB1ABA-L | ARM MOUNT PLATE LOWER | 2.4 | 1 | ||
|
|
CB1AC | BUMPER ASSEMBLY | 3 | 2 | |
|
|
CB1ACA | 2-Piece BUMPER MOUNT (w/Plate welded) | 3.1 | 2 | |
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | - | 2 | ||
| SLW 3/8 | Split Lock Washer 3/8’’ | - | 2 | ||
|
|
WA1DBB | Rubber Bumper | 3.2 | 2 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 2 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 2 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 2 | ||
| CB2ADA | UPPER ARM w/Distance adjuster | 4.1 | 1 | ||
| CB2ADB | LOWER ARM w/Distance Adjuster | 4.2 | 1 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | 5 | 2 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 5.1 | 2 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 5.2 | 2 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 5.3 | 4 | ||
| HHCS3816075 | w/Hex Head Screw | - | 8 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | 5.4 | 4 | |
| SSS1420050C | SPLIT TAPER BUSHING 1” | - | 4 | ||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 5.5 | 2 | |
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | - | 8 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | 6 | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 6.1 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 6.2 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 6.3 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | - | 1 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | - | 2 | ||
| HN1420 | Hex nut ¼ ”-20 | - | 2 | ||
| RB1AFC | Plastic spacer | - | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 6.5 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | 6.6 | 1 | |
| RB1AG | FRONT MOUNT: | - | 1 | ||
| WA2GA1 | Clevis | - | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | - | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | - | 1 | ||
|
|
RB1AGA | Shock mount | - | 1 | |
| RB1ABAM | 6.7 | 1 | |||
|
|
CB1AM-51 | UPPER 51” ASSEMBLY | 7 | 1 | |
| CB1AM-51 | UPPER BRUSH 51” ASSEMBLY: | 7 | 1 | ||
|
|
CB1AMA-51 | Brush Cloth | 7.1 | 1 | |
| CB1AMA-51 | Brush Cloth | 7.1 | 1 | ||
|
|
CB1AMC-51 | Aluminum Extrusion | 7.2 | 2 | |
| CB1AMC-51 | Aluminum Extrusion | 7.2 | 2 | ||
|
|
CB1AMB-51 | Two-piece Collar 1½”x12 core | 7.3 | 2 | |
| CB1AMB-51 | Two-piece Collar 1½”x12 core | 7.3 | 2 |
