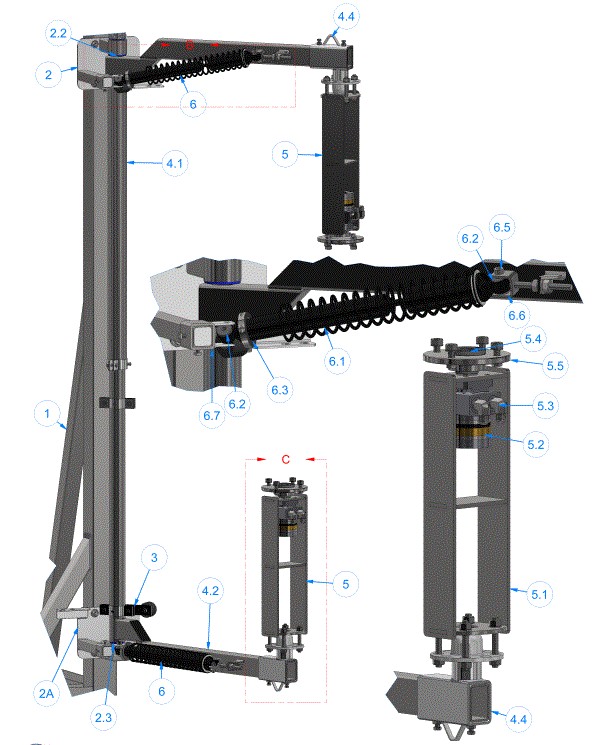

CONTOUR BRUSH - KAADY Style, Model CB2 - Passenger Side
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| CB2BD | ARM ASSEMBLY (Arms w/Removable sleeves) | 4 | 1 | ||
| CB1B | CONTOUR BRUSH SIDE | 1 | |||
| CB2YB | CONTOUR BRUSH SIDE w/o LEG | - | 1 | ||
| CB1BA | LEG | 1 | 1 | ||
| CB2BB-U-CB2BB-L | ARM MOUNT ASSEMBLY UPPER/LOWER | 2 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.1 | 2 | ||
| UB-050x1700 | Square U-Bolt 1/2’’x17’’lg | - | 2 | ||
| SLW1/2 | Split Lock Washer | - | 4 | ||
|
|
CB1ADCC | BUSHING for Upper Arm | 2.2 | 2 | |
|
|
CB1ADCD | BUSHING for Lower Arm | 2.3 | 2 | |
| CB1BBA-U/CB1BBA-L | ARM MOUNT PLATE UPPER/LOWER | 2.4 | 1 | ||
|
|
CB1AC | BUMPER ASSEMBLY | 3 | 2 | |
|
|
CB1ACA | 2-Piece BUMPER MOUNT (w/Plate welded) | 3.1 | 2 | |
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | - | 2 | ||
| SLW 3/8 | Split Lock Washer 3/8’’ | - | 2 | ||
|
|
WA1DBB | Rubber Bumper | 3.2 | 2 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 2 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 2 | ||
| CB2BDA | UPPER ARM w/Distance Adjuster | 4.1 | 1 | ||
| CB2BDB | LOWER ARM w/Distance Adjuster- | 4.2 | 1 | ||
| CB2ADAS | REMOVABLE SLEEVE For Motor Mount | 4.4 | 2 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | 5 | 1 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 5.1 | 2 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 5.2 | 2 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 5.3 | 4 | ||
| HHCS3816075 | w/Hex Head Screw | - | 8 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | 5.4 | 2 | |
| SSS1420050C | SPLIT TAPER BUSHING 1” | - | 4 | ||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 5.5 | 2 | |
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | - | 8 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | 6 | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 6.1 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 6.2 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 6.3 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | - | 1 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | - | 2 | ||
| HN1420 | Hex nut ¼ ”-20 | - | 2 | ||
| RB1AFC | Plastic spacer | - | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 6.4 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | 6.5 | 2 | |
| RB1AG | FRONT MOUNT: | 6.6 | 1 | ||
| WA2GA1 | Clevis | - | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | - | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | - | 1 | ||
|
|
RB1AGA | Shock mount | 6.7 | 1 | |
| RB1ABAM | Moveable Rear Shock Mount | 6.8 | 1 | ||
|
|
CB1AM-51 | UPPER 51” ASSEMBLY | 7 | 1 | |
| CB1AM-51 | UPPER BRUSH 51” ASSEMBLY: | 7 | 1 | ||
|
|
CB1AMA-51 | Brush Cloth | 7.1 | 1 | |
| CB1AMA-51 | Brush Cloth | 7.1 | 1 | ||
|
|
CB1AMC-51 | Aluminum Extrusion | 7.2 | 2 | |
| CB1AMC-51 | Aluminum Extrusion | 7.2 | 2 | ||
|
|
CB1AMB-51 | Two-piece Collar 1½”x12 core | 7.3 | 2 | |
| CB1AMB-51 | Two-piece Collar 1½”x12 core | 7.3 | 2 |
