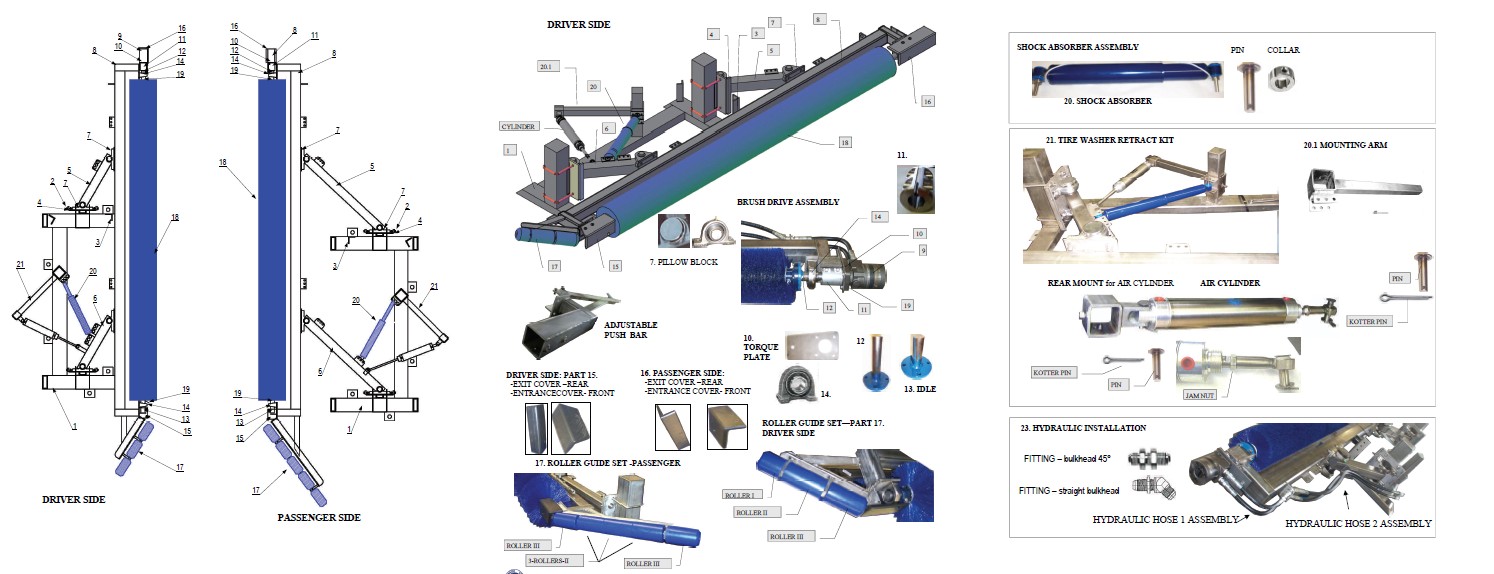

TIRE WASHER Model-TB2, STEPPED TIRE WASHER, Model TB2-1655: DRIVER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| TB2A | TIRE BRUSH SIDE | - | 1 | ||
| TB2AA | FRAME ASSEMBLY | - | 1 | ||
| TB2AAA | FRAME | 1 | 1 | ||
|
|
WA1DBB | Rubber Bumper | 3 | 1 | |
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | 2 | 8 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| TB2AAC | PILLOW BLOCK MOUNTING PLATE | 4 | 2 | ||
| TB2AACA | Mounting Plate | - | 2 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 4 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | - | 4 | ||
| SLW1/2 | Split Lock Washer | - | 8 | ||
| TBTR2A | LEG | - | 2 | ||
| TBTR2AB | PLATES #1/4”x6” Round | - | 2 | ||
| TB2BBX18 | FRONT ARM | 5 | 1 | ||
| TB2BCX18 | REAR ARM | 6 | 1 | ||
| TB1WB | PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) | 7 | 4 | ||
| TB1WC | Cap | - | 4 | ||
| RB1WB | Pillow Block Bearings (Non Capped) | - | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 32 | ||
|
|
HN1213 | HEX NUT 1/2’’ | - | 8 | |
| TB2AD-4B-0810 | BRUSH -RACK SUPPORT FRAME ASSEMBLY: | - | 1 | ||
| TB2ADA-4B-0810 | BRUSH SUPPORT FRAME- (RACK) | 8 | 1 | ||
| TB2ADAA-4B-0810 | FRAME | - | 1 | ||
| TB2ADABA-4B-0810 | ADJUSTABLE PUSH BAR | - | 1 | ||
| TB2ADB-4B | BRUSH DRIVE ASSEMBLY | 9 | 1 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 10 | 1 | ||
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 2 | ||
|
|
TB2ADB1-4B | TORQUE PLATE | - | 1 | |
|
|
TB2ADBC | ALUMINIUM COUPLING 1’’ x 1-1/4’’ | 11 | 1 | |
| TB2ADBA-4B | DRIVE SHAFT Ø 1-1/4’’x6’’Lg | 12 | 1 | ||
|
|
TB1AD1-4B | DRIVE SHAFT Ø 1-1/4’’x6’’LG | 13 | 1 | |
| SHCS3816100F | SOCKET HEAD CAP SCREW | - | 4 | ||
| TB1ADDA | TAPPED BASE BEARING 1-14’’ | 14 | 2 | ||
| HHCS71614075 | Hex Head Cap Screw 7/16’’- | - | 4 | ||
| SLW7/16 | 14x3/4’’LG | - | 4 | ||
|
|
TB2BD2-0809 | ENTRANCE COVER (FRONT) | 15 | 1 | |
|
|
TB2BD3-0809 | EXIT COVER (REAR) | 16 | 1 | |
| CBS3816125 | CARRIAGE BOLT 3/8’’-16x1-1/4’’LG | - | 4 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| TB1ADC | ROLLER GUIDE SET (PUSH BAR) | 17 | 1 | ||
| TB1ADC1-0209 | Roller I (Dia. 3’’x3’’LG) | - | 1 | ||
| TB1ADC2-0209 | Roller II (Dia. 3’’x5-5/8’’’LG) | - | 1 | ||
| TB1ADC3-0209 | Roller III (Dia. 3’’x5-5/8’’’LG) | - | 1 | ||
| VD3L-34x125 | Collars | - | 2 | ||
| TB1ADC4-0209 | Shaft ( Dia. 3/4’’x14-1/2’’LG) | - | 1 | ||
| TB1ADE-4B-94 | BRUSH SET | - | 1 | ||
| TB1ADEA-4B-94 | BRUSH Ø8’’x94’’lg | 18 | 1 | ||
| TB1ADEA-4B-94-1655 | STEPPED BRUSH –For Stepped Tire Brush (Option) | 18a | 1 | ||
| TB1ADEB-4B | 4-BOLT SPINDLE | 19 | 2 | ||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | - | 1 | ||
| WA1FAA | Shock Absorber | 20 | 1 | ||
| TB2AG-1104 | SHOCK ABSORBER’S MOUNTING | - | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
|
|
TB2AGA-1104 | MOUNTING ARM | 20.1 | ||
| TB2AF | TIRE WASHER RETRACT KIT | 21 | 1set | ||
| TB2AGB-1104 | REAR MOUNT for Air Cylinder | - | 1 | ||
| AC2X8-R | AIR CYLINDER (2’’ Bore, 8’’ St | - | 1 | ||
| BJ1/2-20 | BALL JOINT ROD END1/2-20 | - | 1 | ||
| WA1GC | Front pin ½” x 2” LG | - | 2 | ||
| CP1/2 | COTTER PIN | - | 2 | ||
| WA1P | RETRACT AIR CONTROL PANEL(OPTIONAL) | 22 | 1 | ||
| FRL1/4 | FRL COMBINATION | - | 1 | ||
| 4WDV1/4 | 4-WAY DIRECTIONAL VALVE 1/4’’ | - | 1 | ||
| TB1L | HYDRAULIC INSTALLATION: | 23 | 1 | ||
| TB1LA | HYDRAULIC HOSE 1 ASSEMBLY: | - | 2 | ||
| SAE100R7-06x14 | Hydraulic hose 3/8”I.D.x14”lg.,thermoplastic | - | 2 | ||
| TB1LB | HYDRAULIC HOSE 2 ASSEMBLY: | - | 2 | ||
| SAE100R7-06x40 | Hydraulic hose 3/8”I.D.x40”lg., thermoplastic | - | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| SAE070801-8-8 | FITTING – bulkhead 45° elbow 1/2”JICx1/2”JIC, brass | - | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | - | 2 |
