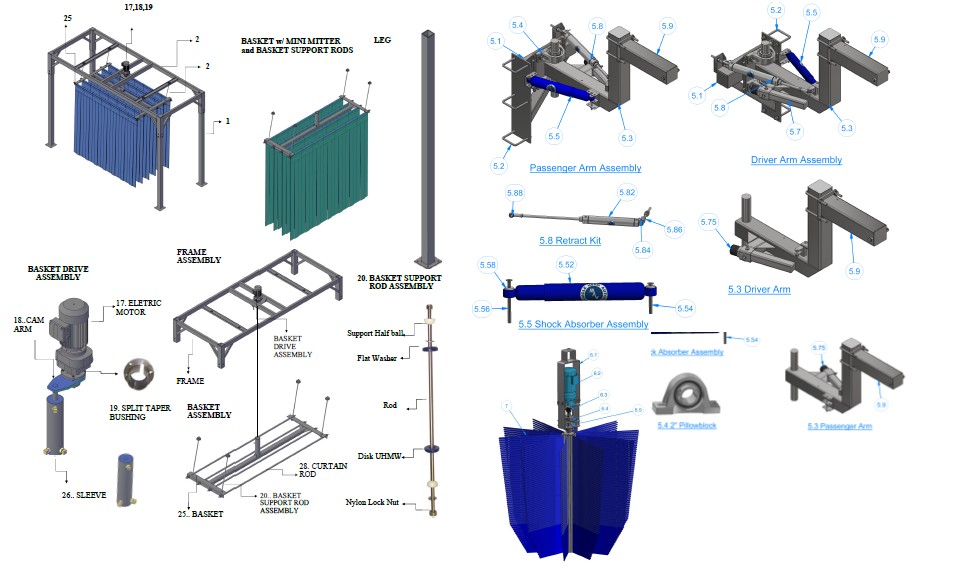

SIDE WASHER w/ MITTER COMBO, Model SC4-EL: DRIVER'S SIDE

Part#	Description	Diagram Part #	Quantity
MC1A	LEG	-	4
SCM5B	FRAME ASSEMBLY:	-	1
MC2BA	FRAME	-	1
SQHS1213150	Square Head Screw ½” – 13 x 1½” LG. (for sleeves)	-	16
SW2B	ARM MOUNT ASSEMBLY	-	1
SW2BA	Arm Mount	5.1	1
SW2B1	Connecting Plate	-	1
HHCS3816125	Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG	-	10
SLW3/8	SPLIT LOCK WASHER 3/8”	-	10
HN3816	HEX NUTS 3/8’’	-	10
HHCS3816200F	Hex Head Cap Screw 3/8’’-16x2’’LG	-	2
SW1D-5905	DUAL STEP UP ARM ASSEMBLY:	-	4
SW1DA-5905	Side ARM 42”lg.	5.3	1
WA1DAD	Bracket For Retract Kit (welded)	-	1
WA1DB	Rubber Stop Arm Assembly	5.75	1
WA1DBA	Stop Arm	-	1
WA1DBB	Rubber Bumper	-	1
FW38087	Flat Washer 3/8” I.D. x 7/8” O.D	-	1
SQHS3816075	Square Head Screw 3/8”-16x ¾” lg.	-	2
SW1DC-0210	Top Arm with:	-	1
THRD1213500	Threaded Rod ½’’-13x5’’lg	-	1
FW12100	Flat Washer ½” I.D. x 1” O.D.	-	2
NLN1213	Nylon Lock Nut ½”-13	-	2
WA1WB	PILLOW BLOCK 2”	5.4	2
HHCS12132	Hex Head Cap Screw 1/2“-13x2¼”lg.	-	4
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.	-	16
SLW12	Split Lock Washer 1/2”	-	8
HN1213	HEX NUT 1/2’’	-	8
WA1FA	SHOCK ABSORBER ASSEMBLY:	5.5	2
WA1FAA	Shock Absorber	5.52	4
WA1FB	PIN Æ3/8” x 6” LG.	5.56	4
WA1FC	COLLAR 3/8”	-	4
WA1FA1	UHMW Bushing 3/8” I.D.	5.58	8
AC2X10	AIR CYLINDER 2”x10”	5.82	1
BJ1-2-20	BALL JOINT ROD END1/2-20	5.88	1
WA2GA	FRONT MOUNT:	5.86	1
WA2GA1	Clevis	-	1
WA2GA2	Threaded rod ½” -13x5”LG.	-	1
WA1GB	Pin 3/8”x1½”lg.	5.84	1
CP3-8	Cotter Pin	-	1
WA1GC	Front pin ½” x 2” LG	-	1
WA1GD	Collar ½”	-	1
JN1220	JAM NUT	-	1
