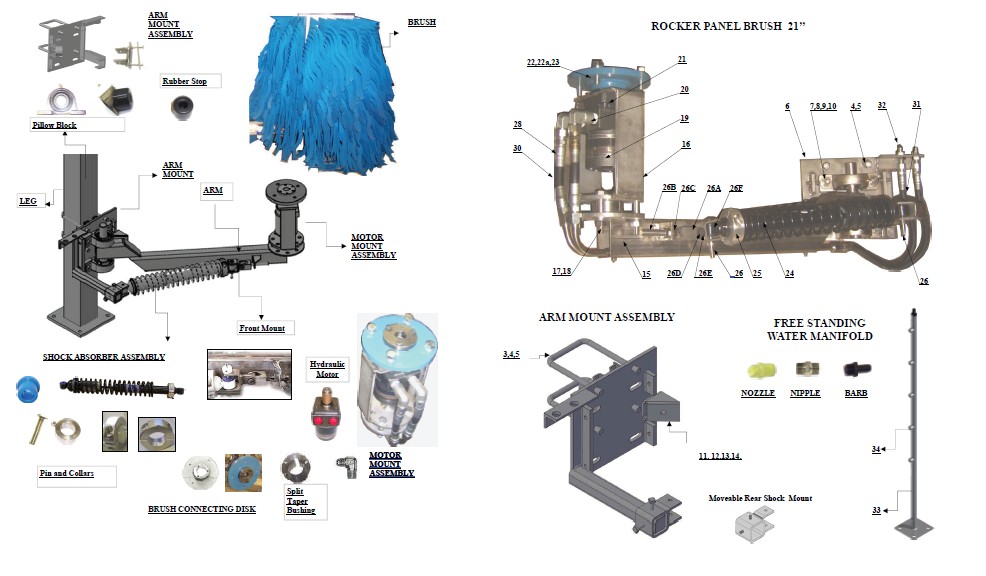

ROCKER PANEL BRUSH 21’’-ATTACHED, Model RB1: DRIVER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| RB1A | ROCKER PANEL BRUSH SIDE | - | 1 |
|
|
| RB2AB-0308 | ARM MOUNT ASSEMBLY: | - | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 2 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | 3 | 2 | ||
| SLW1/2 | Split Lock Washer | 4 | 4 | ||
|
|
HN1213 | HEX NUT 1/2’’ | 5 | 4 | |
|
|
RB1ABA | Arm Mount | 6 | 1 | |
| RB1ABAA | Arm Mount | - | 1 | ||
| RB1ABAM | Moveable Rear Shock Mount | - | 1 | ||
| RB1WB | Pillow Block Bearings (Non Capped) | 7 | 2 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | 8 | 4 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 9 | 8 | ||
|
|
RB1AC-0308 | Bumper Mount | - | 1 | |
| RB1ACA-0308 | Hex Head Cap Screw 3/8”-16x1¼”lg. | 11 | 1 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| SQHS3816100 | Square Head Screw 3/8”-16x1”lg. | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | 12 | 1 | |
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 13 | 1 | ||
| RB1ADx32 | ARM | 15 | 1 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | - | 1 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 16 | 4 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | 17 | 4 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 19 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 20 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 21 | 4 | ||
| P1 1” (0106) | Split Taper Bushing 1” | 22A | 1 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | - | 2 | ||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 22 | 1 | |
| MC2BBA3-P1-1-0106 | welded weld-on hub | - | 1 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | - | 4 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | - | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 24 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | - | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 25 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | - | 1 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | - | 2 | ||
| HN1420 | Hex nut ¼ ”-20 | - | 2 | ||
| RB1AFC | Plastic spacer | - | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 26 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
| RB1AG | FRONT MOUNT: | - | 1 | ||
| WA2GA1 | Clevis | 26A | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | 26B | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 26D | 1 | ||
|
|
RB1AGA | Shock mount | 26F | 1 | |
| RB1AM | BRUSH 28” ASSEMBLY: | 27 | 1 | ||
| RB1AMA | Brush Cloth | - | 1 | ||
| RB1AMC | Aluminum Extrusion | - | 2 | ||
| RB1AMB | Two-piece Collar 1½”x12 core | - | 2 | ||
| RB1LD | HYDRAULIC INSTALLATION: | - | 2 | ||
| RB1LDA | Hydraulic Tube Assembly: | 28 | 2 | ||
| RB1LDA1x29 | Hydraulic Tube 1/2”O.D.xW.035”, stainless steel | - | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | 4 | ||
| SAE070110-8 | Nuts ½” JIC | - | 4 | ||
| RB1LTC1/2 | Tube Clamp ½ ” | - | 2 | ||
| RB1LDB | Hydraulic Hose assembly: | 30 | 2 | ||
| SAE100R7-06x4-3/8 | Hydraulic Hose 3/8”I.D.x4-3/8”lg., thermoplastic | - | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| RB1LDD | Hydraulic Hose Assembly; | 31 | 2 | ||
| SAE100R7-06x19/20 | Hydraulic Hose 3/8”I.D.x19/20”lg., thermoplastic | - | 2 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | 32 | 2 | ||
|
|
RB1ML | Stand | 33 | 1 | |
|
|
WA1LAA | Manifold | 34 | 1 | |
| NZ1/4 | Nozzle ¼” NPTM | - | 5 | ||
| NPL304050CL | Nipple ½” x Close | - | 1 | ||
| BRB1/2x1/2 | Barb ½” x ½” NPTM | - | 1 |
