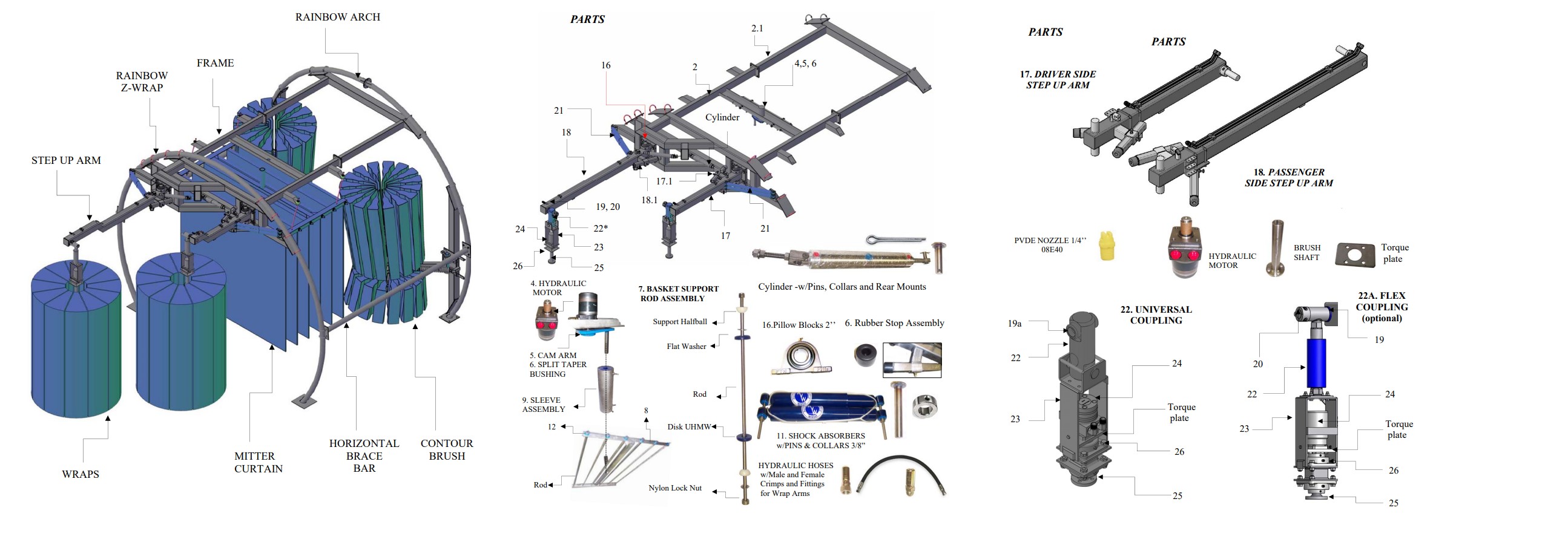

RAINBOW WRAP MITTER CONTOUR COMBO, AVW STYLE, Model R-WC3CB0405-0808
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 1 | 4 |
|
|
| HHCS12131050 | Hex Head Cap Screw 1/2”-13x1-1/2” LG | - | 8 | ||
| FW12125 | Flat Washer 1/2”I.D.x1-1/4”O.D. | - | 16 | ||
| SLW1/2 | Split lock washer | - | 8 | ||
| HN1213 | Hex nut 1/2”-13 | - | 8 | ||
| HBB-21SCH40-111 | HORIZONTAL BRACE BARS | 1.1 | 2 | ||
| UB-R050x300x1050 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) (For Frame and for Horizontal Bars) | - | 20 | ||
| R-WC3CB0405B | FRAME ASSEMBLY: | - | 1 | ||
| R-WC3CB0405BA-1 | Frame 1: | 2 | 1 | ||
| R-WC3CB0405BA-2 | Frame 2 | 2.1 | 1 | ||
| SQHS1213150 | Square head screw ½” - 13 x 1 ½” lg. (for sleeves) | 3 | 16 | ||
| HHCS1213125 | - Hex Head screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | - | 8 | ||
| MC2BB-1104 | Basket drive assembly: | - | 1 | ||
| WA1KM | Hydraulic motor, displacement 11.9 [cu. in./rev.], | 4 | 1 | ||
| SAE070102-8-8 | Straight Fitting ½” NPTM x ½ ” JIC | - | 2 | ||
| MC2BBA-P1-1-0106 | Cam arm (w/welded weld-on hub) | 5 | 1 | ||
| P1 1” | Split taper bushing P1 1” | 6 | 1 | ||
| HHCS3816075 | Hex head cap screw 3/8”-16 x ¾ ”lg. (motor’s fastener) | - | 4 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 7 | 4 | |
| MC1C1 | Basket support rod ½” x 27” lg. | - | 4 | ||
| MC1C2 | Basket support disk UHMW | - | 8 | ||
|
|
MC1C3 | Basket support Halfball | - | 8 | |
| NLN1213 | Nylon lock nut ½”-13 | - | 8 | ||
| MC2D-7 | BASKET DRIVE ASSEMBLY: | - | 1 | ||
| MC2DA-7 | Basket frame 7’ | 8 | 1 | ||
| MC1DB | Sleeve assembly: | - | 1 | ||
| MC1DB1 | Sleeve | 9 | 1 | ||
| MC1DB2 | UHMW bushing 1” I.D. | - | 1 | ||
| SQHS3816075 | Square head screw 3/8”-16x ¾” lg. | 10 | 3 | ||
| HN3816 | Hex nut 3/8”-16 | - | 3 | ||
| MC2DC | Curtain rod assembly: | 11 | 6 | ||
| MC2DCA | Curtain rod 7’4”lg. | - | 6 | ||
| MC1DC2-3/4x2x3/8 | Plastic spacer ¾ ” I.D.x2” O.D. x 3/8” width | 12 | 12 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | - | 24 | ||
| MC1E | CURTAIN (CLOTH) | 14 | 42 | ||
| MC2L | HYDRAULIC & WATER INSTALLATION | - | - |
|
|
| MC2BC-S | Top Water manifold assembly: | - | 1 | ||
| MC2BCA-S | Top Water manifold (straight, tubing 1” O.D. x 96” lg. w/9 water outlets) | - | 1 | ||
| SAE140109E-8 | Hex head plug ½” NPTM (white plastic) | - | 1 | ||
| BRB1/2x1/2 | Barb 1/2”x ½” NPTM | - | 1 | ||
| NZ1/4 | Nozzle ¼” NPTM | - | 9 | ||
| MC1BD | Beam clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 2 | ||
| SAE010115-8 | Tube Support Sleeves ½” JIC | - | 8 | ||
| SAE070110-8 | Nuts ½” J | - | 8 | ||
| DMP1/2 | Damping clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20) | - | 10 | ||
| WA1WB | PILLOW BLOCK 2” | 16 | 8 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
|
|
WA1D | DRIVER SIDE ARM ASSEMBLY: | - | 2 | |
| WA1DA | Driver Side Arm 48”lg. | 17 | 2 | ||
| WA1DB | Rubber Stop arm assembly: | 17.1 | 4 | ||
| WA1DBA | Stop Arm | - | 4 | ||
| WA1DBB | Rubber Bumper | - | 4 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 4 | ||
| FW38087 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 4 | ||
|
|
WA1E | PASSENGER SIDE ARM ASSEMBLY: | - | 2 | |
| WA1EA | Driver Side Arm 76”lg. | 18 | 2 | ||
| WA11 | PLASTIC SPACER | 19 | 4 | ||
| WA11-0112 | PLASTIC SPACER ( for UNIVERSAL COUPLING) | 19a | 4 | ||
| WA2J-2P | 2-PIECE COLLAR 1½” | 20 | 4 | ||
| WA1FA | SHOCK ABSORBER ASSEMBLY: | 21 | 4 | ||
| WA1FAA | Shock Absorber Model MN32238 | - | 8 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 16 | |
| WA1FB | PIN Æ3/8”x6”lg. | a | 8 | ||
| WA1FC | COLLAR 3/8” | - | 48 | ||
| WA2H-1212 | UNIVERSAL COUPLING | 22 | 4 | ||
| WA2HA-UHMW-1212 | UHMW Coupling | - | 4 | ||
| WA1H2 | UHMW Bushing 1½”I.D. | - | 4 | ||
| WA2HC | Mounting Channel with collars 1½”I.D. x 2 ½"O.D. x 7/8” width | - | 4 | ||
| WA2HD | Shaft 1½” x 6¼”LG | - | 2 | ||
| WA1H | FLEX COUPLING ASSEMBLY (optional) | 22A | 4 | ||
| WA1HA | Welded Flex Coupling | - | 4 | ||
| WA1HB | Wrap Cam ¾ ”I.D. | - | 4 | ||
| WA1H1 | UHMW Sleeve | - | 4 | ||
| WA5K | WRAP AROUND SHAFT ASSEMBLY | - | 4 | ||
| WA5KA | Motor Mount | 23 | 4 | ||
| HHCS3816075 | w/Hex Head Screw | - | 8 | ||
| NLN3816 | Nylon Lock Nut 3/8”-16 | - | 8 | ||
| SAE070202-8-8 | Fitting 90° elbow ½ ”NPTMx ½ ”JIC | - | 8 | ||
| WA1K1 | Torque Plate | - | 4 | ||
| WA5KB | Brush Shaft Æ1½”x10½”lg. | 25 | 4 | ||
| WA1KCB | 4-bolt Bearing 1½” UCF208-24E | 26 | 8 | ||
| HHCS1213175 | Hex Head Cap Screw ½”-13x1¾”lg. | - | 32 | ||
| FW12100 | Flat Washer ½ ”I.D.x1”O.D. | - | 32 | ||
| WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 27 | 4 | ||
| WA1L | HYDRAULIC & WATER INSTALLATION | - | - | ||
| WA1LA | Side Water Manifold Assembly (on exit legs): | - | 4 | ||
| WA1LAA | Water Manifold (tubing 1”O.D. x 36”lg., w/4 water outlets 11” apart) | - | 4 | ||
| SAE140109P-8 | Hollow Hex Plug ½”NPTM | - | 4 | ||
| PPP3/4 | Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) | - | 20 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | - | ||
| WA1LB | Hydraulic hose assembly: | - | 16 | ||
| SAE100R7-06x34 | Hydraulic Hose 3/8”I.D.x34”lg., thermoplastic, “Aeroquip” FC372-06 | - | 16 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) “Aeroquip” | - | 8 | ||
| (10655-8-6) | (or Catching Fluidpower-“Parker”) | (8) | |||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 24 | ||
| (10355-8-6) | (or Catching Fluidpower-“Parker") | - | (24) |
