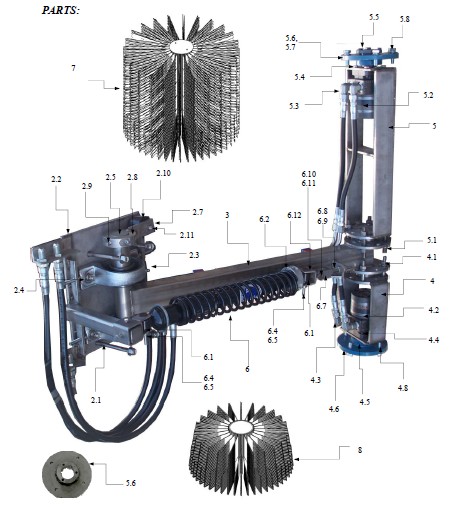

RAINBOW WRAP MITTER CONTOUR COMBO, AVW STYLE, Model R-WC3CB0405-0808: DRIVER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| CB0405AA | VERTICAL CROSSBARS | 1.0 | 1 | ||
| CB0405A | CONTOUR BRUSH SIDE | - | 1 | ||
| CB0405AB | ARM MOUNT ASSEMBLY | 2 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 2.1 | 2 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | - | 2 | ||
| SLW1/2 | Split Lock Washer | - | 2 | ||
|
|
HN1213 | HEX NUT 1/2’’ | - | 2 | |
| CB0405ABA | ARM MOUNT | 2.2 | 1 | ||
| WA1WB | PILLOW BLOCK 2” | 2.3 | 2 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 2 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 2 | ||
| CB04905SH | SHAFT 2’’ x 14-1/4’’LG | 2.5 | 1 | ||
| CB0405AC | BUMPER ASSEMBLY | 2.6 | 1 | ||
| CB0405ACA | 2-Piece BUMPER MOUNT | 2.7 | 1 | ||
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | - | 2 | ||
| SLW 3/8 | Split Lock Washer 3/8’’ | - | 2 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 2.11 | 1 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| CB0405DAx32 | ARM | 3 | 1 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | - | 1 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 4 | 1 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | - | 4 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 4.2 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 4.3 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 4.4 | 4 | ||
| P1 1 (0106) | (connection of the motor with the motor mount) | 4.5 | 1 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | - | 2 | ||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 4.6 | 1 | |
| MC2BBA3-P1-0106 | BRUSH CONNECTING DISK | 4.7 | 1 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | - | 4 | ||
| RB2AE | BRUSH DRIVE UPPER ASSEMBLY | - | 1 | ||
| THRD1213400 | (connection of the brush with disk): | - | 4 | ||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | - | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 6 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 6.1 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 6.2 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | - | 1 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | - | 2 | ||
| HN1420 | Hex nut ¼ ”-20 | - | 1 | ||
| RB1AFC | Plastic spacer | 6.3 | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 6.4 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | 6.5 | 2 | |
| RB1AG | FRONT MOUNT: | 6.6 | 1 | ||
| WA2GA1 | Clevis | 6.7 | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | 6.8 | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 6.10 | 1 | ||
|
|
RB1AGA | Shock mount | 6.11 | 1 | |
| CB0405AM-51 | UPPER BRUSH 51” ASSEMBLY | 7 | 1 | ||
|
|
CB1AMA-51 | Brush Cloth | 7.1 | 1 | |
|
|
CB1AMC-51 | Aluminum Extrusion | 7.2 | 2 | |
|
|
CB1AMB-51 | Two-piece Collar 1½”x12 core | 7.3 | 2 | |
| CB0405AM-21 (28’’) | Screw Fastener Set 3/8”, for collar | 7.4 | 8 | ||
| CB1AMA-21(28) | Aluminum Extrusion | 8.2 | 2 | ||
| CB1AMC-21(28) | Two-piece Collar 1½”x12 core | 8.3 | 2 | ||
| CB1AMB-21(28) | Screw Fastener Set 3/8”, for collar | 8.4 | 8 |
