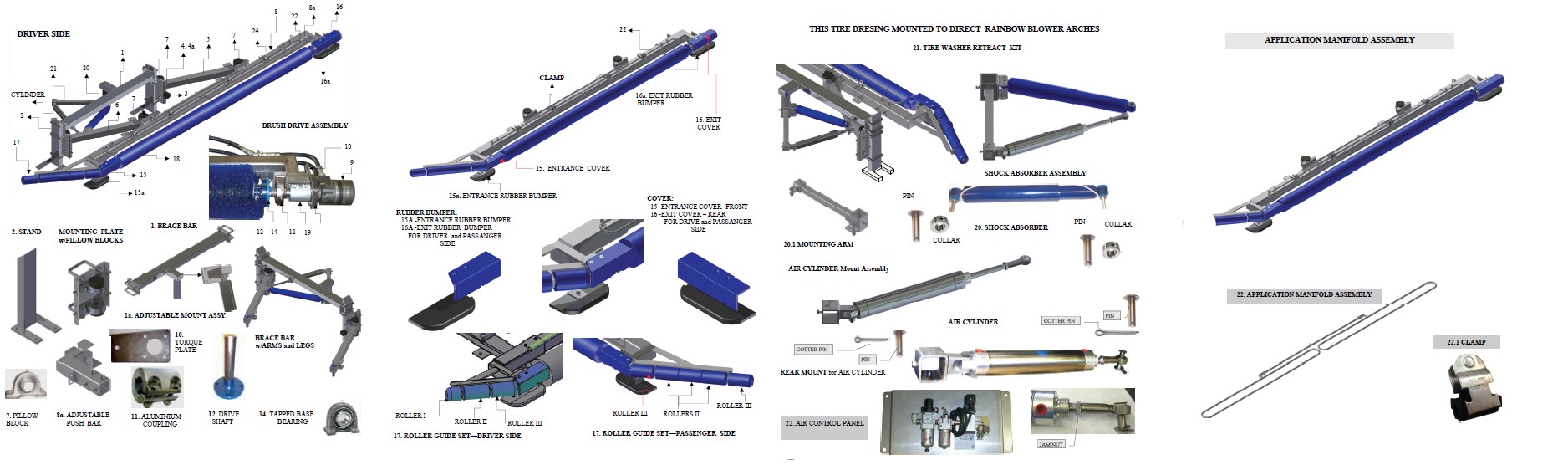

TIRE DRESSING APPLICATOR, MODEL R-TB5-CUS999: DRIVER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-TB5A-CUS999 | TIRE BRUSH SIDE | - | 1 | ||
| R-TB4AA-CUS999 | BRASE BAR w/U BOLT | 1 | 1 | ||
| UB-SQ050x200x400 | Square U-Bolts | 4 | |||
| R-TB4AAAC-CUS999 | ADJUSTABLE MOUNT ASSEMBLY | 1a | 1 |
|
|
| UB-RECT050x200x400X1300 | Rectangular U-Bolts 1/2” | 2 | |||
| R-RB1AA | STAND - LEG (2’’x4’’x20’’lg | 2 | 2 |
|
|
|
|
WA1DBB | Rubber Bumper | 3 | 1 | |
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 1 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| TB2AAC | PILLOW BLOCK MOUNTING PLATE | 4 | 2 | ||
| TB2AACA | Mounting Plate | - | 2 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 4 | ||
| UB-SQ050x17 | Square U-Bolt 1/2’’x17’’LG | - | 4 | ||
| SLW1/2 | Split Lock Washer | - | 8 | ||
|
|
HN1213 | HEX NUT 1/2’’ | - | 8 | |
| TB2ABx18 | FRONT ARM (ENTRANCE END) | 5 | 1 | ||
| TB2ACX18 | REAR ARM (EXIT END) | 6 | 1 | ||
| TB1WB | PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) | 7 | 4 | ||
| TB1WC | Cap | - | 4 | ||
| RB1WB | Pillow Block Bearings (Non Capped) | - | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 32 | ||
| HN1216 | -w/ HEX NUT 1/2’’ | - | 16 | ||
| TB3AD-4B-0810 | BRUSH -RACK SUPPORT FRAME ASSEMBLY: | - | 1 | ||
| TB3ADA-4B-0810 | BRUSH SUPPORT FRAME- (RACK) | 8 | 1 | ||
| TB3ADAA-4B-0810 | - FRAME | 1 | |||
| TB3ADC-0810 | PUSH BAR ASSEMBLY | 8.1 | 1 | ||
| TB3ADABA-4B-0810 | ADJUSTABLE PUSH BAR | 8a | 1 | ||
| TB3ADB-4B-CUS999 | BRUSH DRIVE ASSEMBLY (4-Bolt spindle Des.) | - | 1 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 9 | 1 | |
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 2 | ||
|
|
TB2ADB1-4B | TORQUE PLATE | 10 | 1 | |
| TB1ADBC | ALUMINIUM COUPLING 1’’ x 1-1/4’’ | 11 | 1 | ||
|
|
TB1AD1-4B | DRIVE SHAFT Ø 1-1/4’’x6’’LG | 12 | 2 | |
| SHCS3816100F | SOCKET HEAD CAP SCREW | 8 | |||
| TB1ADDA | TAPPED BASE BEARING 1-14’’ | 14 | 2 | ||
| HHCS71614075 | Hex Head Cap Screw 7/16’’- | - | 4 | ||
| SLW7/16 | 14x3/4’’LG | - | 4 | ||
|
|
TB2AD2-0809 | ENTRANCE COVER (FRONT) | 15 | 1 | |
|
|
TB2AD2 | Bumper Front, 10”LG | 15a | 1 | |
|
|
TB2AD3-0809 | EXIT COVER (REAR) | 16 | 1 | |
|
|
TB2AD3 | Bumper Rear, 12” LG | 16a | 1 | |
| CBS3816125 | CARRIAGE BOLT 3/8’’-16x1-1/4’’LG | - | 4 | ||
| TB1ADC | ROLLER GUIDE SET (PUSH BAR) | 17 | 1 | ||
| TB1ADC1-0209 | Roller I (Dia. 3’’x3’’LG) | - | 1 | ||
| TB1ADC2-0209 | Roller II (Dia. 3’’x5-5/8’’’LG) | - | 1 | ||
| TB1ADC3-0209 | Roller III (Dia. 3’’x5-5/8’’’LG) | - | 1 | ||
| VD3L-34x125 | Collars | - | 2 | ||
| TB1ADC4-0209 | Shaft ( Dia. 3/4’’x14-1/2’’LG) | 1 | |||
| TB1ADE-4B-94-CUS999 | BRUSH SET | - | 1 | ||
| TB1ADEA-4B-100-CUS999 | BRUSH Ø8’’x100’’LG | 18 | 1 | ||
| TB1ADEB-4B | 4-BOLT SPINDLE | 19 | 2 | ||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | - | 1 | ||
| WA1FAA | Shock Absorber | 20 | 1 | ||
| TB2AG-1104 | SHOCK ABSORBER’S MOUNTING | - | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
|
|
TB2AGA-1104 | MOUNTING ARM | 20.1 | 2 | |
| TB2AF | TIRE WASHER RETRACT KIT | 21 | 1set | ||
| TB2AGB-1104 | REAR MOUNT for Air Cylinder | 1 | |||
| AC2X8-R | AIR CYLINDER (2’’ Bore, 8’’ St | 1 | |||
| BJ1/2-20 | BALL JOINT ROD END1/2-20 | 1 | |||
| WA1GC | Front pin ½” x 2” LG | 2 | |||
| CP1/2 | COTTER PIN | 2 | |||
| TB2M-CUS99-1013 | APPLICATION MANIFOLD ASS CLAMP 1/2” | 22 | 1 |
