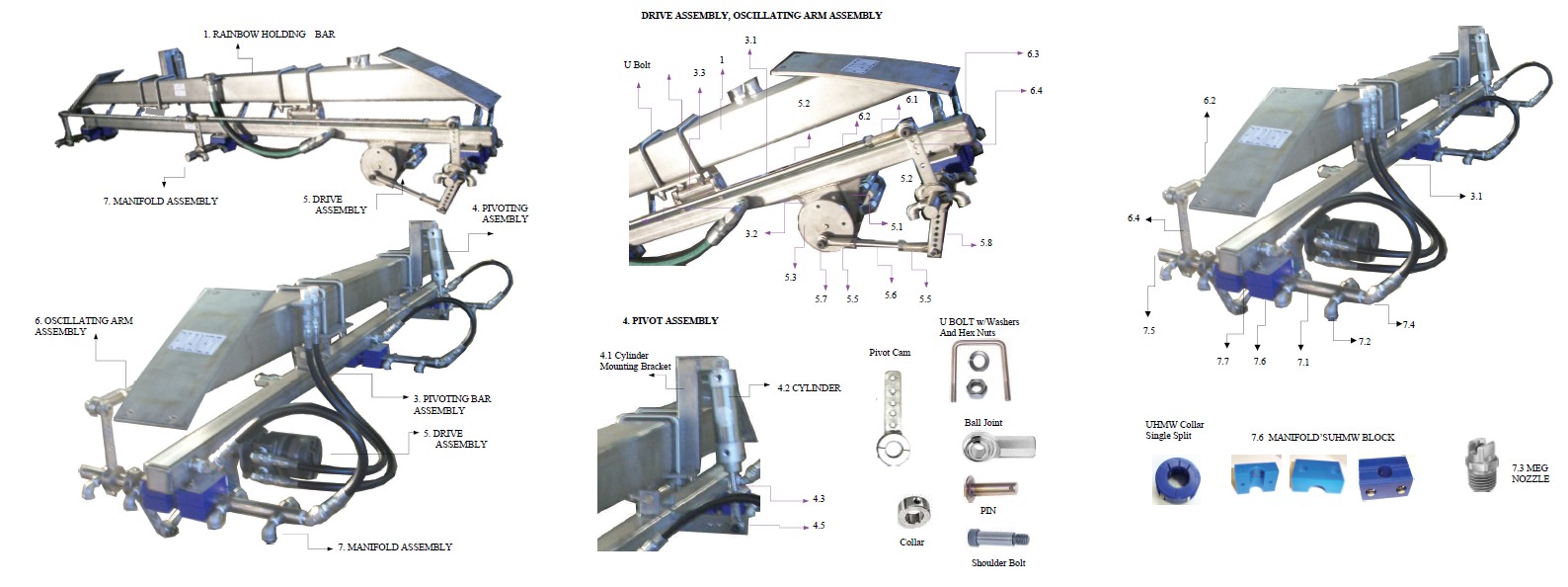

PIVOTING OSCILLATING HIGH PRESSURE ARCH , MODEL R-POT1: TOP MANIFOLD
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-PO1A | HOLDING TOP BAR | 1 | 1 | ||
|
|
UB-SQ0375x1400 | w/SQ.U BOLTS 3/8’’ SIZE and | 2 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 4 | |||
| HN3820 | HEX NUTS 3/8’’ | 4 | |||
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 2 | 1 |
|
|
| R-PO1CH | PIVOTING BAR ASSEMBLY | 3 | 1 | ||
| R-PO1CHA | PIVOT BAR | 3.1 | 1 | ||
| RT1AAC | MOTOR MOUNT WELDED TO PIVOT | 3.2 | 1 | ||
|
|
PO1C | PIVOT ASSEMBLY | 4 | 1 | |
| PO1CB | CYLINDER MOUNTING BRACKET | 4.1 | 1 | ||
|
|
AC2x3 | CYLINDER | 4.2 | 1 | |
| BJ1/2-20 | BALL JOINT ROD END1/2-20 | 4.3 | 1 | ||
| JN1220 | JAM NUT | 1 | |||
| SB1ADB1 | SHOULDER BOLT 1/2’’ | 1 | |||
| HN1216 | -w/ HEX NUT 1/2’’ | 1 | |||
| PO1-CAM2 | PIVOT CAM | 4.5 | 1 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 5.2 | 1 | ||
| SAE0702-8-8 | 90° ELBOW 1/2’’JICx1/2’’NPT | 2 | |||
| SB2ADBA | Oscillating Disk | 5.3 | 1 | ||
| HN1420 | Hex nut ¼ ”-20 | ||||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | 5.4 | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 5.5 | 2 | |
|
|
HN1213 | HEX NUT 1/2’’ | 2 | ||
| FW38 | WASHERS 3/8” and | 2 | |||
| NLN1213 | Nylon Lock Nut ½”-13 | 1 | |||
| PO1CBB1-38 | CAM | 5.8 | 1 | ||
| EL90S304025 | 90°STREET ELBOW 1/4’’x1/4’’, (8/PER MANIFOLD) | 7.2 | 24 | ||
|
|
1-4MEG-0504 | NOZZLE 1/4’’ MEG 0504 (8/PER MANIFOLD) | 7.3 | 24 | |
|
|
PLUGPP050 | PLUG 1/2”, (1/PER MANIFOLD) | 7.5 | 3 | |
| PO1C1 | PIVOT UHMW BLOCK | 7.6 | 6 | ||
| HHCS1420200 | BOLT | 12 | |||
|
|
RT1DDA | UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD) | 7.7 | 13 | |
| HHCS1420150 | BOLT | 3 | |||
| SAE100R7-06x27 | HYDRAULIC HOSE 1 | 8.1 | 1 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | 4 |
