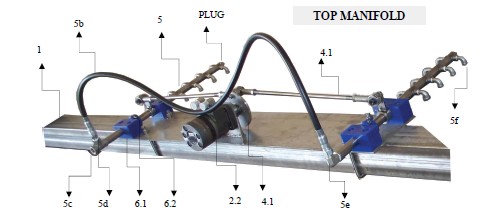

RAINBOW OSCILLATING HIGH PRESSURE TOP and SIDE ARCH-R-OS1: TOP MANIFOLD

Part#	Description	Diagram Part #	Quantity
R-AA0	RAINBOW ARCH—2-1/2’’	C	1
R-OS1B	HOLDING TOP BAR RAINBOW w/	1	1
UB-SQ050x300(?)	3’’ ROUND U BOLTS (1/2’’ SIZE) w/		4
OS1C	TOP OSCILLATOR ASSEMBLY	2	1
OS1CA	w/PLATE	a	1
UB-SQ0375x1400	w/SQ.U BOLTS 3/8’’ SIZE and	b	2
FW38	WASHERS 3/8” and	c	4
HN3816	HEX NUTS 3/8’’	d	4
TB1ADBM	HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.]	2.2	1
SAE070202-8-8	Fitting 90° elbow ½” NPTM x ½” JIC	-	2
SB2ADBA	Oscillating Disk	4	1
HN1420	Hex nut ¼ ”-20	-	2
OS1CBB-17	OSCILLATING ARM ASSEMBLY	401	2
BJ1/2-20	BALL JOINT ROD END1/2-20	-	4
SB1ABD1	SHOULDER BOLT 1/2’’x2’’LG	-	4
OS1CBB1-17	TREADED ROD 1/2’’ x 17’Lg	-	2
PO1-CAM1	CAM ARM	-	2
OS1DMA	TOP MANIFOLD, 24’’LG	5	2
1-4MEG-0504	NOZZLE 1/4’’ MEG 0504 (8/PER MANIFOLD)	5a	16
SAE070102-8-8	1/2’’JIC -1/2’’NPT, MALE	5d	1
SAE020202-8-8	90°1/2’’JIC -1/2’’NPT, MALE	5e	1
EL90-5-304025	90° Street ELBOW 1/4” NPT, Stainless Steel	5f	16
PLUGPP050	PLUG 1/2”, (1/PER MANIFOLD)	5g	2
PO1C2	UHMW BLOCK MANIFOLD	6.1	4
RT1ODA	UHMW SPLIT COLLAR, 1’’O.D.	6.2	2
