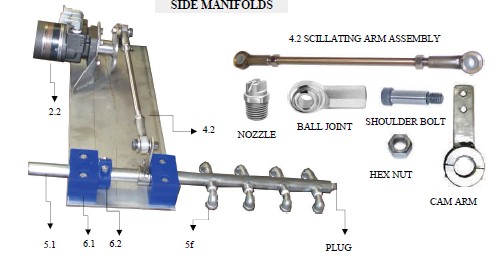

RAINBOW OSCILLATING HIGH PRESSURE TOP and SIDE ARCH-R-OS1: SIDE MANIFOLDS

Part#	Description	Diagram Part #	Quantity
OS1D	Side Oscillator	6	1
UB-SQ0375x1400	w/SQ.U BOLTS 3/8’’ SIZE and	b	2
FW38	WASHERS 3/8” and	c	4
HN3816	HEX NUTS 3/8’’	d	4
TB1ASBM	HYDRAULIC MOTOR, 1/PER SIDE	2.2	2
SAE070202-8-8	Fitting 90° elbow ½” NPTM x ½” JIC	-	4
SB2ADBA	Oscillating Disk	4	2
HN1420	Hex nut ¼ ”-20	-	2
OS1CBB-13	OSCILLATING ARM ASSEMBLY , 1 /PER SIDE	4.2	2
BJ1/2-20	BALL JOINT ROD END1/2-20	-	4
SB1ABD1	SHOULDER BOLT 1/2’’x2’’LG	-	4
OS1CBB1-13	d THREDED ROD, 1/PER SIDE	-	2
PO1-CAM	CAM ARM, 1/PER SIDE	-	2
1-4MEG-0504	NOZZLE 1/4’’ MEG 0504 (8/PER MANIFOLD)	5a	16
EL90-S-304025	90° Street ELBOW 1/4” NPT, 8/PER SIDE , Stainless Steel	5f	16
PLUGPP050	PLUG 1/2”, (1/PER MANIFOLD)	5g	2
PO1C2	UHMW BLOCK MANIFOLD	6.1	4
RT1ODA	UHMW SPLIT COLLAR, 1’’O.D.	6.2	2
