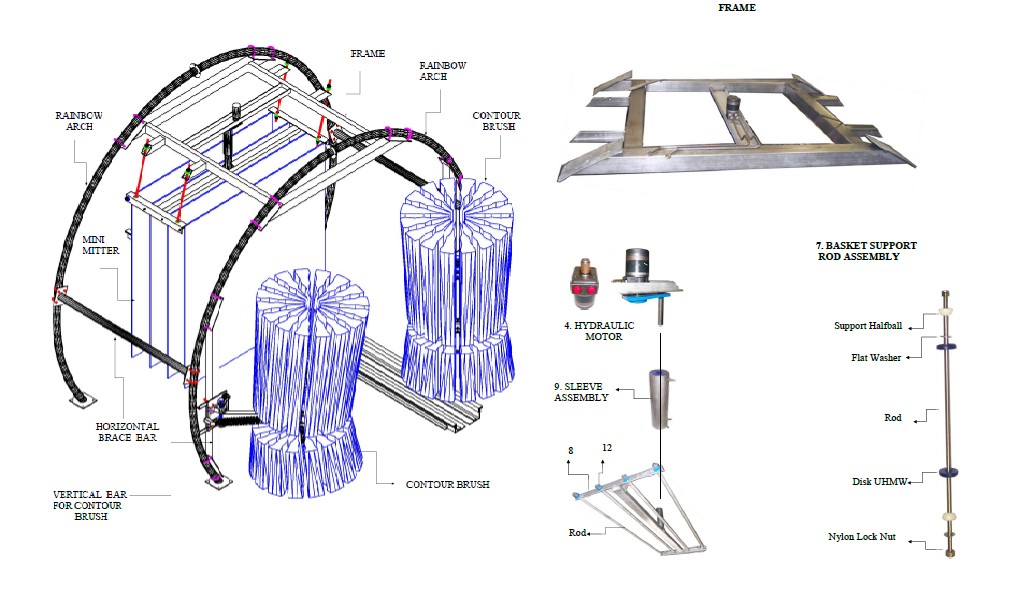

MINI MITTER Model MM5
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 1 | 2 |
|
|
| HBB-21SCH40-60 | HORIZONTAL BRACE BARS | 1.1 | 2 | ||
| UB-R050x300x105 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE | 8 | |||
| R-MM5B-7 | FRAME ASSEMBLY | - | 1 | ||
| R-MM5BA-7 | Frame | 2 | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 3 | 16 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 8 | |||
| MC2BB-1104 | Basket Drive Assembly: | - | 1 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 4 | 1 | |
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 2 | ||
| MC2BBA-P1-1-0106 | Cam Arm (w/welded weld-on hub) | 5 | 1 | ||
| P1 1” | Split Taper Bushing P1 1” | 6 | 1 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 7 | 4 | |
|
|
MC1C1 | Basket support Rod ½” x 27” lg. | - | 4 | |
|
|
MC1C2 | Basket support Disk UHMW | - | 8 | |
|
|
MC1C3 | Basket support Halfball | - | 8 | |
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
| NLN1213 | Nylon Lock Nut ½”-13 | - | 8 | ||
| MM5D-7 | BASKET ASSEMBLY | - | 1 | ||
| MM4DA-7 | Basket Frame 7’ | 8 | 1 | ||
|
|
MC1DB | Sleeve Assembly | - | 1 | |
|
|
MC1DB1 | Sleeve | 9 | 1 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | - | 1 | |
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | 10 | 3 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 3 | ||
|
|
MC2DC | Curtain Rod Assembly | 11 | 4 | |
|
|
MC2DCA | Curtain Rod 7’4”lg. | - | 4 | |
| MC1DC2-3/4x2x3/8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | 12 | 8 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | 16 | |||
| MC1E | CURTAIN (CLOTH) | 14 | 36 | ||
| R-MM5L | HYDRAULIC & WATER INSTALLATION | - | |||
| MM5BC | Top Water manifold Assembly: | - | 1 | ||
| MM5BCA | Top Water Manifold (straight, tubing 1” O.D. x 96” lg. w/9 water outlets) | - | 1 | ||
| SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 1 | ||
| BRB1/2x1/2 | Barb ½” x ½” NPTM | - | 1 | ||
| NZ1/4 | Nozzle ¼” NPTM | - | 9 | ||
| MC1BD | Beam Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 2 | ||
| SAE010115-8 | Tube Support Sleeves ½” JIC | - | 8 | ||
| SAE070110-8 | Nuts ½” JIC | - | 8 | ||
| DMP1/2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) | - | 10 |
