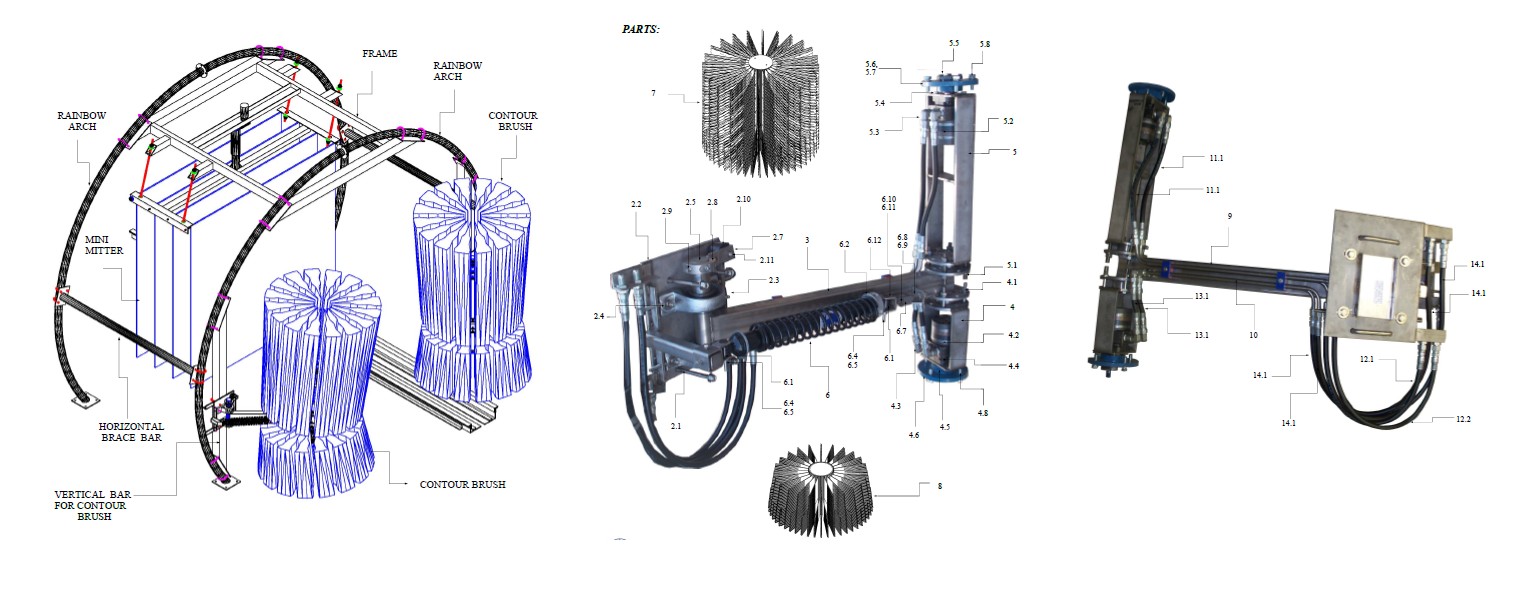

RAINBOW CONTOUR BRUSH w/MINI MITTER -AVW Style, Model R-CB0405MM5: PASSENGER'S SIDE


RAINBOW CONTOUR BRUSH w/MINI MITTER -AVW Style, Model R-CB0405MM5: PASSENGER'S SIDE

SKU Details


Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
R-CB1AA VERTICAL BAR 1.0 1
R-OS1A Vertical Bar (w/Round U-Bolts 1/2”)
R-OS1AA Vertical Bar ONLY
CB0405B CONTOUR BRUSH SIDE - 1
CB0405BB ARM MOUNT ASSEMBLY 2 1
RB2ABB Square U-Bolt Fastener set 1/2’’ 2.1 2

RB2ABB1 Square U-Bolt 1/2’’x17’’lg 2
SLW1/2 Split Lock Washer 2
HN1213 HEX NUT 1/2’’ 2
CB0405ABA ARM MOUNT 2.2 1

WA1WB PILLOW BLOCK 2” 2.3 2
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 2

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 2

CB04905SH SHAFT 2’’ x 14-1/4’’LG 2.5 1
CB0405AC BUMPER ASSEMBLY 2.6 1

CB0405ACA 2-Piece BUMPER MOUNT 2.7 1
HHCS3816150 Hex Head Cap Screw 3/8’’-16x1-1/2’’lg 2

SLW 3/8 Split Lock Washer 3/8’’ 2
HN3816 HEX NUTS 3/8’’ 1

WA1DBB Rubber Bumper 1

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D 1
CB0405DAx32 ARM 3 3

RB1AE BRUSH DRIVE LOWER ASSEMBLY - 1

RB1AEA MOTOR MOUNT ( 8’’ LG ) 4 1

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. 4

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 4.2 1
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 4.3 1
HHCS3816075 w/Hex Head Screw 4.4 4

P1 1 (0106) (connection of the motor with the motor mount) 4.5 1
SSS1420050C SPLIT TAPER BUSHING 1” 2

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 4.6 1

MC2BBA3-P1-0106 BRUSH CONNECTING DISK 4.7 4
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) 4

RB2AE BRUSH DRIVE UPPER ASSEMBLY - 1

THRD1213400 (connection of the brush with disk): 4
RB1AF SHOCK ABSORBER ASSEMBLY - 1

RB1AFA SPRING SHOCK ABSORBER 6 1
RB1AFA1 UHMW bushing 3/8”I.D 6.1 2

RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 6.2 1

RB2AFB1 Aluminum adjuster (2-piece collar) 1

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. 2

HN1420 Hex nut ¼ ”-20 2

RB1AFC Plastic spacer 6.3 1

TB1AEA PIN Ø 3/8” x 3” LG. 6.4 2

WA1FC COLLAR 3/8” 6.5 2

RB1AG FRONT MOUNT: 6.6 1

WA2GA1 Clevis 6.7 1

WA2GA2 Threaded rod ½” -13x5”LG. 6.8 1

WA1GB Pin 3/8”x1½”lg. 6.10 1

RB1AGA Shock mount 6.12 1

CB0405AM-51 UPPER BRUSH 51” ASSEMBLY 7 1
CB1AMA-51 Brush Cloth 7.1 1
CB1AMC-51 Aluminum Extrusion 7.2 2
CB1AMB-51 Two-piece Collar 1½”x12 core 7.2 2
CB0405AM-21(28’’) LOWER BRUSH 21” ASSEMBLY: 8 1
CB1AMA-21(28) Aluminum Extrusion 8.1 1
CB1AMC-21(28) Two-piece Collar 1½”x12 core 8.2 2
CB1AMB-21(28) Screw Fastener Set 3/8”, for collar 8.3 2
CB0405LP HYDRAULIC TUBE INSTALLATION - 1
CB0405LDA HYDRAULIC TUBE ASSEMBLY (UPPER): 9 2
CB0405LDA1x26 Hydraulic Tube ½ ”O.D.xW.035”X26’’LG, stainless steel 9.1 2

SAE070115-8 Tube support sleeves ½” JIC 9.2 4
SAE070110-8 Nuts ½” JIC 9.3 4
SAE070201-8-8 Fitting 90°elbow ½” JIC x ½ ”JIC 9.4 2
CB0405LDAx22 HYDRAULIC TUBE ASSEMBLY (LOWER): 10 2
CB0405LDA1x22 Hydraulic Tube ½ ”O.D.xW.035”X22’’LG, stainless steel 10.1 2

CB0405HD HYDRAULIC HOSE INSTALLATION : - 1
CB0405HDA HYDRAULIC HOSE ASSEMBLY (UPPER 11 2
SAE100R7-06x15 11.1 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 11.2 4

CB0405LDDx27 12.1 2
SAE100R7-06x27 HYDRAULIC HOSE 1 12.2 4
FC5807-0806 Crimp Fitting SAE 37° JIC male flare 12.3 2

SAE 700601 Fitting– straight bulkhead 1/2’’JIC x 1/2’’JIC, Brass 12.4 2
CB00405HDB 13 2
SAE100R7-06x5 13.1 2
CB0405LDDx36 14 2
SAE100R7-06x36 14.1 2
SAE 700601-8-8 14.4 2
