MM5-EL Mini Mitter Electric Drive

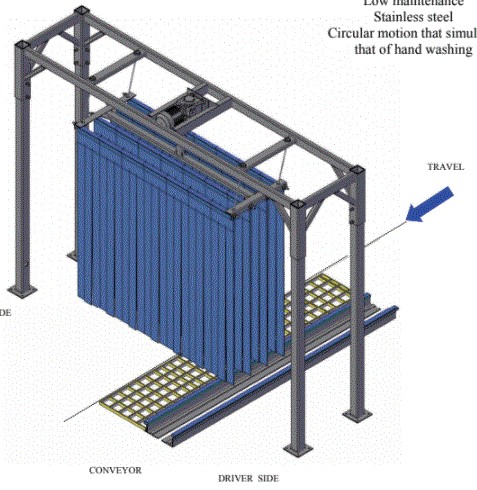

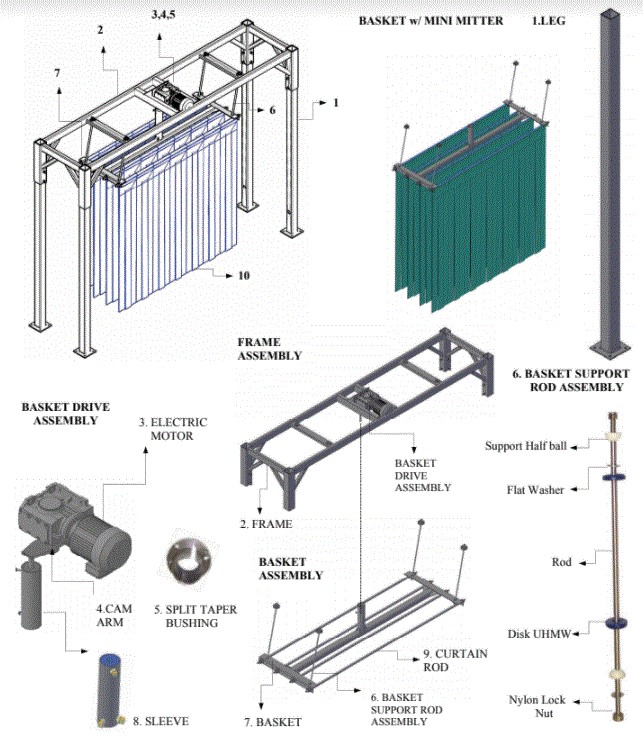

Part#	Description	Diagram Part #	Quantity
MM5B-7-EL	FRAME ASSEMBLY:	-	1
MM5BA-7-EL	FRAME	2	1
SQHS1213150	Square Head Screw ½” – 13 x 1½” LG. (for sleeves)		16
HHCS1213125	Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted)		8
MM4BB-EL	BASKET DRIVE ASSEMBLY:	-	1
GRMTR2HP--48-230-460	Electric Gear Motor, El. Motor SK9012.1-100L/4-41.65-A (Angled)		1
GRMTR2HP--48-380	Gear Drive: RPM 76, Ratio 41.65, HP 1.0, V 230/460, PH 3, Hz 60/50	3	2
MC2BBA-P1-0615	Cam Arm (w/welded weld-on hub)	4
STB-P1X138	plit Taper bushing P1 1-3/8”	5
HHCS3816075	w/Hex Head Screw	-	4
MC1C	BASKET SUPPORT ROD ASSEMBLY:	6	4
MC1C1-102307	Basket support Rod ½” x 27” lg.	-	4
MC1C2	Basket support Disk UHMW	-	8
MC1C3	Basket support Halfball	-	8
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.	-	8
NLN1213	Nylon Lock Nut ½”-13	-	8
MM5D-7	BASKET ASSEMBLY	-	1
MM4DA-7	Basket Frame 7’	7	1
MC1DB	Sleeve Assembly	-	1
MC1DB1	Sleeve	8	1
MC1DB2	UHMW Bushing 1” I.D.	-	1
SQHS3816075	Square Head Screw 3/8”-16x ¾” lg.	-	3
MC2DC	Curtain Rod Assembly	9	4
MC2DCA	Curtain Rod 7’4”lg.	-	4
MC1DC2-3-4x2x1-8	Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width	-	8
PLHN3410	Plastic Hex Nut ¾”-10		16
MC1E	CURTAIN (CLOTH)	10	36
MM5L	HYDRAULIC & WATER INSTALLATION	-
WA1LA	Side Water Manifold Assembly (on exit legs):	-	2
WA1LAA	Manifold	-	2
SAE140109E-8	Hex Head Plug ½” NPTM (white plastic)	-	2
BRBPP050x050	Barb 1/2”x ½” NPTM	-	2
NZ1-4	Nozzle ¼” NPTM	-	10
PPP3-4	Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20)	-	4
