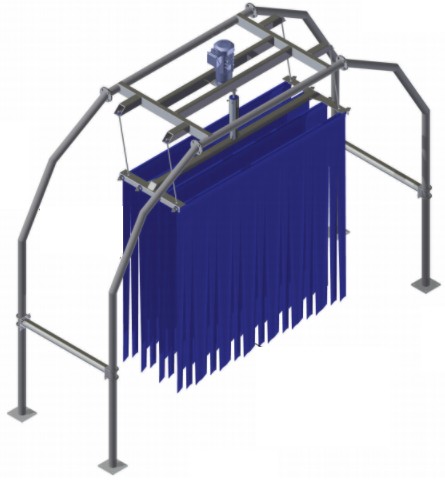

OT-MM5 MINI MITTER OCTALINE
The AVW Stainless Steel Mini Mitter Octaline has a unique basket motion that provides aggressive motion on the vehicle surface not just at the top of the basket. It is constructed of high grade stainless steel. telescopic height adjustment allows for
easy installation even in settings with limited or obstructed heights. There are no bearings to grease on this unit.

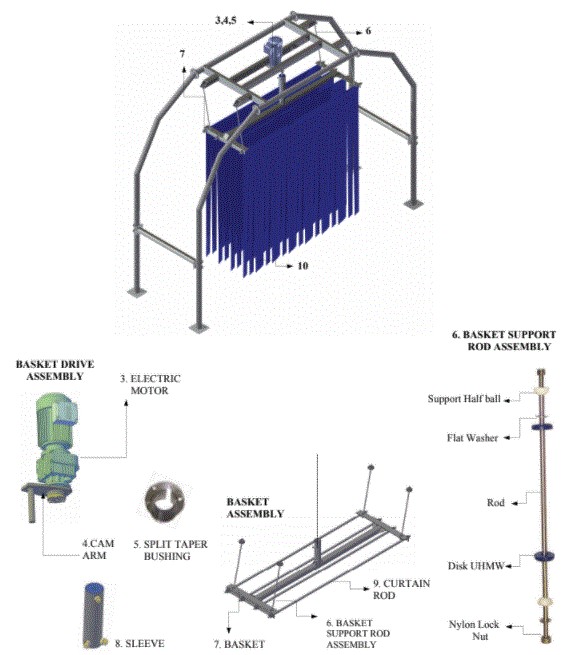

SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| OT-AA0A | OCTALINE LEG ASSEMBLY | 1 | 4 | ||
| HHCS1213150 | Hex Head Cap Screw 1/2”-13 x 1 1/2” LG | 16 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 16 | |||
|
|
SLW12 | Split Lock Washer 1/2” | 16 | ||
| HBB-21SCH40-42 | HORIZONTAL BRACE BARS | 1.1 | 4 | ||
|
|
UB-R050x300x1100 | 3’’Round U -Bolts 1/2” Size | 8 | ||
| OT-MM5B-7 | FRAME ASSEMBLY: | - | 1 | ||
| OT-MM5BA-7 | FRAME | 2 | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 16 | |||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 8 | |||
| MC2BB-1104 | BASKET ELECTRIC DRIVE ASSEMBLY: | - | 1 | ||
|
|
GRMTR1-5HP-81-230-460 | Electric Motor, displacement 11.9{cu.in./rev.} | 3 | 1 | |
|
|
MC2BBA-P1-0615 | Cam Arm (w/welded weld-on hub) | 4 | 1 | |
| STB-P1X118 | Split Taper Bushing P1 1 1/8” | 5 | 1 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 6 | 4 | |
| MC1C1-102307 | Basket support Rod ½” x 27” lg. | - | 4 | ||
|
|
MC1C2 | Basket support Disk UHMW | - | 8 | |
|
|
MC1C3 | Basket support Halfball | - | 8 | |
| NLN1213 | Nylon Lock Nut ½”-13 | - | 8 | ||
| MM5D-7 | BASKET ASSEMBLY | - | 1 | ||
| MM4DA-7 | Basket Frame 7’ | 7 | 1 | ||
|
|
MC1DB | Sleeve Assembly | - | 1 | |
|
|
MC1DB1 | Sleeve | 8 | 1 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | - | 1 | |
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 3 | ||
|
|
MC2DC | Curtain Rod Assembly | 9 | 4 | |
|
|
MC2DCA | Curtain Rod 7’4”lg. | - | 4 | |
| MC1DC2-3-4x2x1-8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | - | 8 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | 16 | |||
| MC1E | CURTAIN (CLOTH) | 10 | 36 | ||
| MM5L | HYDRAULIC & WATER INSTALLATION | - | |||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
| SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 2 | ||
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | |
| NZ14 | Nozzle ¼” NPTM | - | 10 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 |
