HPU1 1-PORT HYDRAULIC POWER UNIT
The AVW 1-PORT HYDRAULIC POWER UNIT features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage of fluid from controls on the floor. Fabricated from Stainless Steel.
Product Features:
- Heavy Duty Stainless Steel
- Multiple Banks
- Contained Controls
- 1-Port
- Clean Design
- ELECTRICAL MOTOR: 7.5 HP, 1765RPM
- PUMP : 9.67 GPM max at 1760RPM
- DIMENSION: 30’’Wx16’’Dx 36’’H
- TANK: 30”Wx 16’’Dx 20”H

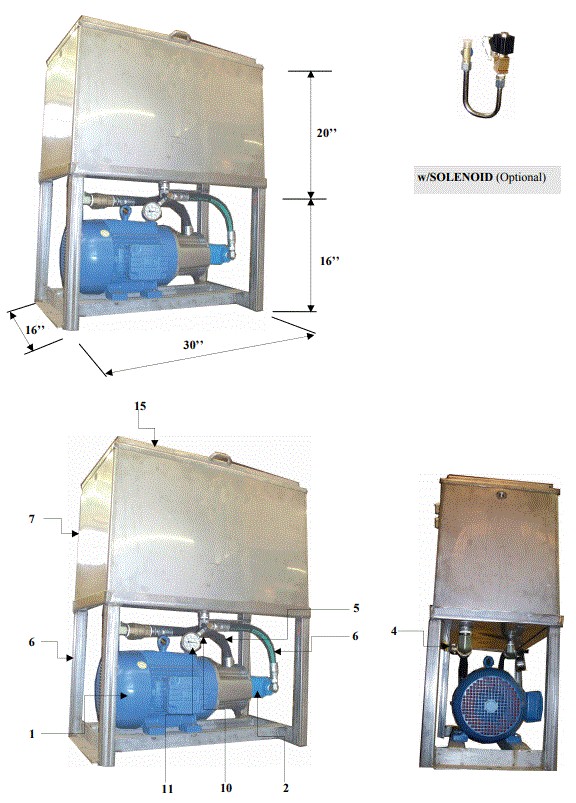

SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| EM07.5-1800-0807 | ELECTRICAL MOTOR 7.5 HP, 1765RPM, C-Face, Frame 213TCY (Shaft Dia. 1-3/8”), TEFC Enclosure Volts 208-230/460, Amps 21-18.8/9.4 Type P, 60 Hz, 3 Phase, Power Factor 0.82 | 1 | 1 | ||
| GP09-0807 | “PARKER” GEAR PUMP displacement 1.27 [cu.in./rev.], 9.67GPM (at 1760RPM) shaft dia. Æ7/8” straight | 2 | 1 | ||
| EL90STL125JIC1625ORB | GEAR PUMP INLET ELBOW 90° 1 1/4 JIC 37° Flare x 1-5/8”-12 UN/UNF-2A ORB, Steel | 2a | 1 | ||
| EL90STL075JIC10625ORB | GEAR PUMP OUTLET ELBOW 90° 3/4 JIC 37° Flare x 1-1/16” ORB, Steel | 1 | |||
| HPU1-PL | Flexible Shaft Coupling, motor shaft diameter ø1-1/8", pump shaft diamet... | 3 | 1 | ||
| HPU1-SP | w/SPIDER | 1 | |||
| BH0807-F2B | BELL HOUSING | - | 1 | ||
| BV11-4 | BALL VALVE 1 1/4” | 4 | 1 | ||
| HPU1-NH | INTAKE HOSE 3/4"I.D. x 16-1/2"LG. | 5 | 1 | ||
| HPU1-DH | DISCHARGE HOSE (PRESSURE LINE): | 6 | 1 | ||
| HPU1-T | TANK 30” LG x 16”W x 20” H w/Two Couplings 3/4“ (welded, for Radiator) | 7 | 1 | ||
|
|
SS150 | HYDRAULIC SUCTION STRAINER, port 1 1?2” NPT | 8 | 1 | |
| RBSAE140140-24-20 | w/Reducer Bushing 1½”NPT male x 1¼”NPT female | 1 | |||
| GP1500 | GAUGE 0-3000PSI bottom connection 1?4 ”, liquid filled | 10 | 1 | ||
| NV1-4-1007 | MINI BALL VALVE- -1/4"NPT Male x female | 11 | 1 | ||
|
|
FC08 | FLOW CONTROL (SPEED CONTROL) 0-8GPM | 12 | 2 | |
| EL90STL050JIC0375FNP | Elbow 90 1/2” JIC | 2 | |||
| UNNELBLKHDSTL050JIC | Elbow Bulkhead 1/2”JIC | 2 | |||
| HPU1DC2-3-4X112X1-8 | Plastic Spacer 1/8” | 2 | |||
|
|
LLS1-SS | LOW LEVEL SWITCH (w/pipe 12”LG.) | 13 | 1 | |
| HPU1-A | STAND (Legs: sq.tub, 1-1/2” x 1-1/2” x 16”LG.) | 14 | 1 | ||
| HPU1-V | COVER (LID) | 15 | 1 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| SL120 | SOLENOID 120VAC (OPTIONAL) | 16 | 2 |
