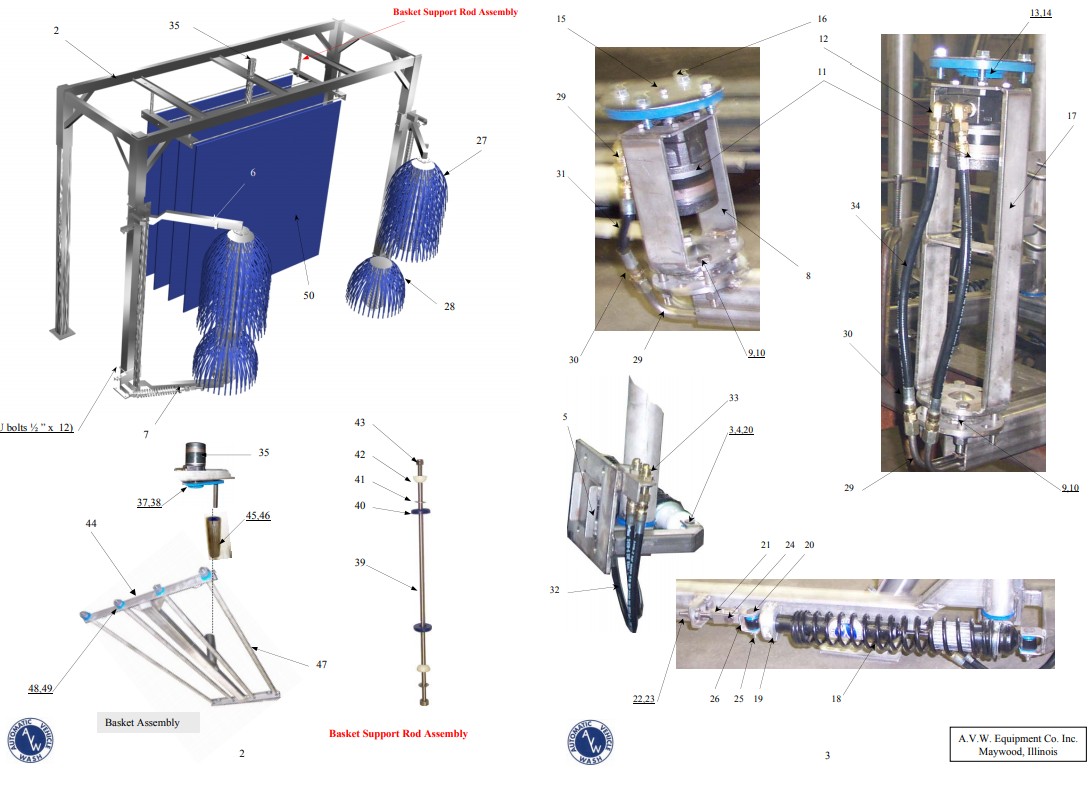

CB1MM5 - Mini Mitter Assembly

Part#	Description	Diagram Part #	Quantity
MC2BB-1104	Basket Drive Assembly:	-	1
WA1KM	Hydraulic Motor, displacement 11.9 [cu.in./rev.]	35	1
SAE070302-8-8	Fitting 45° elbow ½” NPTM x ½ ” JIC	36	2
MC2BBA-P1-1-0106	Cam Arm (w/welded weld-on hub)	37	1
STB-P1X100	Split Taper Bushing P1 1”	38	1
HHCS3816075	w/Hex Head Screw	-	4
MC1C	BASKET SUPPORT ROD ASSEMBLY:	-	4
MC1C1	Basket support Rod ½” x 27” lg.	39	4
MC1C2	Basket support Disk UHMW	40	8
MC1C3	Basket support Halfball	42	8
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.	41	8
NLN1213	Nylon Lock Nut ½”-13	43	16
MM5D-7	BASKET ASSEMBLY	-	1
MM4DA-7	Basket Frame 7’	44	1
MC1DB	Sleeve Assembly	-	1
MC1DB1	Sleeve	45	1
MC1DB2	UHMW Bushing 1” I.D.	46	1
SQHS3816075	Square Head Screw 3/8”-16x ¾” lg.	10	3
HN3816	HEX NUTS 3/8’’	-	3
MC2DC	Curtain Rod Assembly	-	4
MC2DCA	Curtain Rod 7’4”lg.	47	4
MC1DC2-3-4x2x1-8	Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width	48	8
PLHN3410	Plastic Hex Nut ¾”-10	49	16
MC1E	CURTAIN (CLOTH)	50	36
MM5L	HYDRAULIC & WATER INSTALLATION	-
MM5BC	Top Water manifold Assembly:	-	1
MM5BCA	Top Water Manifold (straight, tubing 1” O.D. x 96” lg. w/9 water outlets)	-	1
SAE140109E-8	Hex Head Plug ½” NPTM (white plastic)	-	1
BRBPP050x050	Barb 1/2”x ½” NPTM	-	1
NZ14-08E15	Nozzle	-	9
MC1BD	Beam Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20)	-	2
SAE010115-8	Tube Support Sleeves ½” JIC	-	8
SAE070110-8	Nuts ½” JIC	-	8
DMP12	UHMW DAMPING CLAMP 1/2“,	-	10
