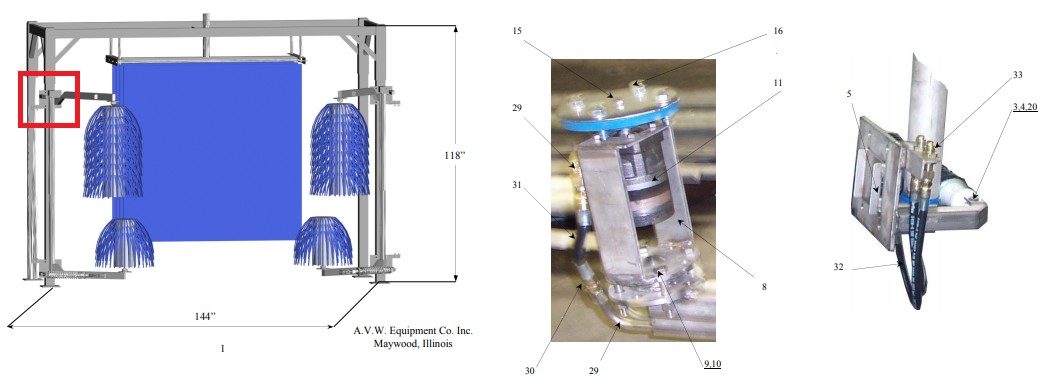

CB1MM5 HYDRAULIC INSTALLATION - UPPER BRUSH - PASSENGER SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| RB2LP | (UPPER BRUSH): | - | 1 | ||
| RB1LPA | Hydraulic Tube Assembly: | 29 | 2 | ||
| RB1LPA1x37 | Hydraulic tube ½ ”O.D.xW.035”X37’’LG, stainless stee | - | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | 4 | ||
| SAE070110-8 | Nuts ½” JIC | - | 4 | ||
| RB1LTC1-2 | Tube Clamp ½ ” | - | 2 | ||
| SAE070201-8-8 | Fitting 90°elbow ½” JIC x ½ ”JIC | 30 | 2 | ||
| RB2LDB | HYDRAULIC HOSE ASSEMBLY : (for Motor) | 31 | 2 | ||
| SAE100R7-06x22 | WATER HOSE 3/8’’x 22’’ LG | - | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| RB1LDD | Hydraulic Hose Assembly; | 32 | 2 | ||
| SAE100R7-06x18 | Hydraulic hose 3/8”I.D.x18”lg., thermoplastic | - | 2 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | 33 | 2 |
