PSD10-H25 COMBO PUMPING STATION 8GPM and 20GPM
SKU Details

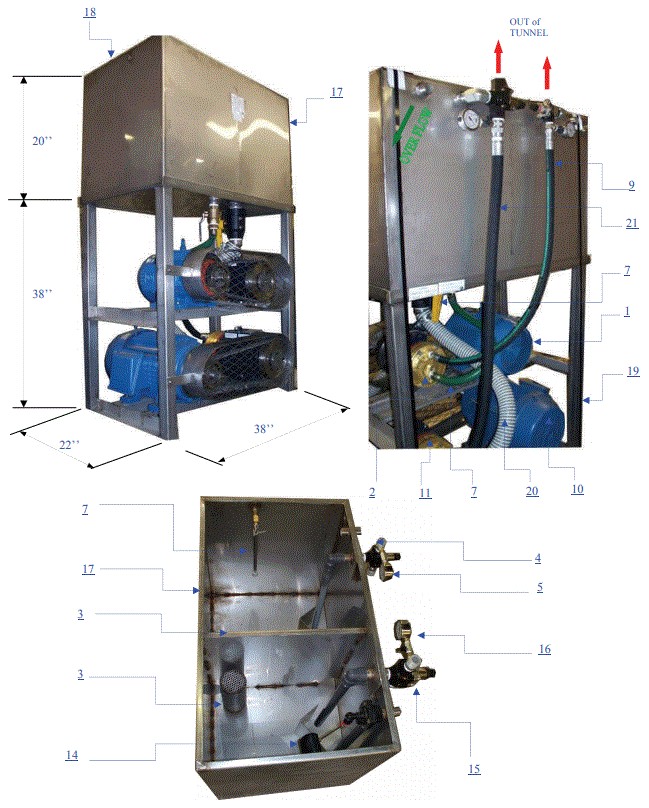

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| PSD10-DH | DISCHARGE HOSE (PRESSURE LINE) 3/4”I.D. x 43”LG., Aeroquip | 9 | 1 | ||
| EM7.5-1800-213TC | ELECTRICAL MOTOR - 7.5HP, 1770RPM, Frame 213TC C-Face, (Shaft Dia. 1-3/8’’), Volts 208-230/460, Amps 21.7-19.6/9.80, 60Hz, 3Phase | 1 | 1 | ||
|
|
PSD10-P08 | PUMP- Hydra-Cell -"Wanner Engineering”-Pump Displacement 1.27(cu.in/rev) 8GPM max at 1150RPM max (For this AVW Pumping Station : 8GPM at 1450RPM & 1085PSI) Inlet Port 1’’NPT, discharge port 3/4’’NPT, Shaft Dia. Ø7/8’’ | 2 | 1 | |
| BRB100x100 | BARB (HOSE NIPPLE) 1” x 1”NPT male (mounted to Pump’s inlet 2-1/2’’NPT), plain steel | - | 1 | ||
|
|
SHV-33V500SDS | MOTOR PULLEY - 5.00”O.D “APEX” | - | 1 | |
|
|
SHV-33V800SK | PUMP PULLEY - 8.00”O.D “APEX” | - | 1 | |
|
|
VBELT3R475 | V-BELT 47-1/2”LG. (center distance 13-1/4”) | - | 1 | |
|
|
STB-SDS138 | SPLIT TAPER BUSHING 1-3/8" , for motor Shaft | - | 1 | |
| STB-SK078 | SPLIT TAPER BUSHING 7/8” , for pump Shaft | - | 1 | ||
| PSD10-SS10 | A.V.W. HYDRAULIC SUCTION STRAINER, port size 1-1/4NPT, Ø4” x 8’’ height, perforated metal | 3 | 1 | ||
|
|
PSD10-RV10 | PRESSURE REGULATING VALVE, capacity 3-10GPM, 500-1000PSI, port size 3/4”NPT ? Wanner Engineering | 4 | 1 | |
| PSH25-PDT1x18 | BLACK PVC PIPE 1"sch 80 x 18" LG (Discharge Down Tube) | - | |||
|
|
LLS1 | LOW LEVEL SWITCH 1/4 (w/pipe 12”LG.) ? Madison Co | 7 | 1 | |
| PSD10-PC | GUARD (PULLYS COVER) | - | 2 | ||
| PSD10-NH | INTAKE HOSE PVC 1-1/4”I.D. x 25”LG. | 8 | 1 | ||
| PSD10-NH-C | INTAKE HOSE CLAMP (Range 11/16’’-1-1/4’’) “Breeze” | - | 2 | ||
|
|
EM15-1800-254TC | ELECTRICAL MOTOR - 15HP, 1750RPM, Frame 254TC C-Face, (Shaft Dia. 1-5/8’’), Volts 230/460, Amps 36.6/18.3, 60Hz, 3Phase | 10 | 1 | |
| BRB200x150 | 12° BARB (HOSE NIPPLE) 2” x 1½”NPT male (mounted to Pump’s inlet), stainless steel | - | 1 | ||
|
|
VBELT3R600 | V-BELT 60”LG. (center distance 19 3/4”) | - | 1 | |
|
|
STB-SDS158 | SPLIT TAPER BUSHING 1-5/8" , for motor shaft | - | 1 | |
|
|
STB-SK118 | SPLIT TAPER BUSHING 1-1/8” , for pump shaft | - | 1 | |
|
|
BV200X200 | PLASTIC BALL VALVE 2”NPT x 2”NPT (mounted to Hydraulic 0053uction Strainer’s pipe 2”) | 12 | 1 | |
| BRB200x200 | 12° BARB (HOSE NIPPLE) 2” x 2”NPT male, stainless steel (mounted to Ball Valve) | - | |||
| FV1-04011 | JOBE TOPAZ” VALVE 1 | 14 | 1 | ||
|
|
PSH25-RV20 | PRESSURE REGULATING VALVE, capacity 3-20GPM, 500-1000psi, port size 1”NPTF, “HYDRA-CELL”, “WANNER ENGINEERING” | 15 | 1 | |
| GP1500 | GAUGE 0-3000PSI bottom connection 1?4 ”, liquid filled | 16 | 1 | ||
| NV1-4-1007 | MINI BALL VALVE- -1/4"NPT Male x female | - | 1 | ||
| PSH25-DH | DISCHARGE HOSE (PRESSURE LINE) 1”I.D. x 22”LG. | 21 | 1 |
