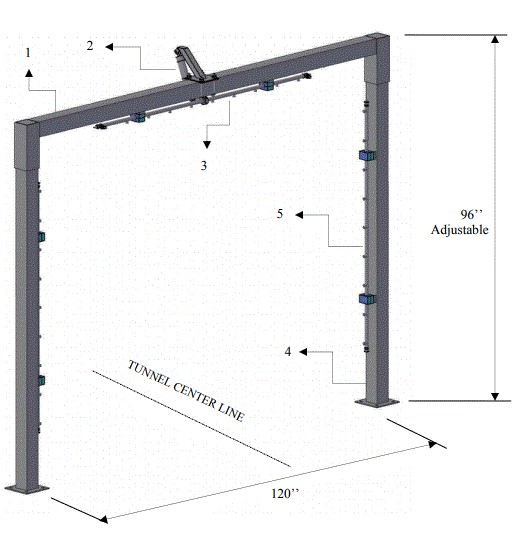

PA1 PIVOTING ARCH
SKU Details

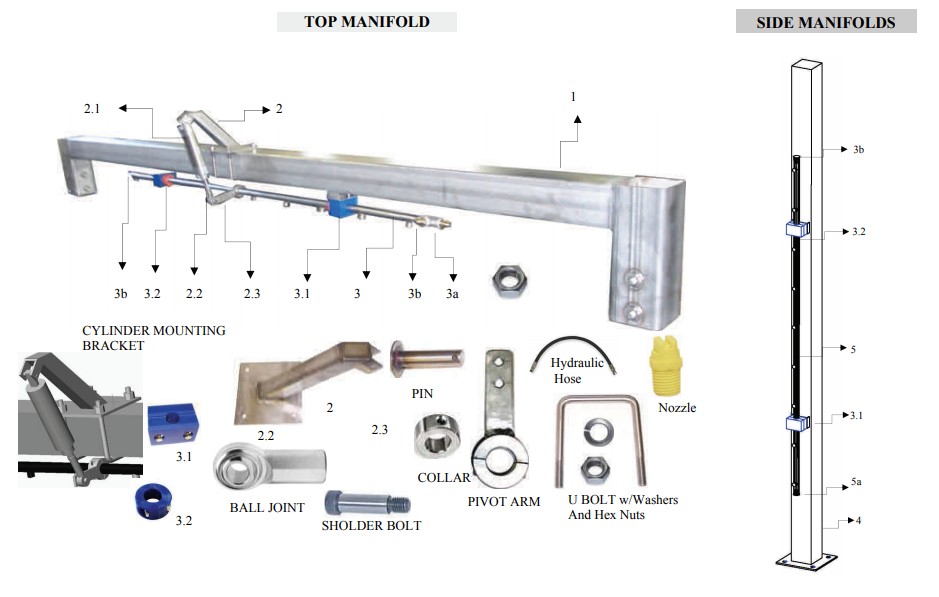

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| PA1A | TOP BAR ASSEMBLY | 1 | 1 | ||
| PA1ADBAAA | Mounting Bracket | 2 | 1 | ||
|
|
UB-SQ0375x1400 | w/SQ.U BOLTS 3/8’’ SIZE and | a | 2 | |
| FV38087 | WASHERS 3/8” and | b | 4 | ||
| HN3820 | HEX NUTS 3/8’’ | c | 4 | ||
|
|
AC2x3 | CYLINDER | 2.1 | 1 | |
| BJ1/2-20 | BALL JOINT ROD END1/2-20 | 2.2 | 1 | ||
| SB1ABD1 | SHOULDER BOLT 1/2’’x2’’LG | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | ||||
| WA1GB | Pin 3/8”x1½”lg. | 1 | |||
| CP3/8 | Cotter Pin | 1 | |||
| PA1-CAM1 | PIVOT ARM | 1 | |||
| PA1ADB-TMA | Pivoting Top Manifold Assembly, Pivoting Arch, includes | 3 | |||
| PA1ADBB | 1” Tubing 72” LG | - | 1 | ||
|
|
NZ14-05E80 | NOZZLE ¼” NPT, Yellow | - | 10 | |
| TEE00050-A | FEMALE TEE 1/2’’, Stainless Steel | 3b | 1 | ||
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | 1 | |||
|
|
PO1C2 | UHMW BLOCK MANIFOLD | 3.1 | 2 | |
|
|
RT1DDA | UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD) | 3.2 | 2 | |
| AA1A | 2-LEGS (w/MANIFOLD) | 4 | 2 | ||
| PA1BDBA | Side Manifold Assembly | 5 | 1 (per side) | ||
| PA1BDBAAA | SIDE MANIFOLD, 64’’ LG | 1 (per side) | |||
|
|
PLUGPP050 | PLUG 1/2”, (1/PER MANIFOLD) | 3b | 1 |
