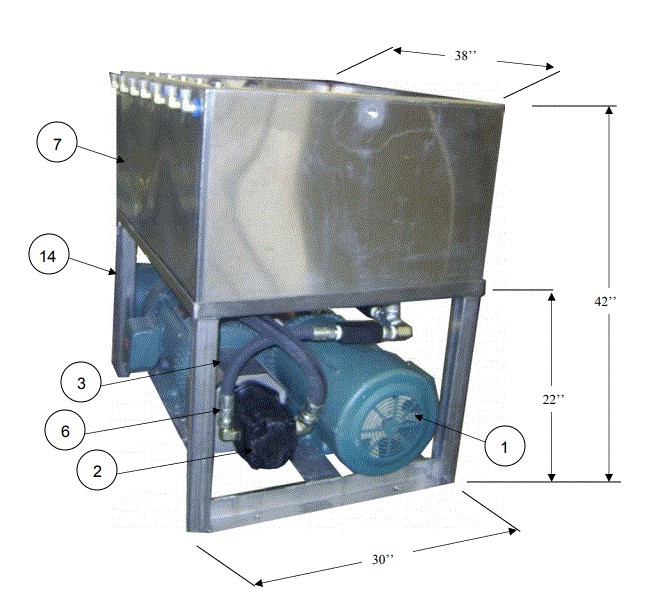

2HPU6 DUAL 6-PORT HYDRAULIC POWER UNIT
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| HPU6-DHT | In tank: 1”I.D. x 16 ½ ”LG. | 6 | 2 | ||
| EM20-1800 | ELECTRICAL MOTOR 20 HP, 1800 RPM Shaft dia. ?1-5/8”, Frame 256T, | 1 | 2 | ||
| GP30 | GEAR PUMP straight shaf | 2 | 2 | ||
| HPU6-PL | 3 | 2 | |||
| HPU6-PLM | 3 | 2 | |||
| HPU6-PLP | 3 | 2 | |||
| HPU6-SP | w/SPIDER | 3 | 2 | ||
| CV1 | 4 | 1 | |||
| HPU6-NH | INTAKE HOSE 1¼”I.D. x 23”LG | 5 | 1 | ||
| HPU6-DHU | DISCHARGE HOSE (PRESSURE LINE): 1”I.D. x 15 ¼ ”LG. | 1 | |||
| HPU6-T | TANK 38’’LGx22’’Wx20H | 7 | 1 | ||
|
|
SS150 | HYDRAULIC SUCTION STRAINER, port 1 1?2” NPT | 8 | 1 | |
| SAE140140-24-20 | w/Reducer Bushing 1½”NPT male x 1¼”NPT female | 8 | 1 | ||
|
|
HPU6-FD6 | FLOW DIVIDER 6-SECTION UNIT | 9 | 1 | |
| SAE140140-16-4 | REDUCER BUSHING 1’’NPT male x 1/4NPT Female | 1 | |||
| NV1/4 | MINI BALL VALVE 1/4” NPT Male x Female (Grainger) (Optional) | 11 | 1 | ||
|
|
FC08 | FLOW CONTROL (SPEED CONTROL) 0-8GPM | 12 | 7 | |
| LLS2 | LOW LEVEL SWITCH (w/pipe 6”LG.) | 13 | 1 | ||
| HPU6-V | COVER (LID) | 1 | |||
| HPU6-A | STAND (Legs: sq.tub, 2” x 2” x 20”LG.) | 14 | 1 | ||
| SAE 070115-8 | TP304/TP304L ASTM A269 | ||||
| SAE 070110-8 | w/tube support sleeves 1/2”JIC, 37° flare, “Aeroquip” (“Parker”) |
