COMBO DOUBLE PUMPING STATION - 8 GPM Model PSD10
SKU Details

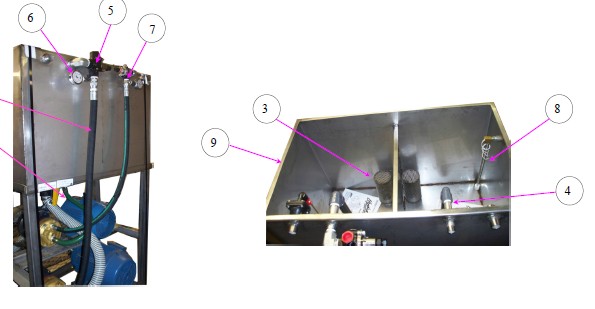

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| EM07.5-1800-213TC | ELECTRIC MOTOR “ELEKTRIMAX” | 1 | 1 | ||
|
|
PSD10-P08 | PUMP- Hydra-Cell -"Wanner Engineering”-Pump Displacement 1.27(cu.in/rev) 8GPM max at 1150RPM max (For this AVW Pumping Station : 8GPM at 1450RPM & 1085PSI) Inlet Port 1’’NPT, discharge port 3/4’’NPT, Shaft Dia. Ø7/8’’ | 2 | 1 | |
| BRB100x100 | BARB (HOSE NIPPLE) 1” x 1”NPT male (mounted to Pump’s inlet 2-1/2’’NPT), plain steel | - | 1 | ||
| PSH25-MP-5.00 | MOTOR PULLEY –5.00’’ O.D. | - | 1 | ||
| PSH25 -MP-8.00 | PUMP Pulley 8" O.D. "Apex" | - | |||
| PSH25-XV-600 | V-BELT “DAYCO-POWER-WEDGE” 60”LG. (center distance 20”) | - | 3 | ||
| PSD10-MB-0806 | SPLIT TAPER BUSHING 1-3/8” , for motor shaft | - | 1 | ||
| PSD10-PB0806 | SPLIT TAPER BUSHING 7/8 ” , for pump shaft | - | 1 | ||
|
|
BV200X200 | PLASTIC BALL VALVE 2”NPT x 2”NPT (mounted to Hydraulic 0053uction Strainer’s pipe 2”) | - | 1 | |
| BRB 100x100 | BARB (Hose Niple)1"x1" NPT Male | - | 1 | ||
|
|
PSD10-RV10 | PRESSURE REGULATING VALVE, capacity 3-10GPM, 500-1000PSI, port size 3/4”NPT ? Wanner Engineering | 3 | 1 | |
| PSD10-RV101 | PRESSURE REGULATING VALVE, capacity 3-20 GPM, | 5 | 1 | ||
| NV1/4 | MINI BALL VALVE 1/4” NPT Male x Female (Grainger) (Optional) | 7 | 1 | ||
| NV1-1007 | Street Elbow 1/4" | 1 |
