BLOWER PRODUCER 10 HP, 15 HP, 20HP- 3600 RPM
SKU Details

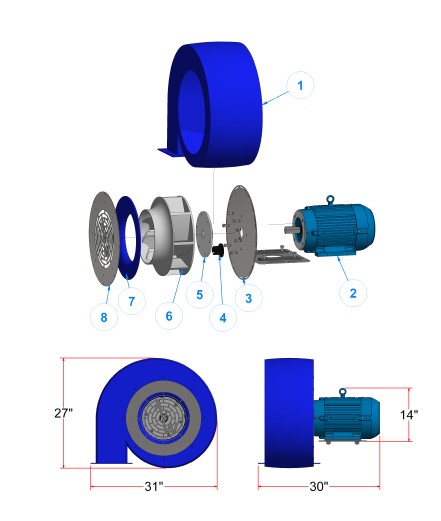

| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| BL0115DHAR | 6a -BLOWER HOUSING PLASTIC, RED | 1 | |||
| BL0115DHAB | BLOWER HOUSING PLASTIC, BLUE | 1 | |||
| BL0115DHAK | BLOWER HOUSING PLASTIC, BLACK | ||||
| BL0215DHA | 6b –BLOWER HOUSING, STAINLESS STEEL | ||||
| EM15-3600-215TC | ELECTRICAL MOTOR 15 HP 3600RPM (for Plastic and S. Steel Housing) | 2 | 1 | ||
|
|
EM10-3600-215TC | ELECTRICAL MOTOR 10 HP 3600RPM (for Plastic and S. Steel Housing) | 2.1 | 1 | |
|
|
BL1DK1 | MOUNTING PLATE (SQUARE STYLE) | 3 | 1 | |
|
|
UB-SQ050x1500 | U Bolts 1/2” to accept Rect. Tub. 2”x6” | - | 2 | |
| HN1216 | -w/ HEX NUT 1/2’’ | - | 4 | ||
| FW1216 | Flat Washer 1/2’’ | - | 4 | ||
| R-BL1DK | MOUNTING PLATE (RAINBOW STYLE) ASSEMBLY (Optional) | 3.1 | 1 | ||
| R-BL1DK2 | HALF COLLAR (Optional) | 3.2 | 2 | ||
|
|
UB-R050x300x1100 | 3’’Round U -Bolts 1/2” Size | 2 | ||
| BL1007DD | Blower BACK PLATE S. Steel, (only for Plastic Housing Blower) w/ | 4 | 1 |
|
|
| HHCS1420075 | Hex Head Cap Screws 1/4’’-20x3/4’’LG | 8 | |||
| FW34125 | Flat Washer 1/4’’ | 8 | |||
| P1 1-3/8” | SPLIT TAPER BUSHING 1-3/8 ” | 5 | 1 | ||
| BL1DK-180 | BLOWER SWIVEL MOUNT ( Optional ) | 1 | |||
| BL1-IMP-CP | IMPELLER CONNECTING PLATE | 6 | 1 | ||
| BL1-IMP | IMPELLER (Clockwise or Counterclockwise) (BL1-IMP-CCW or BL1-IMP-CW) | 7 | 1 | ||
| BL0115DCCR | PLASTIC INTAKE BLOWER CONE, RED | 8 | 1 | ||
| BL0115DCCB | PLASTIC INTAKE BLOWER CONE, BLUE | ||||
| BL0115DCCK | PLASTIC INTAKE BLOWER CONE, BLACK | ||||
|
|
BL0115DCA | BLOWER INTAKE SCREEN | 9 | 1 | |
| BL0115DCR | BLOWER INTAKE SCREEN w/CONE, RED | ||||
| BL0115DCB | BLOWER INTAKE SCREEN w/CONE, BLUE | ||||
| BL0115DCK | BLOWER INTAKE SCREEN w/CONE , BLACK | ||||
| BL0115D-NZSS | NOZZLE for 15/10 HP Blower ( STAINLESS STEEL) - w/Screw Fastener Sets 1/4’’-20x1’’lg ** | - | 1 | ||
| BL0115D-NZPLR | NOZZLE for 15/10 HP Blower ( PLASTIC), RED | - | 1 |
|
|
| BL01115-NZPLB | NOZZLE for 15/10 HP Blower ( PLASTIC), BLUE | - | |||
| BL01115-NZPLK | NOZZLE for 15/10 HP Blower ( PLASTIC), BLACK | - | |||
| BL0115D-NZ-2333 | ROUND NOZZLE ( Optional ) | - | |||
| BL0115D-TNZ-0910 | TELESCOPIC NOZZLE (Optional) | - | |||
| BL0115EN | ELEPHANT EAR” Blower Manifold w/Cones and Adapter (Optional) | - | |||
| BL1007ENL | Clamps for Cones | 6 | |||
| BL0115D-2NZ | COMMON DUAL BLOWER NOZZLE | - |
|
