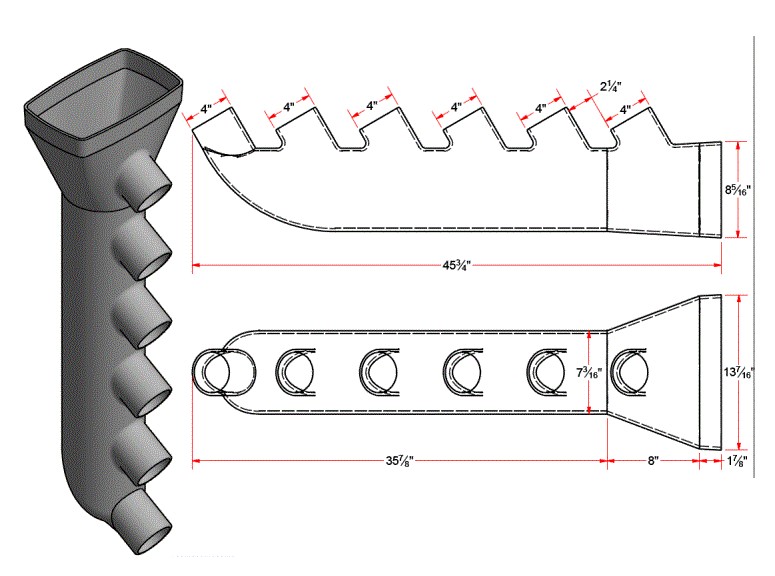

BLOWER w/ELEPHANT TRUNK MANIFOLD
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
|
|
EM10-3600-215TC | ELECTRICAL MOTOR 10 HP 3600RPM (for Plastic and S. Steel Housing) | 1.1 | 1 | |
| EM15-3600-215TC | ELECTRICAL MOTOR 15 HP 3600RPM (for Plastic and S. Steel Housing) | 1 | 1 | ||
| BL1-IMP | IMPELLER (Clockwise or Counterclockwise) (BL1-IMP-CCW or BL1-IMP-CW) | 2 | 1 | ||
| BL1-IMP-CP | IMPELLER CONNECTING PLATE | 2a | 1 | ||
| P1 1-3/8 | 3 | 1 | |||
| BL1DK-180 | BLOWER SWIVEL MOUNT ( Optional ) | 3a | 1 | ||
|
|
BL1DK1 | MOUNTING PLATE (SQUARE STYLE) | 4 | 1 | |
|
|
UB-SQ050x1500 | U Bolts 1/2” to accept Rect. Tub. 2”x6” | 2 | ||
| HN1216 | -w/ HEX NUT 1/2’’ | 4 | |||
| FW1216 | Flat Washer 1/2’’ | 4 | |||
| R-BL1DK | MOUNTING PLATE (RAINBOW STYLE) ASSEMBLY (Optional) | 5 | 1 | ||
| R-BL1DK2 | HALF COLLAR (Optional) | 5a | 2 | ||
|
|
UB-R050x300x1100 | 3’’Round U -Bolts 1/2” Size | - | 2 | |
| BL0115DHAR | 6a -BLOWER HOUSING PLASTIC, RED | 6a | 1 | ||
| BL0115DHAB | BLOWER HOUSING PLASTIC, BLUE | 1 | |||
| BL0115DHAK | BLOWER HOUSING PLASTIC, BLACK | ||||
| BL0215DHA | 6b –BLOWER HOUSING, STAINLESS STEEL | 6b | |||
| BL0115EN | ELEPHANT EAR” Blower Manifold w/Cones and Adapter (Optional) | ||||
| BL0115ENS | ADAPTER | 7 | 1 | ||
| PHSBO18-806050 | Self Tapping Screws 6” x 1/2” LG | 6 | |||
| SHCS1420100 | Socket Head Cap Screw | 10 | |||
| FW14062 | 1/4" N FLAT WASHER | 20 | |||
| HN1420 | Hex nut ¼ ”-20 | 10 | |||
| BL0115ENB | SIDE NOZZLE (,,ELEPHANT”) | 8 | 1 | ||
| PHS18-806100 | Self Tapping Screws 1/4” x 1” LG | 8 | |||
| BL0115ENC | CONES | 8.1 | 6 | ||
| BL0115ENL | Clamps | 6 |
