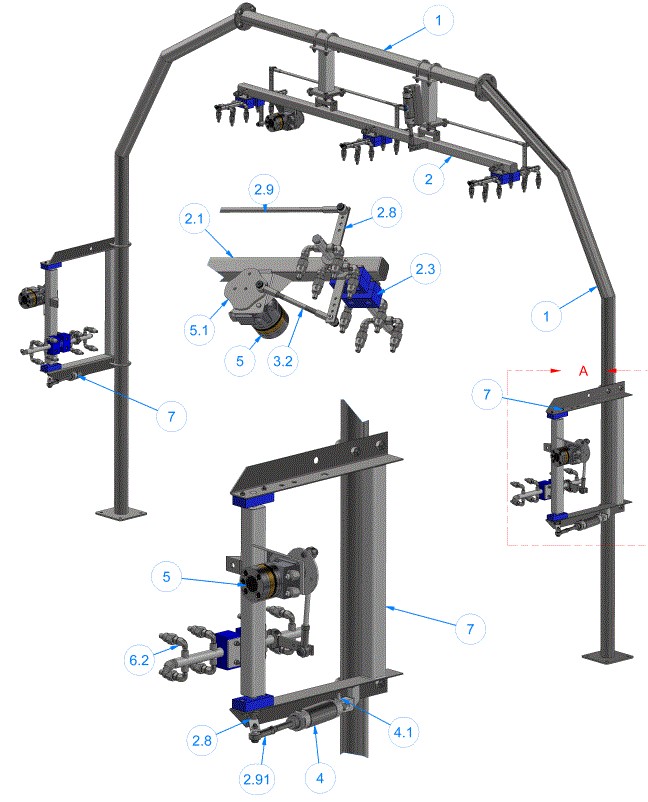

Part#	Description	Diagram Part #	Quantity
BJ1-2-20	BALL JOINT ROD END1/2-20	2.91
PO1C1	PIVOT UHMW BLOCK	-
PO1-CAM2	PIVOT CAM	2.8
PO1CBB-10	OSCILLATING ARM ASSEMBLY	3.2
PO1CBB-38	OSCILLATING ARM ASSEMBLY	2.9
PO1DM	MANIFOLD ASSEMBLY	6	1
SB2ABDA	OSCILLATING DISK	5	3
OT-AA0	Arch (Empty), Octaline	1	1
HHCS12131050	Hex Head Cap Screw 1/2”-13x1-1/2” LG	-	8
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.	-	16
SLW12	Split Lock Washer 1/2”	-	8
OT-PO1B	PIVOTING OSCILLATING TOP MANIFOLD	2
UB-R050x300x1100	3’’Round U -Bolts 1/2” Size	-
FW12	Flat Washer 1/2”I.D.x1-1/4”O.D.	-
HN1220	Hex Nut: 1/2"-20 SS)	-
R-PO1CH	PIVOTING BAR ASSEMBLY	2.1
RT1AAC	MOTOR MOUNT WELDED TO PIVOT	2.2
PO1C2	UHMW BLOCK MANIFOLD	2.3
MC1DDA	UHMW SINGLE SPLIT COLLAR 1’’ I.D.	2.4
NLN1213	Nylon Lock Nut ½”-13	-
HHCS1420150	BOLT	-
PO1C	PIVOT ASSEMBLY	2.5
OT-PO1CDBA	HOLDING BRACKET w/CYLINDER	2.55
OT-PO1CDBAA	PLATE for HOLDING BRACKET w/CYLINDER	2.6
OT-PO1CDBB	HOLDING BRACKET w/o CYLINDER	2.7
PO1CBB1-38	CAM	2.92
SB1ADB1	SHOULDER BOLT 1/2’’	-
FW38	WASHERS 3/8” and	-
HN1420	Hex nut ¼ ”-20	-
NLN3813	NYLON LOCK NUT	-
AC2x3	CYLINDER	-
JN1220	JAM NUT	-
HN12	Hex Nut 1/2”	-
PO1DMA	WATER MANIFOLD	6.1	1
EL90-S-304025	90° Street ELBOW 1/4” NPT, 8/PER SIDE , Stainless Steel	6.2	8
1-4-MEG-0504	NOZZLE 1/4’’ MEG 0504	6.3	8
EL90000JIC050x050MT	ELBOW– 1/2JICx1/2NPT	6.4	1
PLUGPP050	PLUG 1/2”, (1/PER MANIFOLD)	6.5	1
OT-PO1D/OT-PO1E	PIVOTING OSCILLATOR SIDE MANIFOLD[DRIVER/PASSENGER]	7
OT-PO1DBA	MOUNTING BRACKET SIDE MANIFOLD	7.2
OT-PO1DD-20	EXTENSION ARMS 2”x2”x20”LG	7.3
