MINI MITTER CURTAIN, Model MM5
The AVW Stainless Steel Mini Mitter Curtain has a unique basket motion that provides aggressive motion on the vehicle surface not just at the top of the basket.
It is constructed of high grade stainless steel. telescopic height adjustment allows for easy installation even in settings with limited or obstructed heights. There are no bearings to grease on this unit.
Product Features:
- Stainless steel
- Circular motion that simulates that of hand washing
- Bearing less design
- Hydraulic drive
- Circular motion
- Adjustable height
- Low maintenance
- Stainless steel

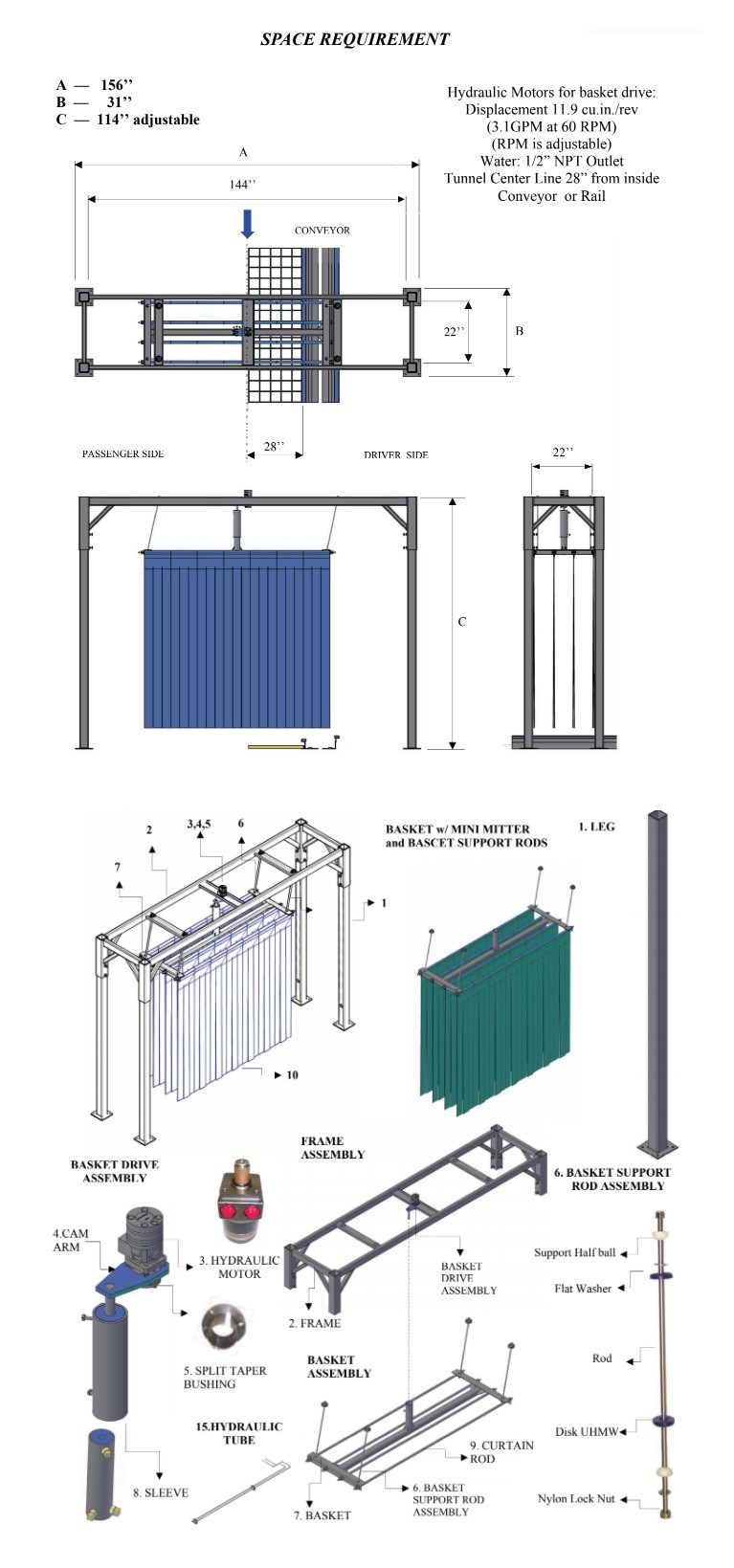

SKU Details
| Sku Images | Part# | Diagram Part # | Quantity | |
|---|---|---|---|---|
| MC1A | 1 | 4 | ||
| MM5B-7 | - | 1 | ||
| MM5BA-7 | 2 | 1 | ||
| SQHS1213150 | - | 16 | ||
| HHCS3816200 | - | 8 | ||
| MC2BB-1104 | - | 1 | ||
|
|
WA1KM | 3 | 1 | |
| EL90STL050JIC050NPTF | - | 2 | ||
|
|
MC2BBA-P1-0615 | 4 | 1 | |
|
|
STB-P1X100 | 5 | 1 | |
| HHCS3816075 | - | 4 | ||
|
|
MC1C | 6 | 4 | |
| MC1C1-102307 | - | 4 | ||
|
|
MC1C2 | - | 8 | |
|
|
MC1C3 | - | 8 | |
| FW12125 | - | 8 | ||
| NLN1213 | - | 8 | ||
| MM5D-7 | - | 1 | ||
| MM4DA-7 | 7 | 1 | ||
|
|
MC1DB | - | 1 | |
|
|
MC1DB1 | 8 | 1 | |
|
|
MC1DB2 | - | 1 | |
| SQHS3816075 | - | 3 | ||
| HN3816 | - | 3 | ||
|
|
MC2DC | 9 | 4 | |
|
|
MC2DCA | - | 4 | |
| MC1DC2-3-4x2x1-8 | - | 8 | ||
| PLHN3410 | - | 16 | ||
| MC1E | 10 | 36 | ||
|
|
WA1LA | - | 2 | |
|
|
WA1LAA | - | 2 | |
| SAE140109E-8 | - | 2 | ||
|
|
BRBPP050x050 | - | 2 | |
| NZ1-4 | - | 10 | ||
| PPP3-4 | - | 4 | ||
| - | - | 4 | ||
| TUBE304WLD20GA050 | - | 4 | ||
| SAE010115-8 | - | 8 | ||
| SAE070110-8 | - | 8 | ||
| DMP1-2 | - | 10 | ||
| MM5L | - | - |
